Preventive Maintenance - XPM

5 Revision Date: October 2004

PREVENTIVE MAINTENANCE PROCEDURES

Procedure 1: Lubricate Transport Conveyor Chain

(Interval - 2 weeks)

NOTE: This procedure is automatic on Ovens equipped with the Computer Controlled Chain Lube option

On systems equipped with the Edge/Rail conveyor system, check the conveyor transport chain for lubrication.

The chain should be lubricated if it looks dry or the chain links do not move freely over the sprockets, Use

“Darmex” 773ND lubricant or equivalent. Remove the chain guards at the offload end of the system; apply the

lubricant with a small brush at the opening of the chain plates. Avoid getting lubricant on the product transport

pins. Apply the lubricant sparingly, do not soak the chain or apply it such quantities where the lubricant drips off.

Make sure the factory exhaust system is on and operating properly, as you may notice some fumes when the

heaters are turned on.

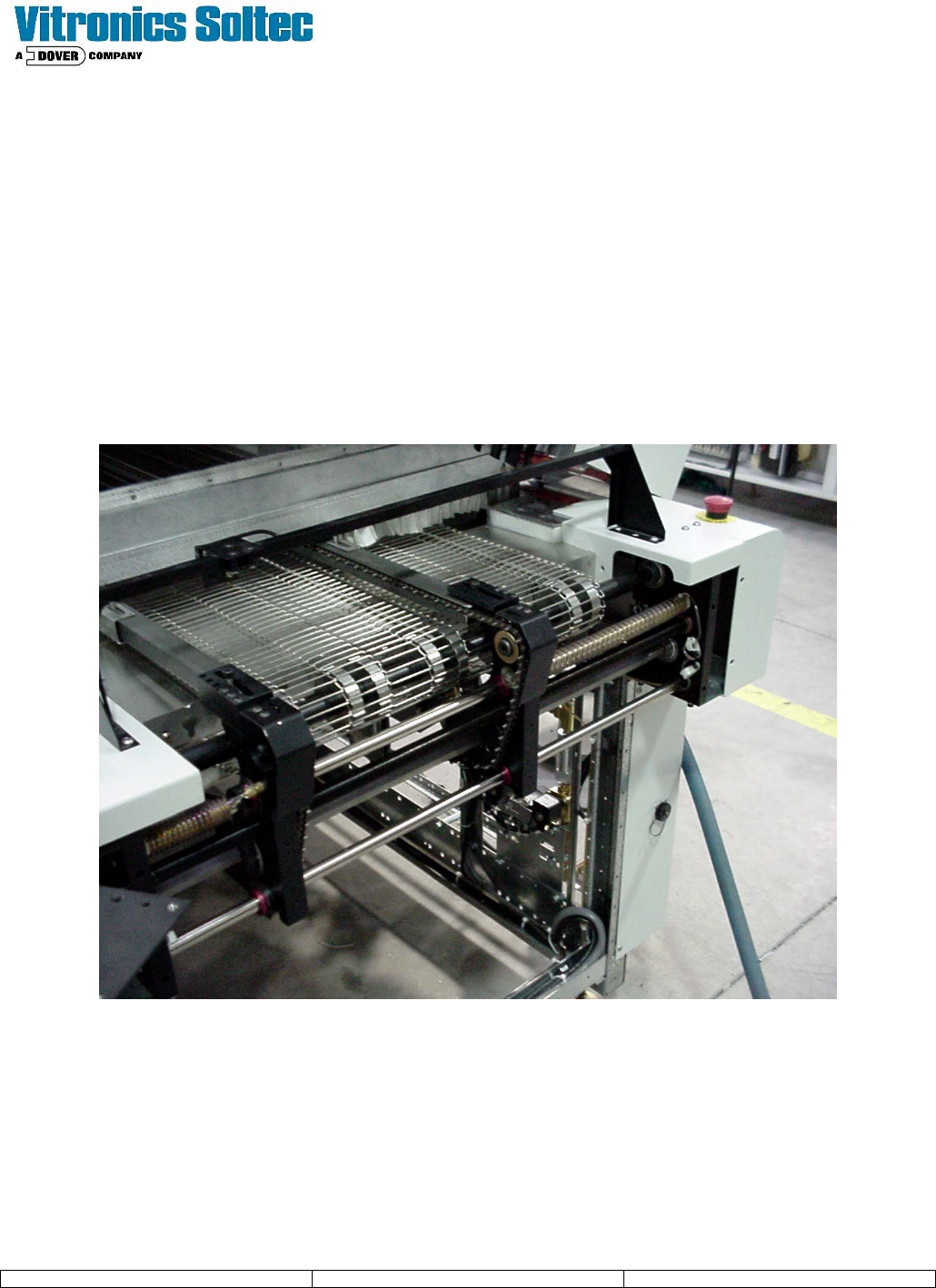

Remove Chain Guards

Preventive Maintenance - XPM

6 Revision Date: October 2004

Procedure 2: Inspect and Replace the Exhaust Stack Filter

Interval - 2 weeks

All surfaces inside of the oven may be hot. This can include the

exhaust filter chamber and filters. Make sure that the system is

safe to touch before attempting this procedure

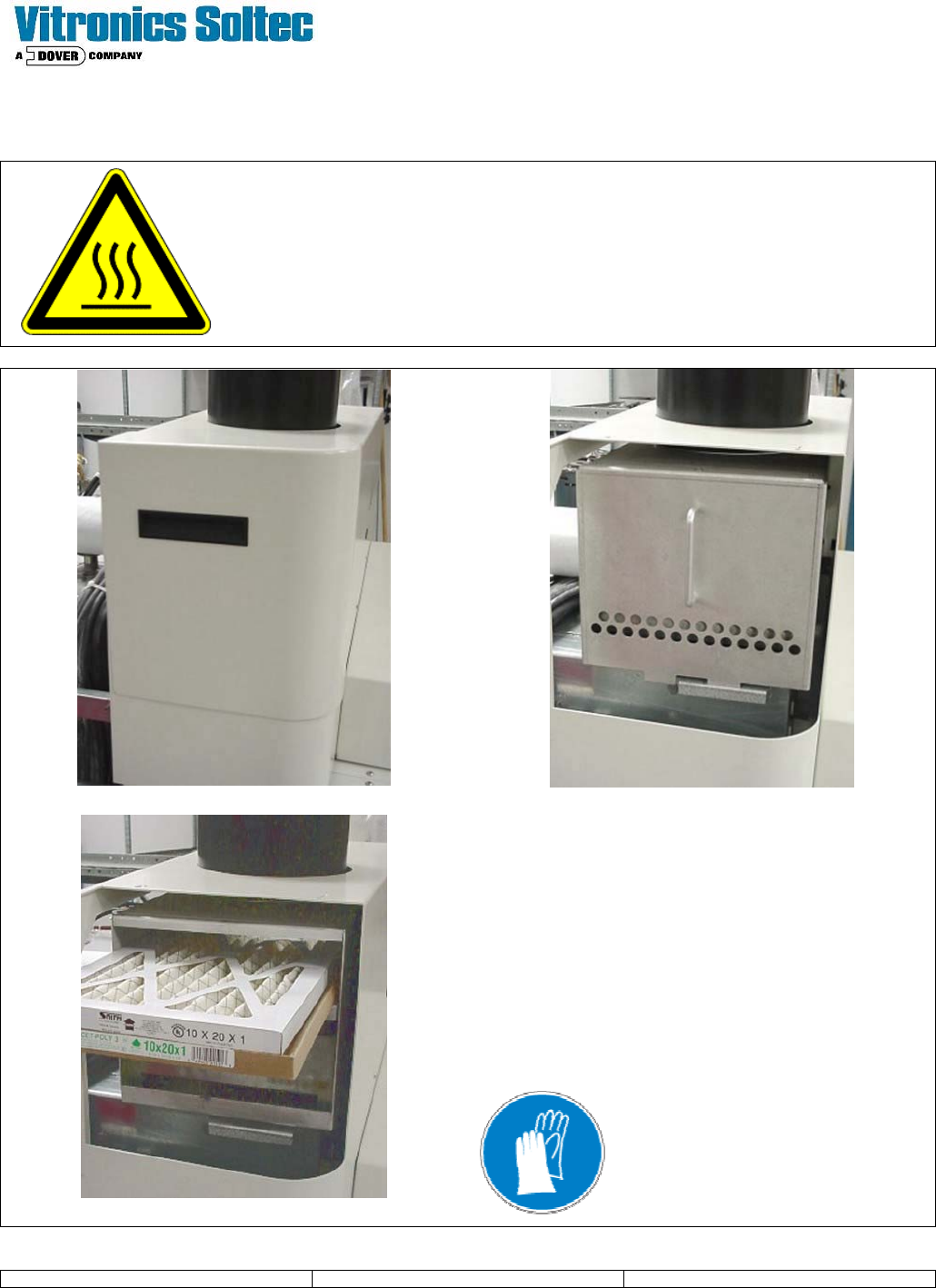

Figure 1

Figure 2

1. Lift up on handle to remove rear access panel (this

cover may be on either end depending on oven

configuration)

2. Lift up to remove inner filter cover.

3. Slide stack filters out and replace. Make sure that

the arrows printed on edge of filter are pointing up

in the direction of airflow.

Part # 1481601 Filter 1 x 10 x 20 Polyester

Part # 1481701 Filter 1 x 10 x 20 Sep Pleated

Figure 3

Caution: Filters may contain

hazardous materials. Use

appropriate personal protective

equipment and dispose of in

accordance with local regulations.

Preventive Maintenance - XPM

7 Revision Date: October 2004

Procedure 3: PolarCool™ And Controlled Cooling Heat Exchanger Cleaning

(Interval - 2 weeks)

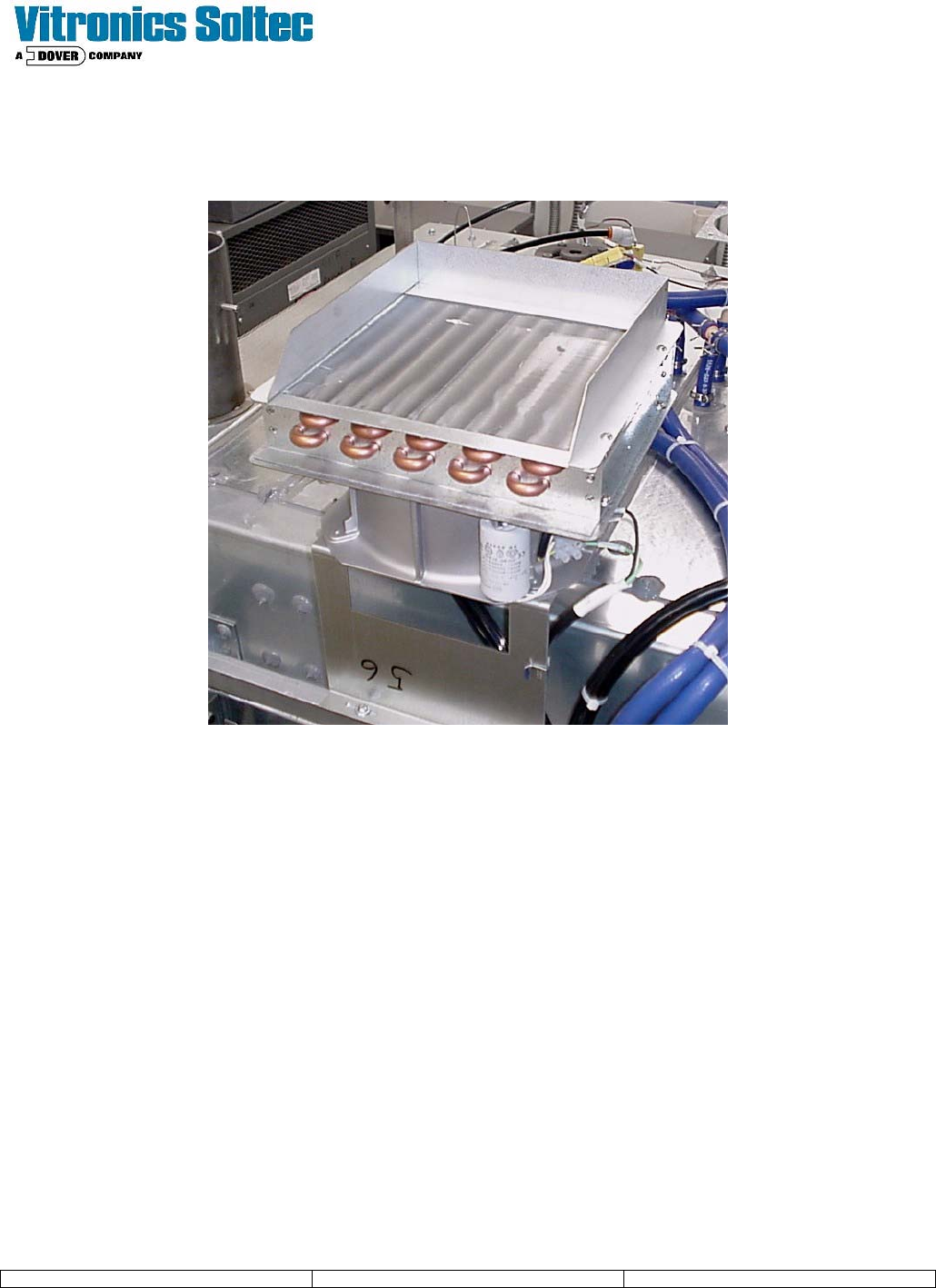

From the back of the system, remove the sheet metal service panels to expose the PolarCool™ or Controlled

Cooling units. Inspect and if necessary vacuum the heat exchanger and coils to maintain adequate airflow.
