MODEL TCM-3000Z 981 1-001 12- 2 Key No. PART No. PART NAME Q'ty REMARKS 1 630 041 9498 COVER 1 628R--03B-117 2 630 041 9504 COVER 1 628R--03B-118 3 630 058 1645 COVER(ML) 1 628R--03B-119 4 630 058 1638 COVER(MR ) 1 …
MODEL TCM-3000Z
9811-001
カバー部 COVER SECTION

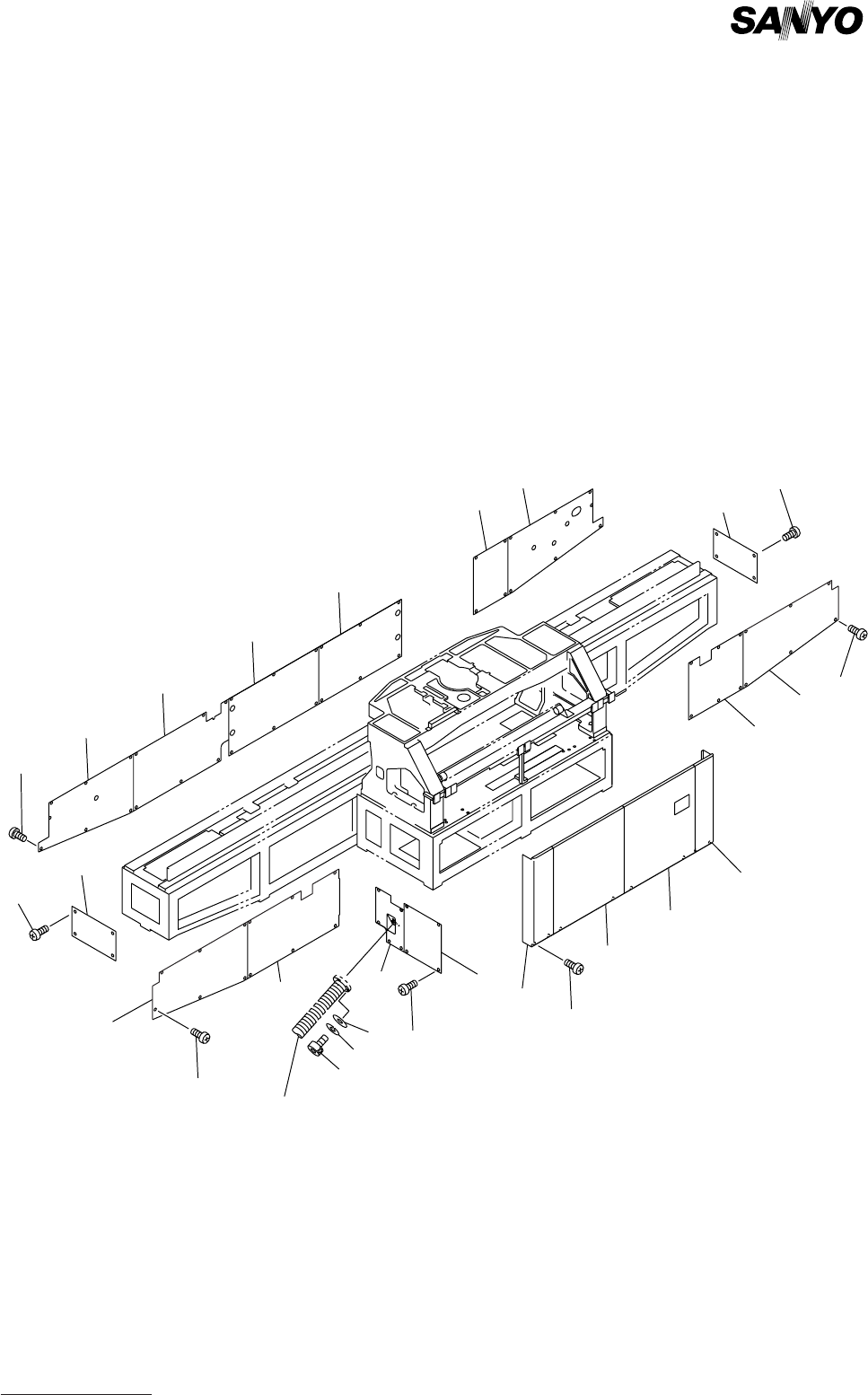

Fig.12-2 本体カバー Body Cover
1
2
3
4
13
88
12
77
21
22
23
24
2727
2626
11
10
28
TCM-3000E
14
14
5
9
41
42
43
30
29
29
30
See Fig.1-2
Key No.58
MODEL TCM-3000Z
9811-001
12- 2
Key No. PART No. PART NAME Q'ty REMARKS
1 630 041 9498 COVER 1 628R--03B-117
2 630 041 9504 COVER 1 628R--03B-118
3 630 058 1645 COVER(ML) 1 628R--03B-119
4 630 058 1638 COVER(MR) 1 628R--03B-120
5 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
7 630 058 1614 COVER(RFR) 1 628R--03B-123
8 630 058 1621 COVER(RFR) 1 628R--03B-122
9 411 113 9109 SCR TRS 5X10 11 M5X10 TRS
10 630 058 2093 COVER(DUCT) 1 628R--03B-133
11 630 051 8078 COVER(FSL) 1 628R--03B-126
12 630 058 1607 COVER(RFL) 1 628R--03B-124
13 630 058 1591 COVER(RFL) 1 628R--03B-125
14 411 113 9109 SCR TRS 5X10 21 M5X10 TRS
21 630 060 4399 COVER(RBL) 1 628R--03B-127
22 630 058 1331 COVER(RBL) 1 628R--03B-128
23 630 058 1348 COVER(RBC) 1 628R--03B-129
24 630 058 1300 COVER(RBC) 1 628R--03B-130
26 630 058 1355 COVER(RBR) 1 628R--03B-131
27 630 060 4405 COVER(RBR) 1 628R--03B-132
28 411 113 9109 SCR TRS 5X10 38 M5X10 TRS
29 630 058 1584 COVER(RS) 2 628R--03B-134
30 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
41 411 141 4305 WASHER V 6X12.5X1.6 3 FW6
42 411 141 3001 WASHER SPR 6 3 SW6
43 630 000 7893 BOLT,HEX-SCT 3 M6X20
NOTE
MODEL TCM-3000Z
9811-001
カバー部 COVER SECTION

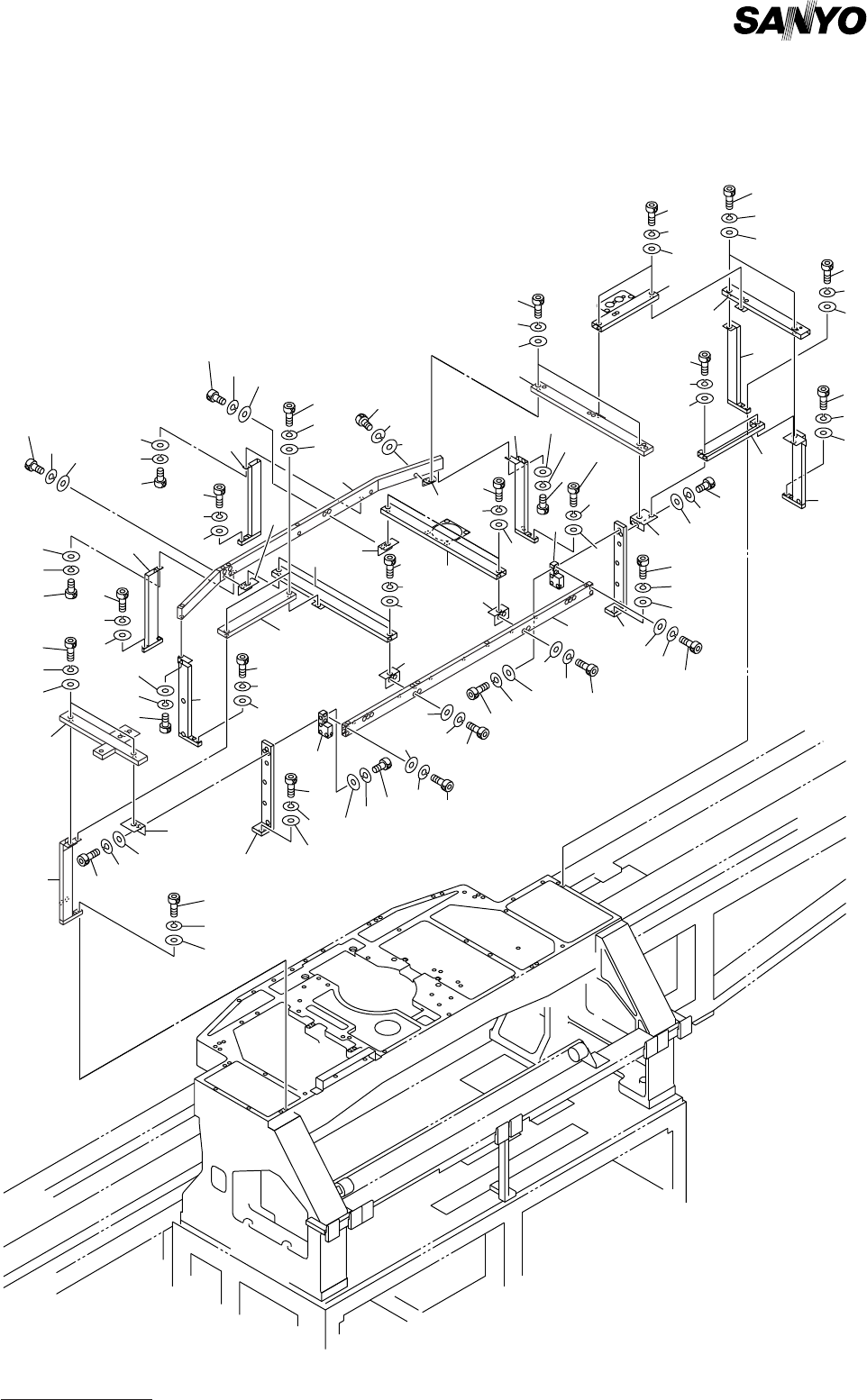

Fig.12-3 上部フレーム Upper Frame
1
2
3
4
5
6
11
12
13
10
7
8
9
63
64
71
72
73
70
51
68
59
69
16
17
18
19
15
30
31
26
55
35
43
47
39
TCM-3000Z
1
2
3
4
9
8
7
65
66
67
65
66
67
52
53
54
32
33
34
71
72
73
26
26
26
36
37
38
23
24
25
23
24
25
23
24
25
23
24
25
11
12
13
27
28
29
27
28
29
32
33
34
20
21
22
71
72
73
60
61
62
20
21
22
20
21
22
46
45
44
20
21
22
40
41
42
48
49
50
56
57
58
27
28
29-1
29-1
27
28
