(1) Grease • DAPHNE EPONEX GREASE No. 1 • NEW MOL YNOC GREASE No. 1 Same T ypes of Lubricants • DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN) or its equivalent T able 4A1 Grease Names Makers Alvania Grease No. 1 SHELL OIL …
1.2 Preparation for Maintenance
1.2.1 Preparation for Cleaning
Prepare the following items for cleaning.
• Brush
Use a brush whose bristles do not come off if possible.
• Cotton Swab
Use a normal cotton swab on the market.
• Rag
Use a rag (cotton, etc.) which does not produce as less waste thread
as possible. Otherwise, the machine will break down due to the re-
maining waste thread.
A clean rag is also required, depending on the spots to be cleaned.
• Oiled Rag
Use a rag (cotton, etc.) which does not produce as less waste thread
as possible. Otherwise, the machine will break down due to the re-
maining waste thread.
Note: Do not apply too much oil to the rag. The oil should not be
mixed with another type.
• Air Gun
Do not use the air gun for any spots other than the specified ones.
If dirt and dust are dispersed, they adhere to various sensors and
moving parts, causing the machine to break down.
• Vacuum Cleaner
If the suction hole of the vacuum cleaner is changed to a smaller one,
some spots can be cleaned more easily.
• Vacuum Tweezers
Use a normal vacuum tweezers on the market.
1.2.2 Preparation for Lubrication
Prepare the specified grease and items for lubrication.
• Specified Grease
Refer to "(1) Grease" for details.
Before lubrication, wipe off the old grease. Otherwise, the effect of
grease will decrease.
• Specified Items for Lubrication
Refer to "(2) Brush", "(3) Vinyl Gloves", "(4) Grease Applicator", and
"(5) Hand Grease Gun KH120" for details.
1.2 Preparation for Maintenance
01 12-002 1-2 AHB01ETRP

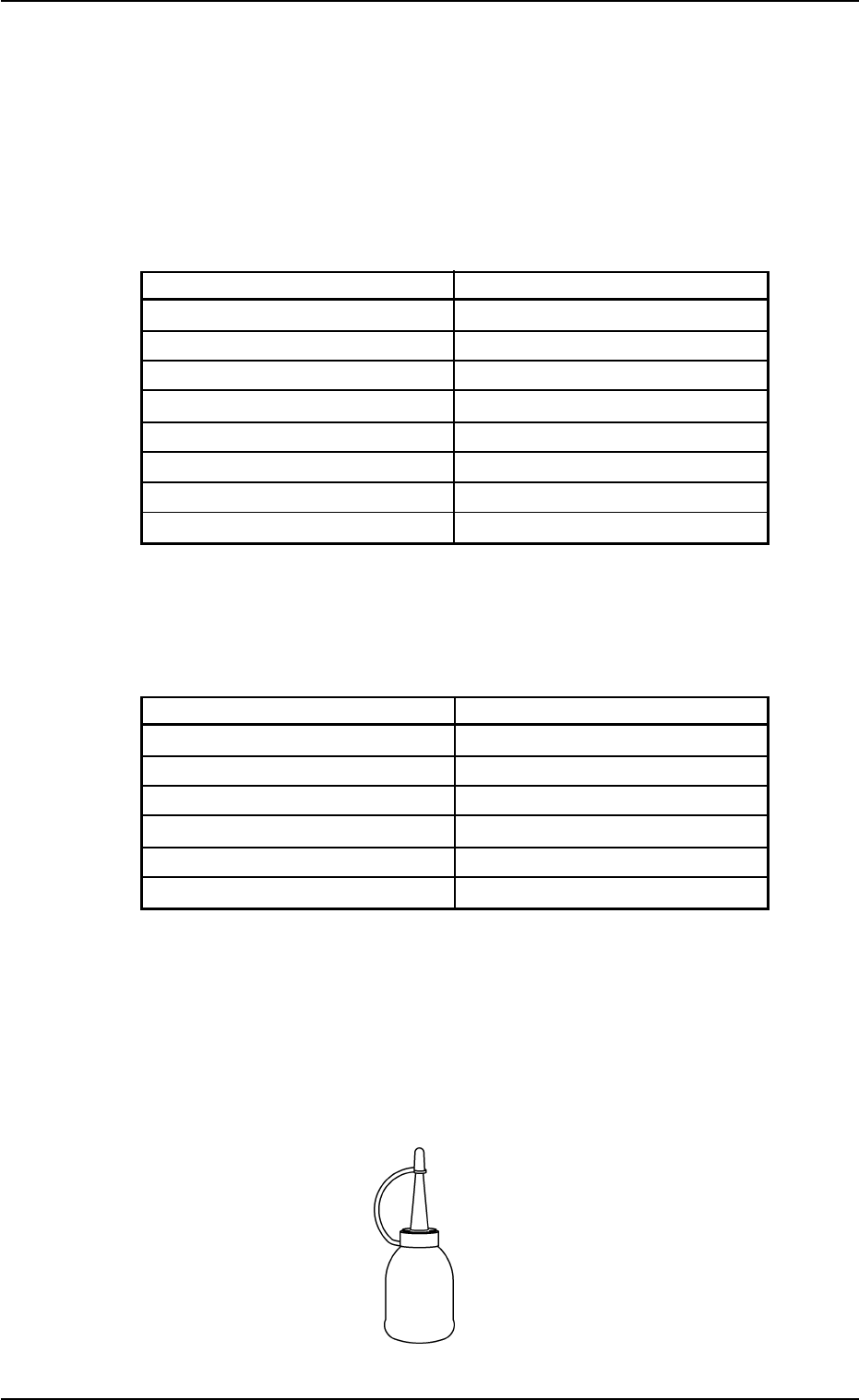

(1) Grease
• DAPHNE EPONEX GREASE No. 1
• NEW MOLYNOC GREASE No. 1
Same Types of Lubricants
• DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN) or its
equivalent
Table 4A1
Grease Names Makers
Alvania Grease No. 1 SHELL OIL
Multinoc Grease No. 1 Nippon Oil Corporation
Jomo Lisonix Grease No. 1 JAPAN ENERGY
Dynamax No. 1 COSMO OIL
Lithtan No. 1 ESSO OIL
MP Grease No. 1 KYGNUS OIL
Gemico MP No. 1 TonenGeneral Sekiyu K.K.
Multemp PS-1 KYODOH YUSHI
• NEW MOLYNOC GREASE No. 1 (Nippon Oil Corporation) or its
equivalent
Table 4A2
Grease Names Makers
Daphne M1 IDEMITSU KOSAN
Jomo Lisonix Grease M No .1 JAPAN ENERGY
Molybden No. 1 COSMO OIL
Beacon Q2 ESSO OIL
Gemico MD2 TonenGeneral Sekiyu K.K.
M-5 Grease 1 KYGNUS OIL
(2) Brush
Use a brush whose bristles do not come off if possible.
(3) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(4) Grease Applicator
Use a normal grease applicator on the market.
Fig. 4A3
1.2 Preparation for Maintenance
0308-003 1-3 AHB01ETRP
(5) Hand Grease Gun
Standard: KH-120
Part No.: 630 062 2577
Maker: Yamada Yuki
(a) Use this gun to apply only DAPHNE EPONEX GREASE
No. 1.
(b) Please purchase a hand gun or an attachment when-
ever necessary.
Consult our marketing department about details.
(c) Refer to the attached instruction manual for the de-
tailed information on how to use a hand grease gun or
an attachment.
Fig. 4A4 Hand Grease Gun KH-120
Attachment for Hand Grease Gun KH-120 Table 4A3
Standard Shape Part No. Remarks
S Type 1 0 1 630 061 1977 SHC
N Type 1 0 1 630 061 7467 THK
P Type 1 0 1 630 061 7474 THK
U Type 1 0 1 630 061 7443 THK
1.2 Preparation for Maintenance
Grease and Required Number
of Attachments
For DAPHNE
EPONEX
GREASE No. 1
For NEW
MOLYNOC
GREASE No. 1
Total
Frequency
in Use
0206-003 1-4 AHB01ETRP
