1. 3 Maintenance Spots 1.3.1 General View Refer to "1.3.2" and the subsequent items for details. • Before performing maintenance work, turn off the power and air sources and lock the power breaker using the pad…
(5) Hand Grease Gun
Standard: KH-120
Part No.: 630 062 2577
Maker: Yamada Yuki
(a) Use this gun to apply only DAPHNE EPONEX GREASE
No. 1.
(b) Please purchase a hand gun or an attachment when-
ever necessary.
Consult our marketing department about details.
(c) Refer to the attached instruction manual for the de-
tailed information on how to use a hand grease gun or
an attachment.

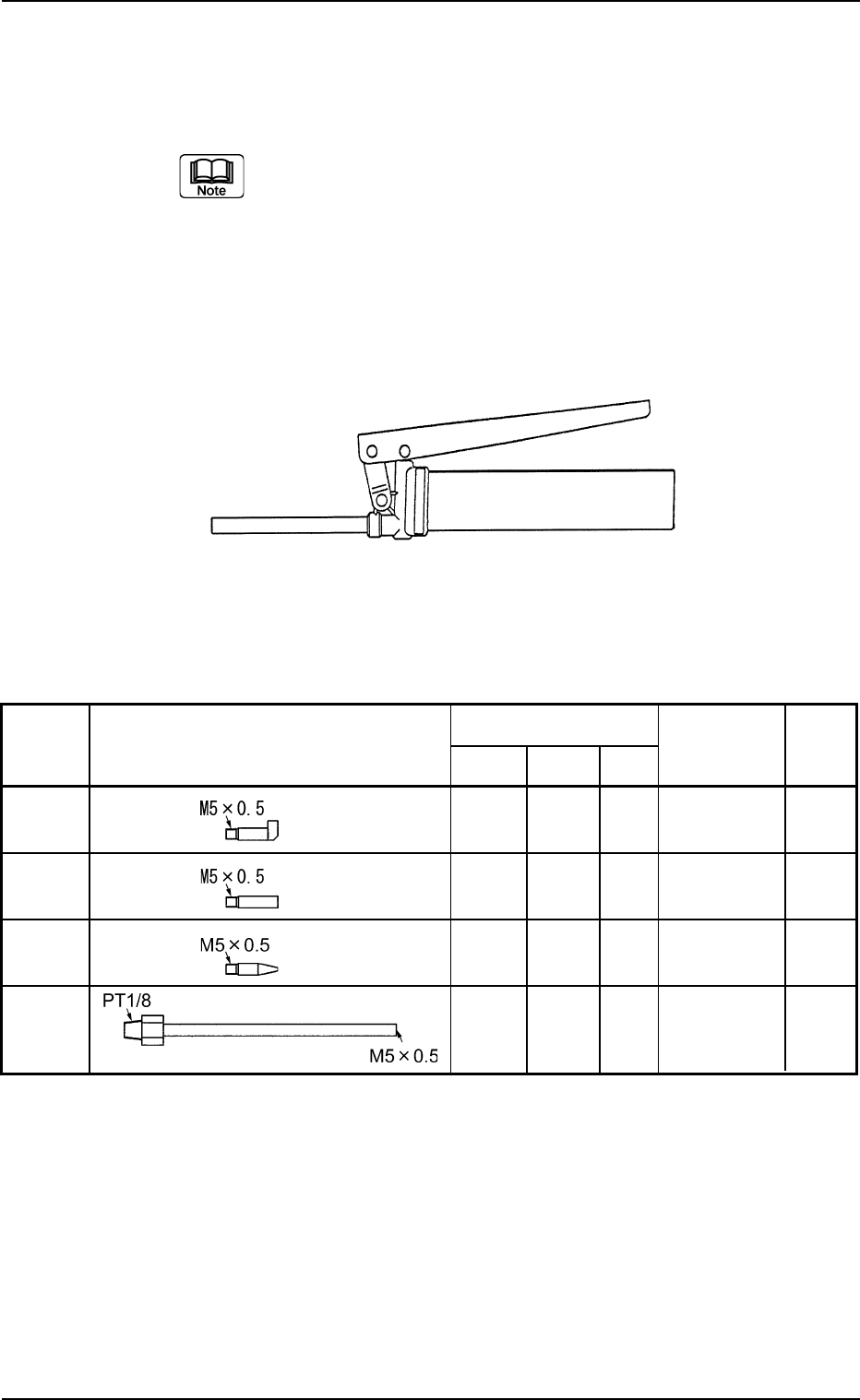

Fig. 4A4 Hand Grease Gun KH-120
Attachment for Hand Grease Gun KH-120 Table 4A3
Standard Shape Part No. Remarks
S Type 1 0 1 630 061 1977 SHC
N Type 1 0 1 630 061 7467 THK
P Type 1 0 1 630 061 7474 THK
U Type 1 0 1 630 061 7443 THK
1.2 Preparation for Maintenance
Grease and Required Number
of Attachments
For DAPHNE
EPONEX
GREASE No. 1
For NEW
MOLYNOC
GREASE No. 1
Total
Frequency
in Use
0206-003 1-4 AHB01ETRP
1.3 Maintenance Spots
1.3.1 General View
Refer to "1.3.2" and the subsequent items for details.
• Before performing maintenance work, turn off the
power and air sources and lock the power breaker
using the padlock.
• Designate a person who can have charge of the
padlock key.
• Any operations with a cover(s) being removed are
included.
After the maintenance work, be sure to attach the
cover.
• As for the options such as a multi-layer tray feeder,
refer to each instruction manual of the specially
specified devices for the maintenance.

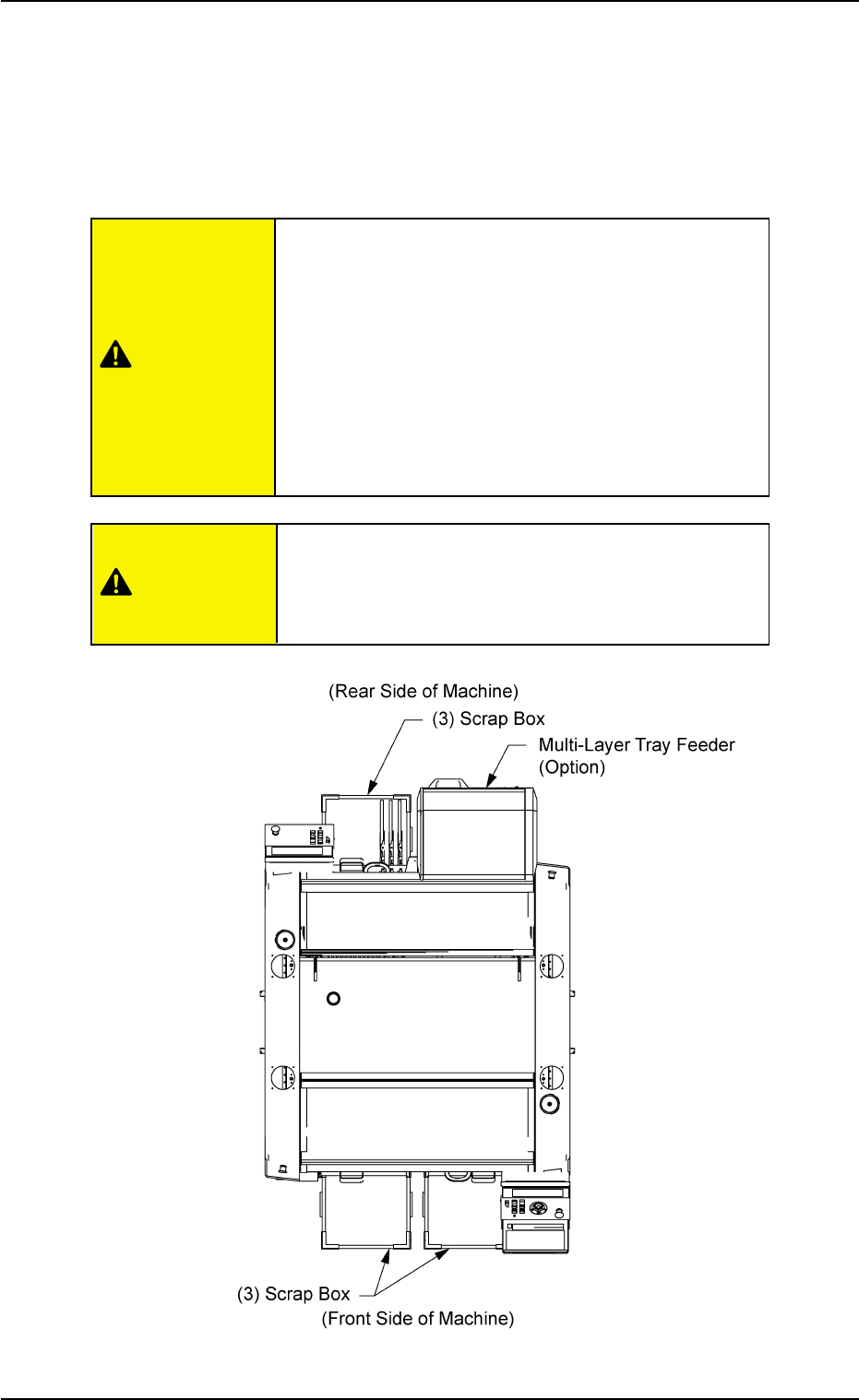

Fig. 4A5 Top View of Machine
1.3 Maintenance Spots
0308-004 1-5 AHB01ETRP
CAUTION
CAUTION
Fig. 4A6 Front View of Machine
1.3 Maintenance Spots
0206-003 1-6 AHB01ETRP
