4OM-1075-002 - 第23页

Fig. 4A12 0206-003 1-10 AHB01ETRP 1.3 Maintenance Spots

1.3.3 Inspection, Cleaning, and Lubrication Spots

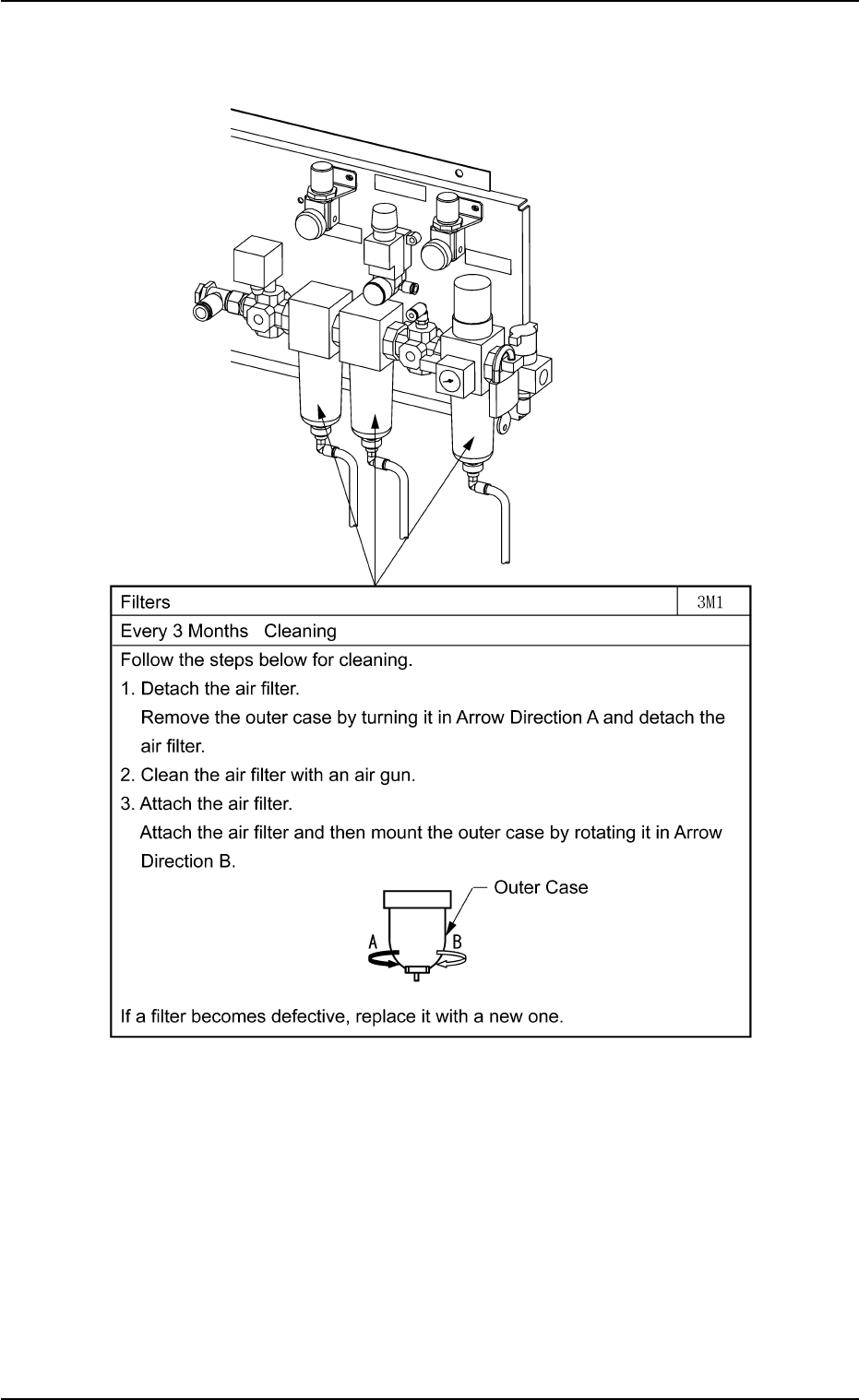

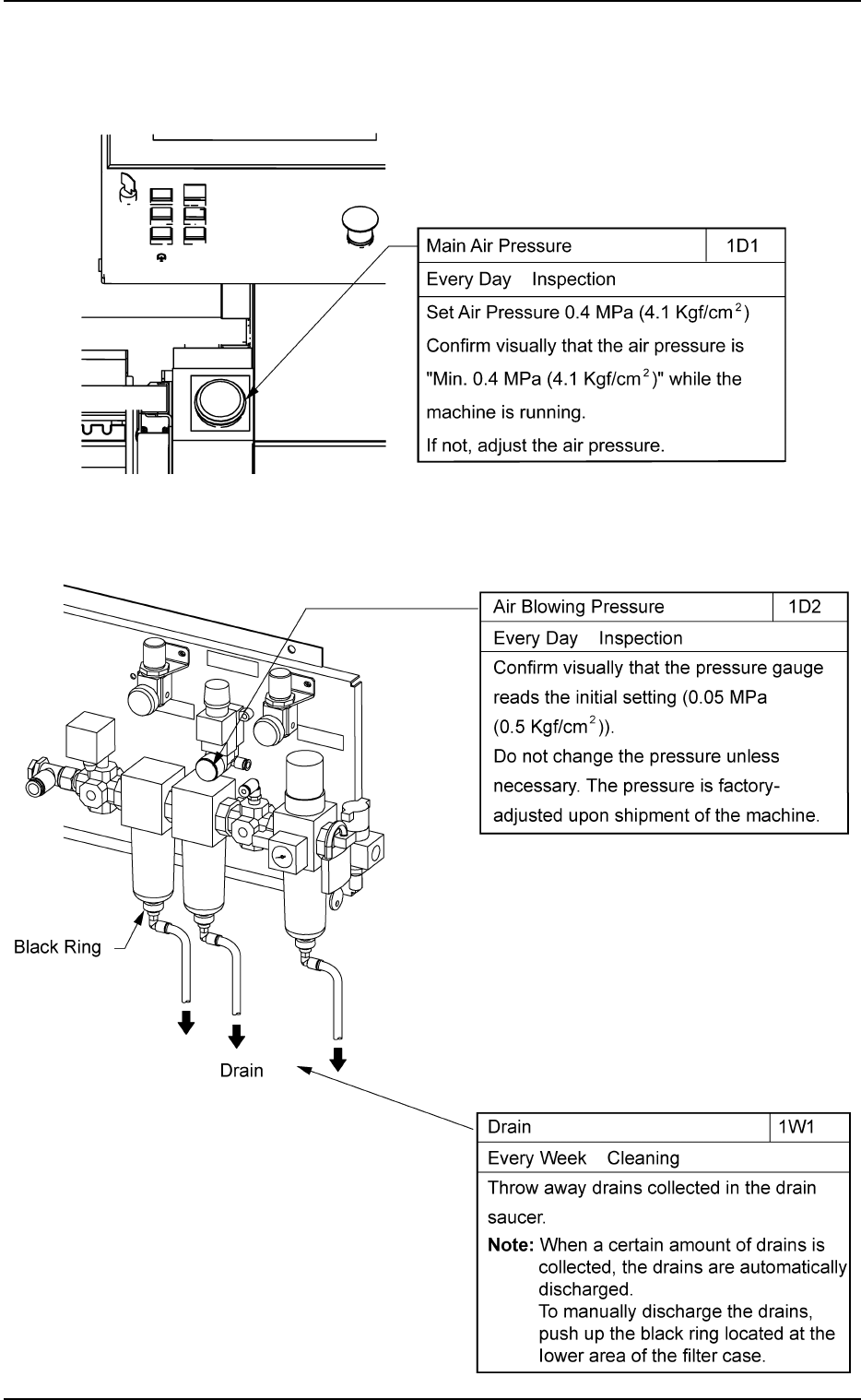

(1) Air Source

Fig. 4A10

1.3 Maintenance Spots

0206-003 1-9 AHB01ETRP

Fig. 4A11

Fig. 4A12

0206-003 1-10

AHB01ETRP

1.3 Maintenance Spots

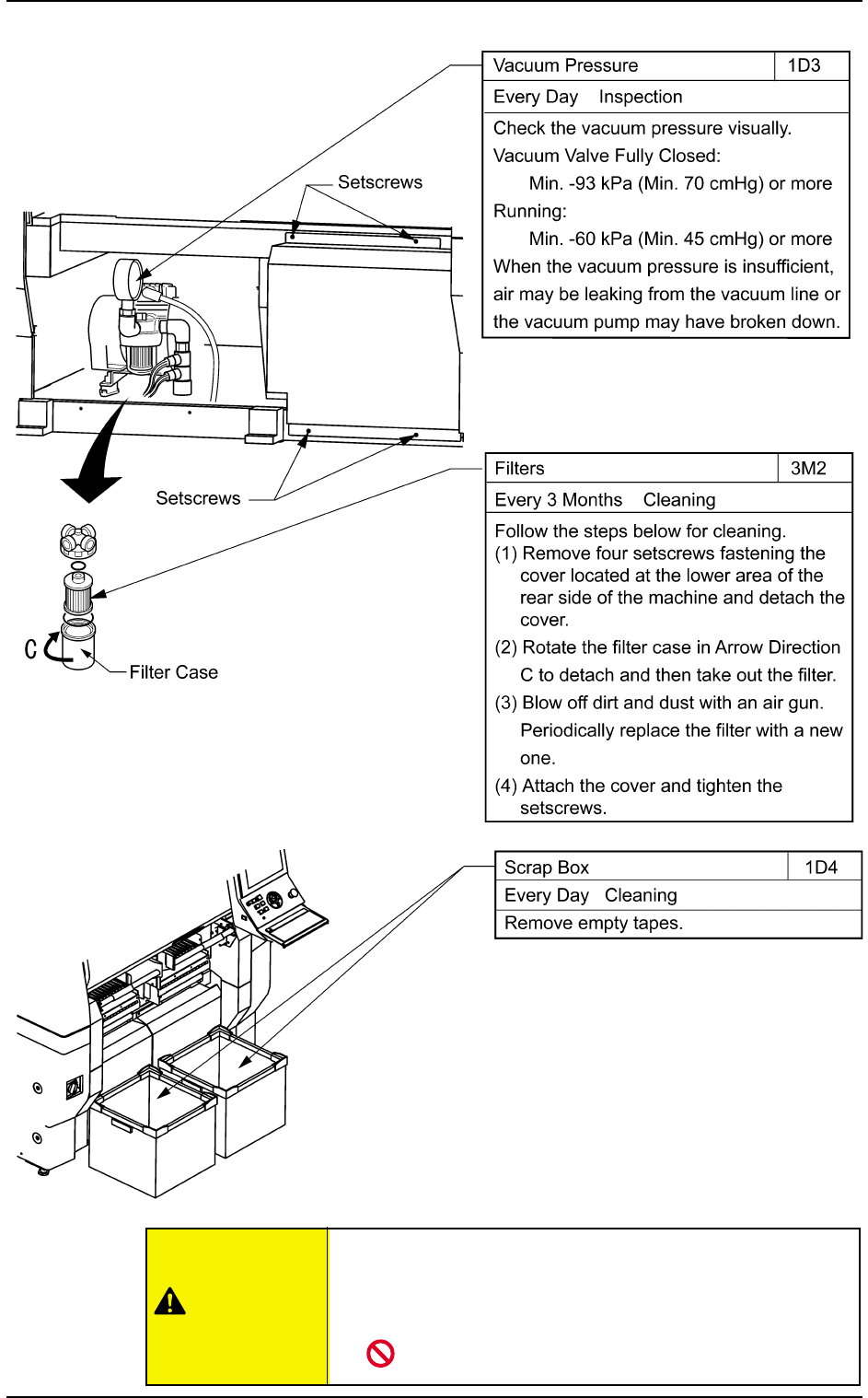

(2) Vacuum System

Fig. 4A13

(3) Scrap Box

Fig. 4A14

1.3 Maintenance Spots

• Do not step on the scrap box.

Otherwise, an injury will result due to breakage of the

scrap box.

0308-004 1-11

AHB01ETRP

CAUTION
