(5) Feeder Base Fig. 4A16 Fig. 4A17 Fiducial Mark 1W2 Every Week Cleaning Clean the upper surface of the fiducial mark with a rag. (2 places × 3 feeder bases) 0206-002 1-13 AHB01ETRP 1.3 Maintenance Spots

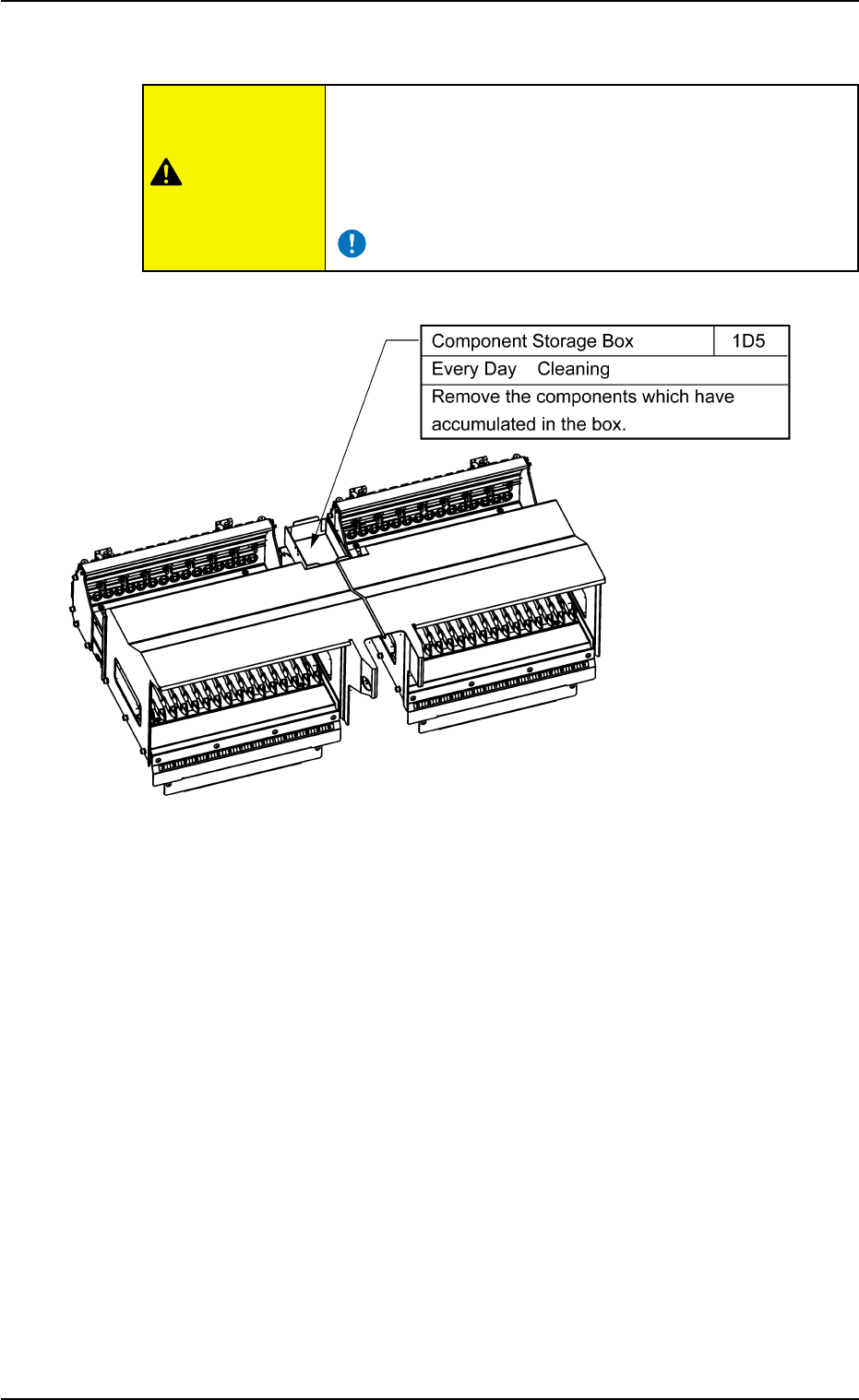

(4) Component Storage Box

Fig. 4A15

1.3 Maintenance Spots

0308-004 1-12 AHB01ETRP

Before removing the accumulated components from the

box, be sure to connect a grounding cable (used to make

a connection to ground) to your body. Otherwise, some

components may be damaged by static electricity.

CAUTION

(5) Feeder Base

Fig. 4A16

Fig. 4A17

Fiducial Mark 1W2

Every Week Cleaning

Clean the upper surface of the fiducial

mark with a rag.

(2 places × 3 feeder bases)

0206-002 1-13 AHB01ETRP

1.3 Maintenance Spots

Fig. 4A18

1.3 Maintenance Spots

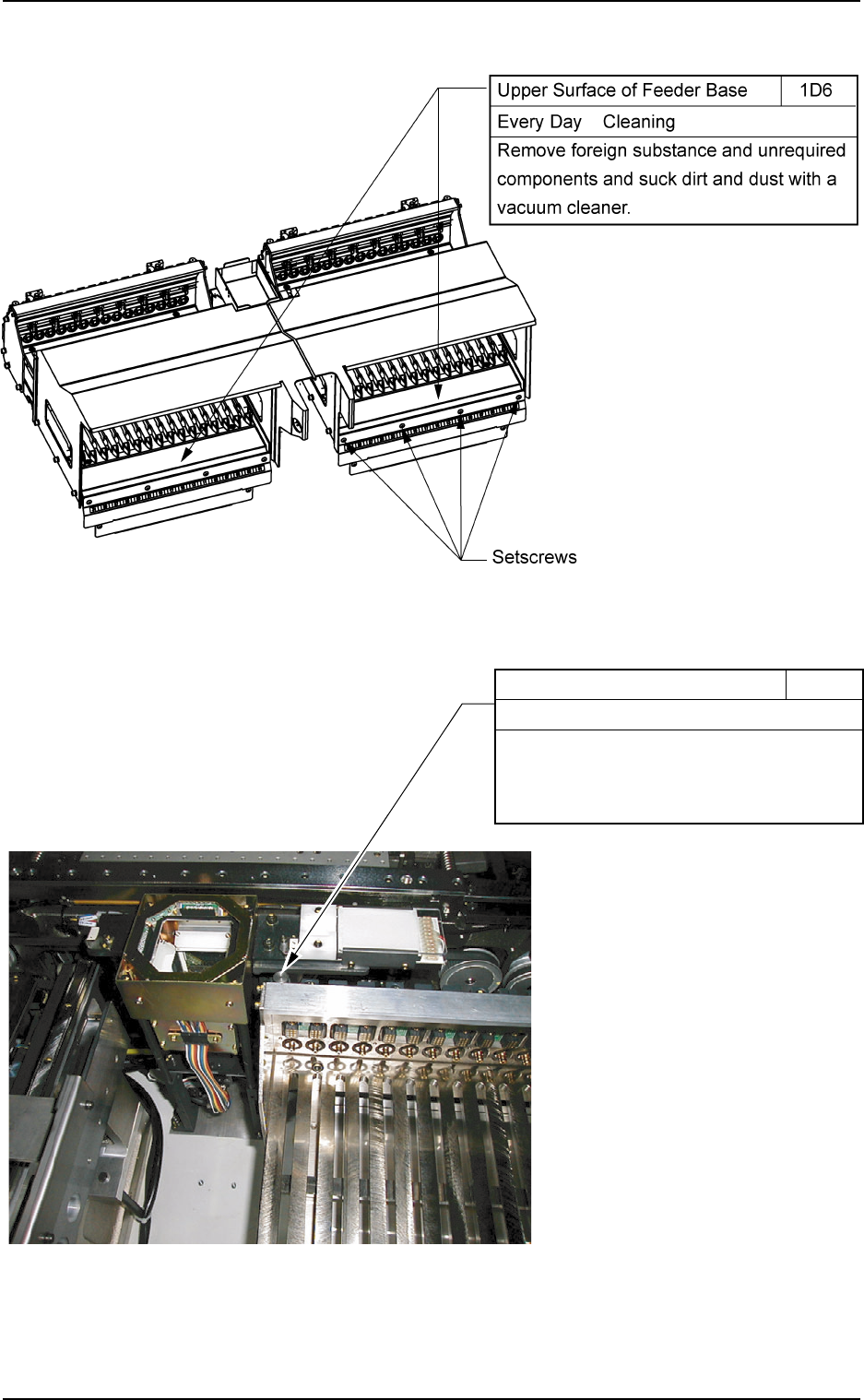

Tray for Falling Objects 1M1

Every Month Cleaning

Follow the steps below for cleaning.

1. Remove the setscrews (4 pcs.).

2. Draw out the tray for falling objects.

3. Remove any foreign substances and

unrequired parts and suck the dirt and

dust with a vacuum cleaner.

0206-003 1-14 AHB01ETRP
