Error ID Item Description
02 01 0 00000 Edge (Rectangle) -----
02 02 0 00000 Corner -----
02 03 0 00000 Corner -----
02 04 0 00000 Edge (General Purpose) -----
02 05 0 00000 Edge (General Purpose) -----
02 06 0 00000 Center of Gravity (Angle Detected) -----
02 07 0 00000 Center of Gravity (Angle Detected) -----
02 08 0 00000 Center of Gravity -----
(Angle Not Detected)
02 09 0 00000 Center of Gravity -----
(Angle Not Detected)
02 10 0 00000 Line -----
02 11 0 00000 Line -----
02 31 0 00000 Leaded -----
02 32 0 00000 Leaded -----
02 33 0 00000 Multiple Pin Leads (Standard) -----
02 34 0 00000 Multiple Pin Leads (Standard) -----
02 35 0 00000 Multiple Pin Leads -----
(General Purpose)
02 36 0 00000 Multiple Pin Leads -----
(General Purpose)
02 37 0 00000 Leaded (Special) -----
02 38 0 00000 Leaded (Special) -----
02 39 0 00000 Leaded (Standerd2) -----
02 40 0 00000 Multiple Pin Leads (Standerd2) -----
02 41 0 00000 Multiple Pin Leads (Standerd2) -----
0308-001 2-146-2 AHB01ETRP
Error ID Item Description
02 91 0 00000 Grid pattern -----
02 92 0 00000 Grid pattern -----
02 93 0 00000 Grid pattern (Split) -----
02 94 0 00000 Grid pattern (Split) -----
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Contact our service personnel for details.
4.3 Recognition Error IDs and Remedial Procedures
0308-001 2-146-3 AHB01ETRP

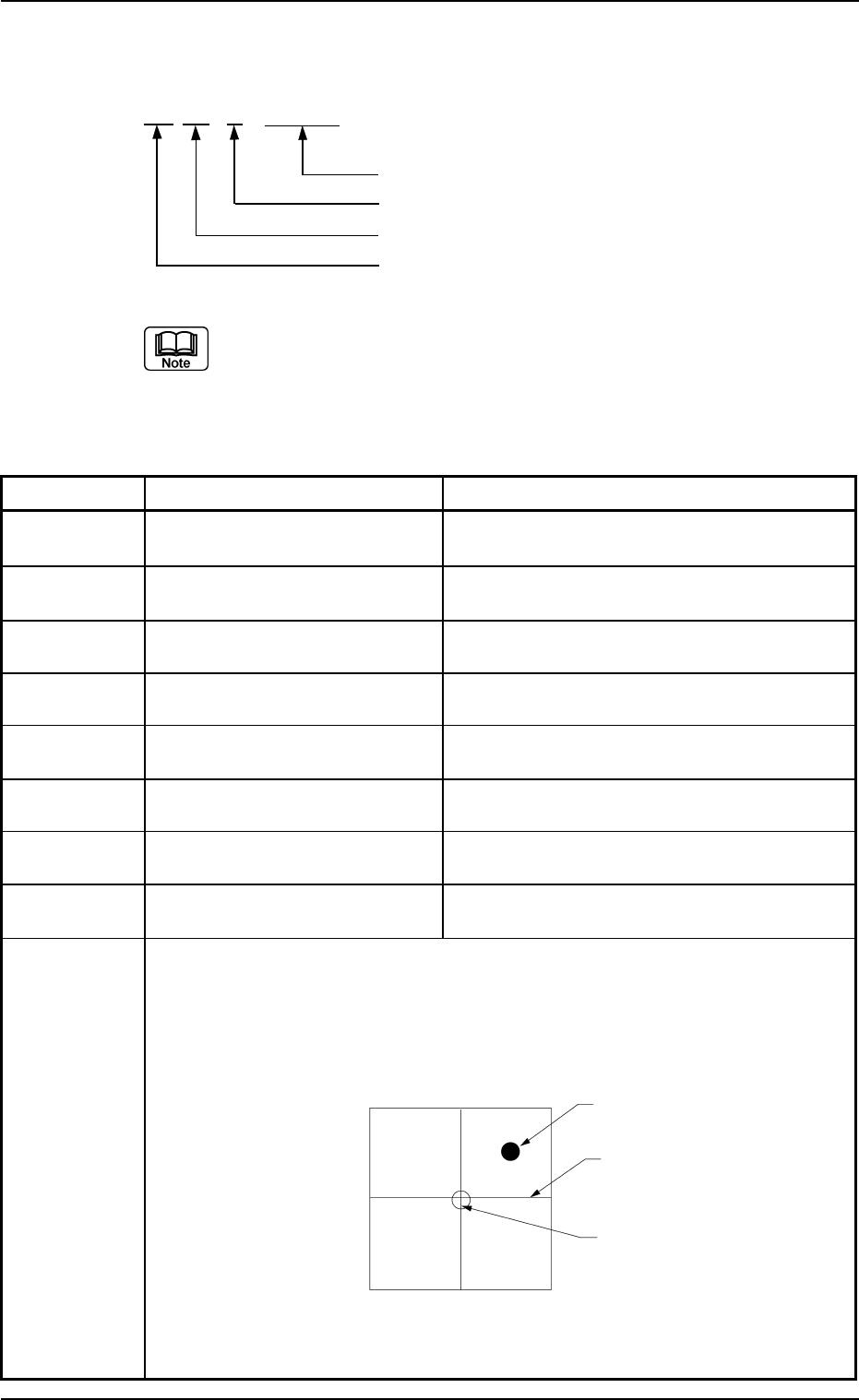

4.3.3 P.E.C. Recognition Errors
AA BB C DDDDD
Detail Code
Secondary Error Classification (1 to 4)
Primary Error Classification (0 to 1)
Classification of Recognition Functions (03)
(a) Error IDs "*" will be filled with detail codes.
(b) When an error ID other than the described ones is issued,
contact our service personnel for some advice.
Table 4B12
Error ID Item Description
03 00 0 ***** ---- Others
03 00 1 ***** ---- Specified Mark Not Found in Recognizable
Range.
03 00 2 ***** ---- Unstable Image around Fiducial Mark.
03 00 3 ***** ---- Extensive Error in Similitude of Mark Shape.
03 00 4 ***** ---- Extensive Error in Similitude of Mark Shape or Size.
03 00 6 ***** ---- Contrast between Mark and Background is too Low.
03 01 1 ***** Specified Mark Not Found in Recognizable Range.
03 02 2 ***** Diffusion plate was detected.
(Cause 1) The fiducial mark and the fiducial mark coordinates X and Y or the mark data
are not suitable.
(Remedy 1) Follow the steps below to reset the machine to the normal condition.
(1) When the [RESET] button is pressed, the following recognition window
appears.
Fig. 4B54 Sample Display of Recognition Window
(Continue to the next page. )
4.3 Recognition Error IDs and Remedial Procedures
0308-004 2-147 AHB01ETRP
Actual Fiducial
Mark
Crosshair
Template of
Fiducial Mark
