4.3.4 Nozzle Recognition Errors AA BB C DDDDD Detail Code Secondary Error Classification (1 to 3) Primary Error Classification (0) Classification of Recognition Functions (04) (a) Error IDs "*" will be filled w…
(2) Manipulate the pointing device until the actual fiducial mark and the
template of the fiducial mark (located at the center of the crosshair)
overlap each other.
Note: Enlarge the view for accurate alignment operation. Otherwise,
components may not be placed accurately.

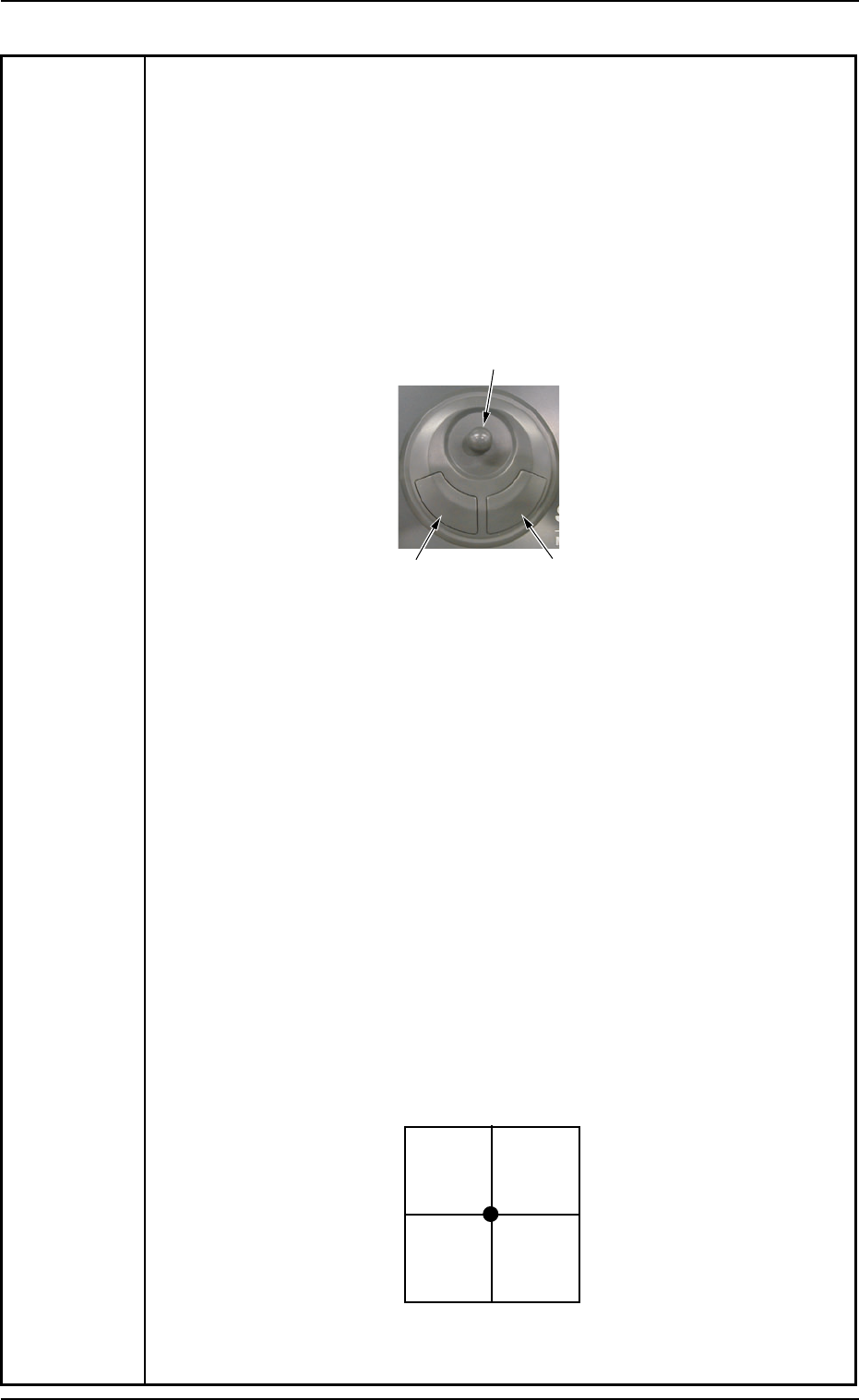

How to manipulate the pointing device
• Move the actual fiducial mark with the joystick.
• Use the right button to enlarge the view.
• Use the left button to reduce the view.
Fig.4B55
(3) After adjusting the actual fiducial mark and the template accurately,
press the right and left buttons of the pointing device at the same time.
The "AUTO OPN." window resumes.
When the [START] button is pressed, the automatic operation starts
again.
Note: Pressing both right and left buttons at the same time is vali-
dated only once.
If the actual fiducial mark and the template are not adjusted
correctly, components may not be placed accurately. In this
case, follow the remedial operation described below.
(3-1) Press the [STOP] button to stop the machine.
(3-2) Press the [Cancel] button to interrupt the automatic operation.
(3-3) Perform the zeroing operation on all axes.
(3-4) Open the "Run Mode" tab sheet. (Operation Sequence: [OPN.
MODE] Button ? "Run Mode" Tab Sheet) Press the [Semi-Auto
(Step)] button to re-start the automatic operation.
Fig. 4B56 Sample Display of Recognition Window at Completion of
Alignment Operation
4.3 Recognition Error IDs and Remedial Procedures
0206-002 2-148 AHB01ETRP
Joystick
Left Button
Right Button
4.3.4 Nozzle Recognition Errors
AA BB C DDDDD
Detail Code
Secondary Error Classification (1 to 3)
Primary Error Classification (0)
Classification of Recognition Functions (04)
(a) Error IDs "*" will be filled with detail codes.
(b) When an error ID other than the described ones is issued,
contact our service personnel for some advice.
Table 4B13
Error ID Item Description
04 00 0 ***** ---- Others
04 00 1 ***** ---- Nozzle Not Detected.
04 00 2 ***** ---- Nozzle size has exceeded the allowable range.
04 00 3 ***** ---- Nozzle position has exceeded the allowable range.
04 01 1 ***** ---- Diffusion plate not detected.
(Cause 1) The nozzle is attached abnormally.
(Cause 2) The nozzle type data is abnormal.
(Remedy 1) Attach the nozzle correctly.
(Remedy 2) Check the nozzle type data. If necessary, correct it.
0308-003 2-149 AHB01ETRP
4.3 Recognition Error IDs and Remedial Procedures
4.3.5 Various Teaching Errors
AA BB C DDDDD
Detail Code
Secondary Error Classification (0 and 6)
Primary Error Classification (0 to 99)
Classification of Recognition Functions (10)
(a) Error IDs "*" will be filled with detail codes.
(b) When an error ID other than the described ones is issued,
contact our service personnel for some advice.
Table 4B14
Error ID Item Description
10 00 0 00000 ---- Others
10 54 0 00000 ---- There is a big difference X and Y in the result of
magnification.
10 54 0 00001 ---- The measured magnification does not meet the
specifications of the machine.
10 54 6 76030 ---- Contrast between dot and background is too low.
10 54 6 76031 The dots cannot be detected adequately.
(Cause 1) An error occurred during the teaching operation of the camera magnification
and the angle.
(Remedy 1) Contact our service personnel for details.
10 55 0 00000 ---- The teaching operation did not end within the
specified number of time.
10 55 0 00001 ---- Back lighting OFF
10 55 0 00002 ---- Gain or Level exceed the range of tuning.
(Cause 1) An error occurred during the teaching operation of the camera gain and level.
(Remedy 1) Contact our service personnel for details.
4.3 Recognition Error IDs and Remedial Procedures
