(14) Frame Fig. 4A39 1.3 Maintenance Spots 0206-003 1-31 AHB01ETRP

(13) Control Box Section

Fig. 4A38

1.3 Maintenance Spots

0206-003 1-30 AHB01ETRP

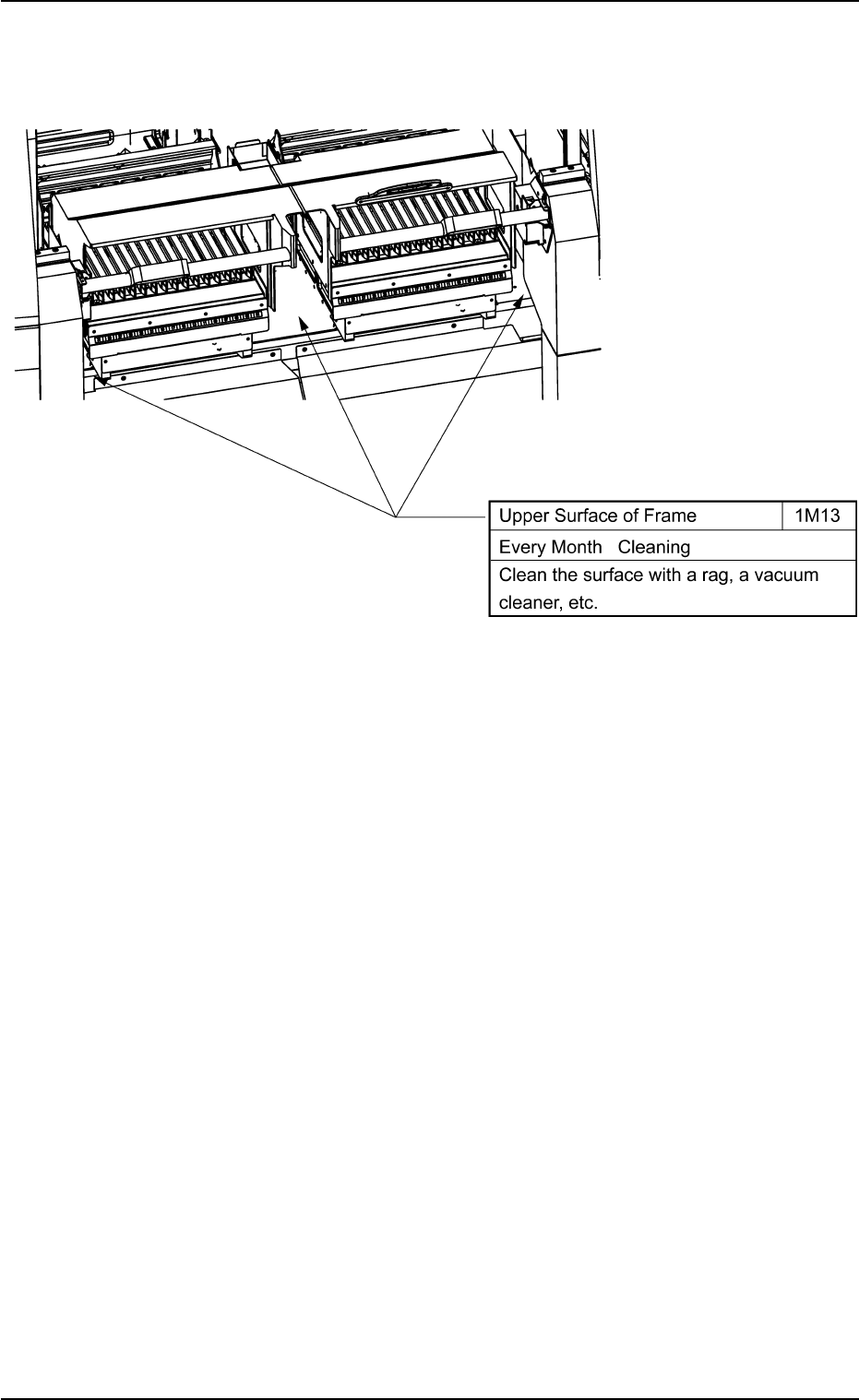

(14) Frame

Fig. 4A39

1.3 Maintenance Spots

0206-003 1-31 AHB01ETRP

1.4 Maintenance Method

1.4.1 Replacement of Nozzle Change Cam

• Detachment Procedure

(1) Turn off the power supply.

(2) Move the X/Y beam by hand such that the heads become reach-

able.

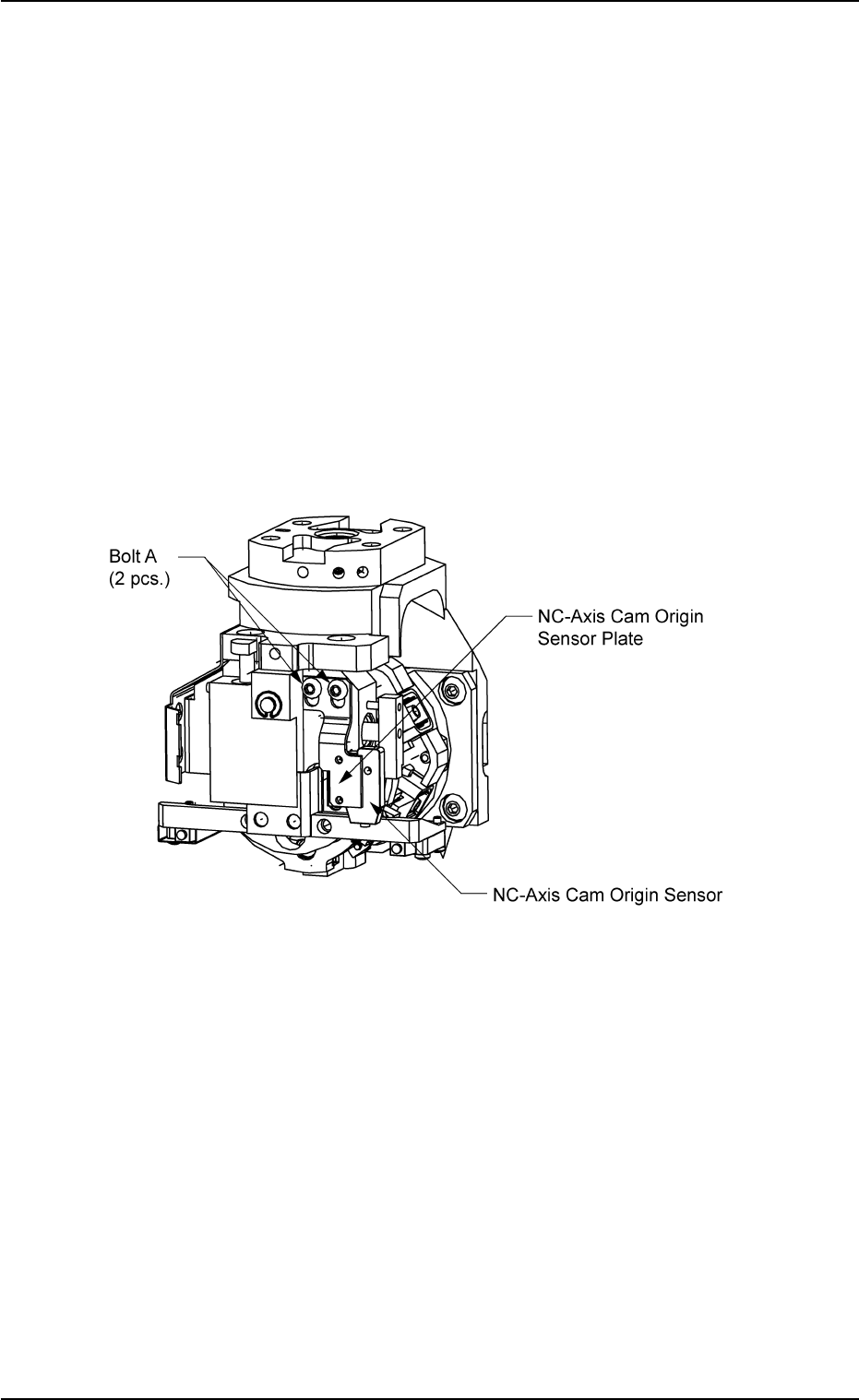

(3) Rotate the NC-axis cam origin sensor plate to the position where it

can easily be detached.

Cut two tie wraps with a pair of nippers.

Remove two bolts A with a hex-head wrench (2 mm) and detach

the NC-axis cam origin sensor.

Fig. 4A40

1.4 Maintenance Method

0206-003 1-32 AHB01ETRP
