Section 2
Troubleshooting
0308-002 2-A AHB01ETRP
This section describes the scope of troubleshooting, easy
troubleshooting, troubleshooting based on error IDs, and
troubleshooting related to component picks and placement.
0107-001 2-B AHB01ETRP
1. Scope
1.1 Troubleshooting
The troubleshooting is composed as follows.

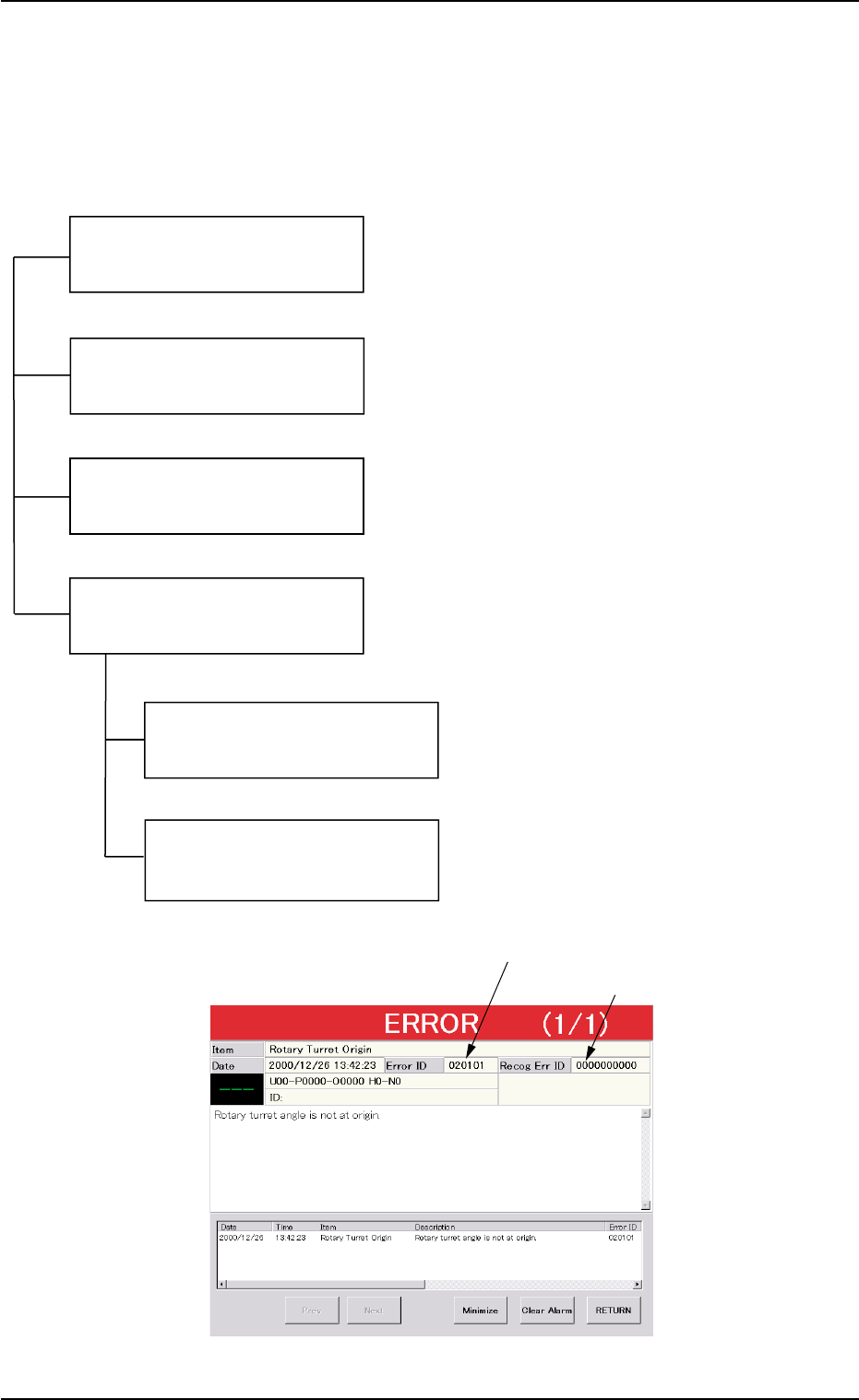

Fig. 4B1
0308-002 2-1
AHB01ETRP
1. Scope
Error ID (6 digits)
Recognition Error ID (10 digits)
Troubleshooting after
"CHECK" Window
Troubleshooting after
"Machine Information" Window
Troubleshooting after
"ERROR" Window
This session describes the remedial procedures in
a "CHECK" window.
Refer to "1.2 "CHECK" Windows" for details.
This session describes the remedial procedures
at the "Machine Information" Window.
Refer to "1.3 Machine Information" for details.
This session describes the remedial procedures of
an error for which no error message is issued.
Refer to "2. Easy Troubleshooting" for details.
Various troubleshootings must be performed
according to the difference of error IDs and
recognition error IDs.
See Fig. 4B1.
Refer to "3. Troubleshooting after "ERROR"
Window (Error ID)" for details.
Refer to "4. Troubleshooting after "ERROR"
Window (Recognition Error ID)" for details.
Troubleshooting based on
Error ID (6 digits)
Troubleshooting based on
Recognition Error ID
(10 digits)
Easy Troubleshooting
