T able 4B3-6 (a) When the "W arm Start" operation is feasible, the [W ARM] button appears in the "OPN. MODE" window (submenu). (b) When the [W ARM] button is not displayed, it means that the "W a…
Table 4B3-5
(3) Press the [RETURN] button in the "ERROR" window. The "ERROR" win-
dow closes.
(4) Press the [ALL] button (entitled "ZERO") in the "AUTO OPN." window to
zero all axis.
(5) Check whether or not the P.C.B. in the middle of component placement is
located correctly (not out of the P.C.B. positioning section) and the com-
ponents are placed normally (not dispersed).
(6) When the message "Warm Start Enable" is displayed in the "Operator
Message" pane in the "AUTO OPN." window, it means that the "Warm
Start" operation is feasible.
(a) "Warm Start Enable" means that the production is interrupted in
the middle of component placement.
(b) When the operation is interrupted without any component being
placed, "Warm Start" becomes impossible.

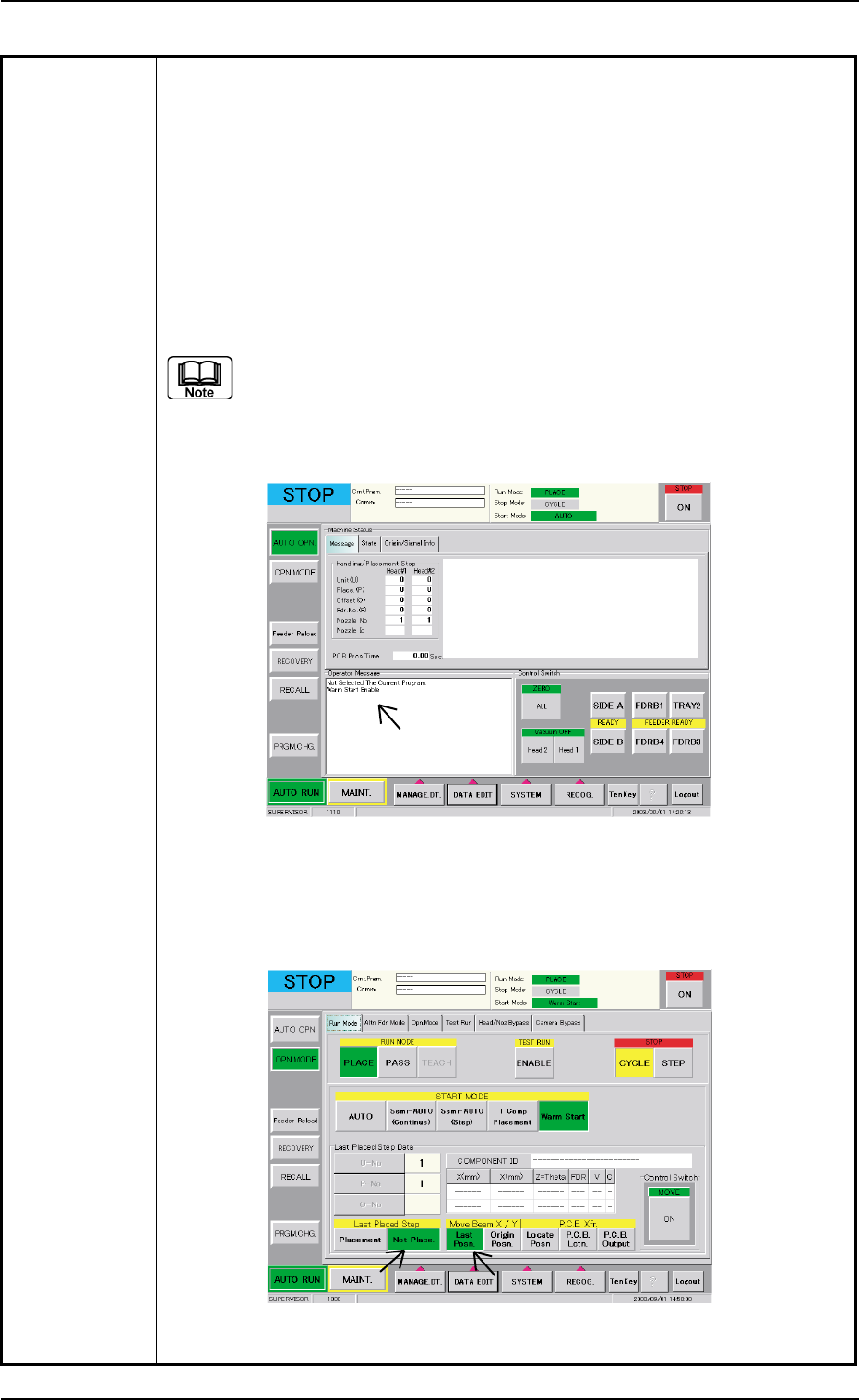

Fig. 4B12 "AUTO OPN." Window (Submenu)
(7) Press the [OPN. MODE] button on the submenu bar. The "OPN. MODE"
window (submenu) opens.
Fig. 4B13 "AUTO OPN." Window (Warm Start Available Mode)
0308-003 2-8-5 AHB01ETRP
2.4 Continuous Operation Disabled during Component Placement
Table 4B3-6
(a) When the "Warm Start" operation is feasible, the [WARM] button
appears in the "OPN. MODE" window (submenu).
(b) When the [WARM] button is not displayed, it means that the "Warm
Start" operation is not feasible or there was a mistake in the re-
medial procedure after an error had occurred. In this case, per-
form the semi-automatic operation (step designation) to reset the
machine to its normal condition.
(8) Check how the last component was placed when the operation was inter-
rupted.
The last placement step is indicated in the "
Last Placed Step Data"
group box in the "OPN. MODE" window (submenu).
Check visually whether or not the relevant component is placed on
the P.C.B.
(9) Press the [Last Placed Pos.] button (entitled "Move Beam X/Y" in the "OPN.
MODE" window (submenu).
(10) Press the [RECOG.] button on the main menu bar and make the recog-
nition window (1/4 of the whole view at the upper right corner) appear.
(11) Press the [ON] button (entitled "MOVE"). In two seconds, press the [EN-
ABLE] button on the operation panel.
The last placement position is displayed as a recognition image.

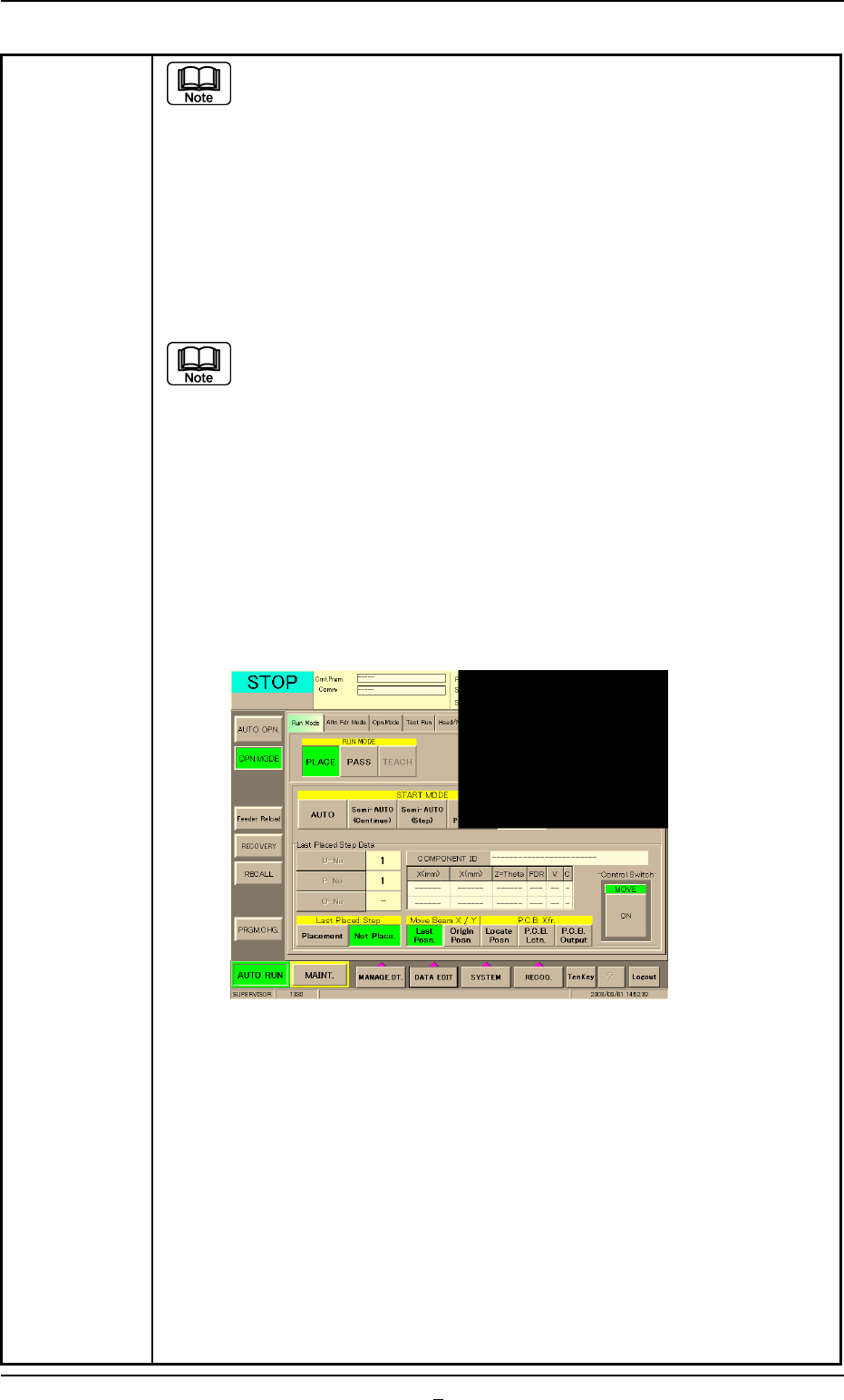

Fig. 4B14 "OPN. MODE" Window (Last Step Confirmation)
(12) Check whether or not the component is placed. If not, select the [Place-
ment] button. If the component is already placed, select the [Not Place-
ment] button.
(13) Press the [ENABLE] button on the operation panel in 2 seconds after
the [Origin Pos.] and the [ON] button (entitled "MOVE").
The XY beam returns to its origin.
(14) Press the [START] button on the operation panel. The "Warm Start"
operation is implemented.
(15) As for the P.C.B. produced through "Warm Start" operations, be sure to
confirm that all components are correctly placed.
2.4 Continuous Operation Disabled during Component Placement
0308-002 2-8-6 AHB01ETRP
3. Troubleshooting after "ERROR" Window (Error ID)
Assuming "Error ID", "Item (Error Name)", and "Description" in the "ER-
ROR" window as an index, the system retrieves the related page of the
instruction manual.
Refer to "3.1 Typical Description" for the detailed description.

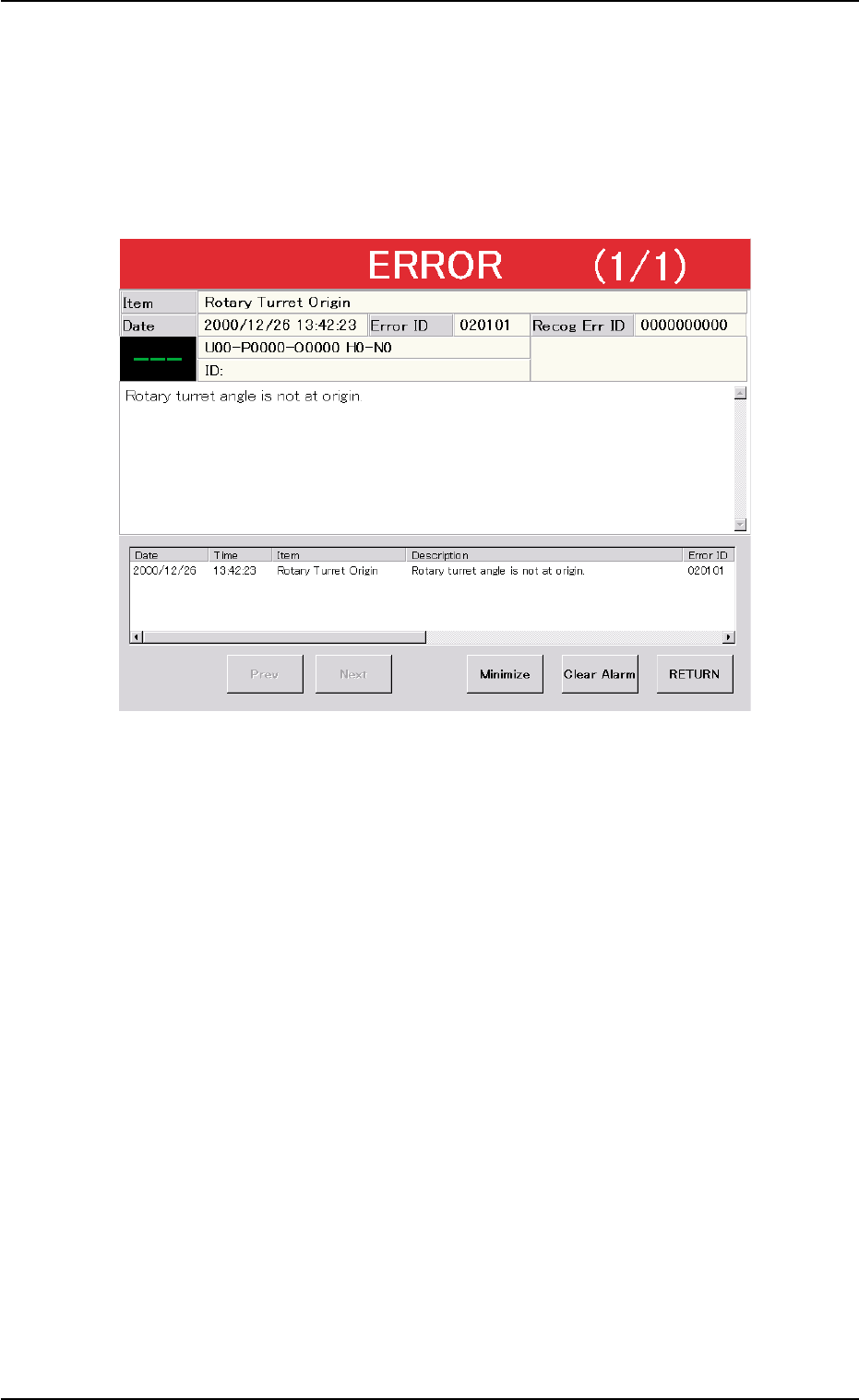

Fig. 4B15 Example of "ERROR" Window
3. Troubleshooting after "ERROR" Window (Error ID)
