10-26 General Inspection Methodology
X-ray Solder inspection uses a threshold value to binarize the image into black or white pixels.
The user can select to use either a fixed Threshold value (by moving the slider bar left and right)
or use a dynamic threshold (by putting a number in the Bias field). The Bias field and the Show
button will only be enabled if the user checks the Use Dynamic Thresholding field. The black
area in the middle of inspection box will be detected as the main solder area of resistor pins. The
average gray level, the area and the width of this area will be calculated. The numbers will be
compared with the following threshold values: maximum gray level, minimum area, maximum
area and minimum solder width. Any number outside the range indicates a solder defect.
In the meantime the algorithm will scan the middle section of the solder area and calculate the
maximum outside slope and maximum inside slope. Here the slope refers to differences of gray
levels of neighboring pixels along a specific direction. From center of solder area towards
outside of the device a maximum outside slope (the red arrow above) value will be calculated
and towards inside of the device a maximum inside slope (the cyan arrow) value will be
calculated. The solder has missing or insufficient defect will have a relatively small inside and
outside slope value. The minimum outside slope and minimum inside slope are two thresholds
used to separate the bad solder joints from the good ones.
In X-ray view, X-ray solder inspection can effectively detect missing, insufficient or excess
solder for capacitors and other devices having a similar shape in X-ray view.
10.4.5 Solder Blob Analysis Parameters
The solder blob analysis algorithm can be used (amount other applications) to detect solder balls
around the chip components.
Select Solder Blob Params from the Solder pop-up menu to open the Solder Blob Analysis
Parameters dialog.
General Inspection Methodology 10-27
Similar to Xray Solder inspection, the Solder Blob Analysis uses a threshold value to binarize the
image into black or white pixels. The user can select to use either a fixed Threshold value (by
moving the slider bar left and right) or use a dynamic threshold (by putting a number in the Bias
field). The Bias field and the Show button will only be enabled if the user checks the Use Thresh
field.
The Count Limits Min and Max set the acceptable blob count. The Area Limit Min sets the
minimum area of the blob. Blobs smaller than the minimum area will not be counted as a blob.
The Size Limits field sets the acceptable size (width or height) of the blobs.
To detect a solder ball around chip components the Count Limit Min and Max should both be
set to 0s. The Area Limits Min should be set to the minimum area of the solder ball that is
considered a defect. The Invert Image checkbox should be checked to make a black solder ball
appear as a white blob.
10-28 General Inspection Methodology
10.4.6 Percent Void Parameters
The Percent Void inspection enables measurement of the number of pixels and the percentage of
pixels in a user selected window within a defined gray scale range. The Percent Void function is
designed primarily for semiconductor applications such as measuring an area of a device which
may show some bonding inconsistencies, bonding voids, solder voids, air gaps and provide the
user with a percentage of the area that may be affected. The percent void measurement can be
applied to many other measurements where an area defect or point of interest is concerned.
The function computes the total number of pixels, the number of highlighted, “lit”, pixels and the
number of pixels in the largest lit blob within the windowed area. It determines the percentage of
lit pixels and the percentage of pixels in the largest lit blob, and then compares them with the
pass/fail thresholds set in the Max Void and the Largest Void fields. If either percentage is more
than its threshold, the system reports that Percent Void failed; otherwise, it is reported to have
passed.

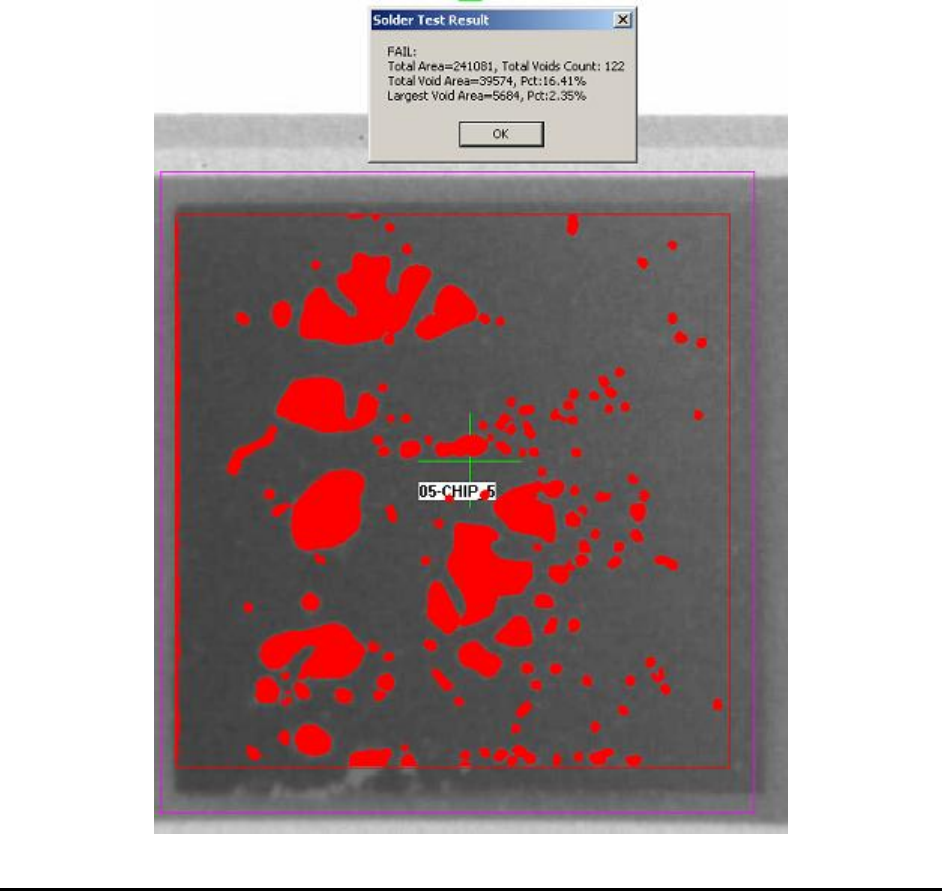

The Percent Void result is presented in the Solder Test Result dialog box as shown below. By
default the void area been detected will be shown in red.
