2-2 Safety
Operating equipment in excess of
maximum ratings
2.4 Safety Warning Labels
Safety labels on the AXI system systems point out potentially hazardous areas and remind personnel to
take necessary safety precautions. Table 2-1 describes safety warning labels that may be on the AXI
systems.
WARNING! CAUTION!
Comply with all safety warning labels or serious injury to personnel or damage to
the AXI system may occur. Worn or damaged labels should be replaced with new
labels having the same part number.
Table 2-1 Safety Hazard Labels
Warning Type
Symbol
Part
Number
Hazard
General Hazard
7223284
(1)
This label warns not to remove the cover while the
machine is in operation.
Disconnect and lock out power before servicing.
Moving Parts
Present
11599
(2)
This label warns of moving parts that can cause
serious injury to hands or fingers. Keep hands away
from moving parts.
Disconnect and lock out power before servicing.
Electrical
(Shock Hazard)
70-0116-00
(1)
or
70-0050-00
(2)
This label warns of a high voltage component that
can cause shock, burn, or death. Use extreme
caution when working in or around these areas.
Disconnect and lock out power before servicing.
Laser Hazard
7254753
(1)
This label warns not to stare into the beam. Serious
eye damage and/or blindness may result.
Disconnect and lock out power before servicing.
X-Ray Hazard
7254754
(1)
This label warns of X-Ray radiation. Do not insert any
part of the body when energized.
Disconnect and lock out power before servicing.
Laser Hazard
11312
This label warns not to stare into the beam. Serious
eye damage and/or blindness may result.
Disconnect and lock out power before servicing.
Laser Hazard
11312
This label warns not to stare into the beam. Serious
eye damage and/or blindness may result.
Disconnect and lock out power before servicing.
Notes: (1) Rectangular labels with symbols and text. These labels are placed on machines that are shipped anywhere but the
European community.
(2) Triangular labels with symbols only. These labels are placed on machines that are shipped to the European
community, referred to as “CE labeled” machines.
2-2 Safety
Item
Description
1
P/N: 7223284 Physical Hazard
2
P/N: 11599 Moving Parts Present
3
P/N: 11312 Laser Hazard
4
P/N: 11312 Laser Hazard
5
P/N: 70-0050-00 Shock Hazard
6
P/N: 7254753 Laser Hazard (X3 Only)
7
P/N: 7254754 X-Ray Hazard

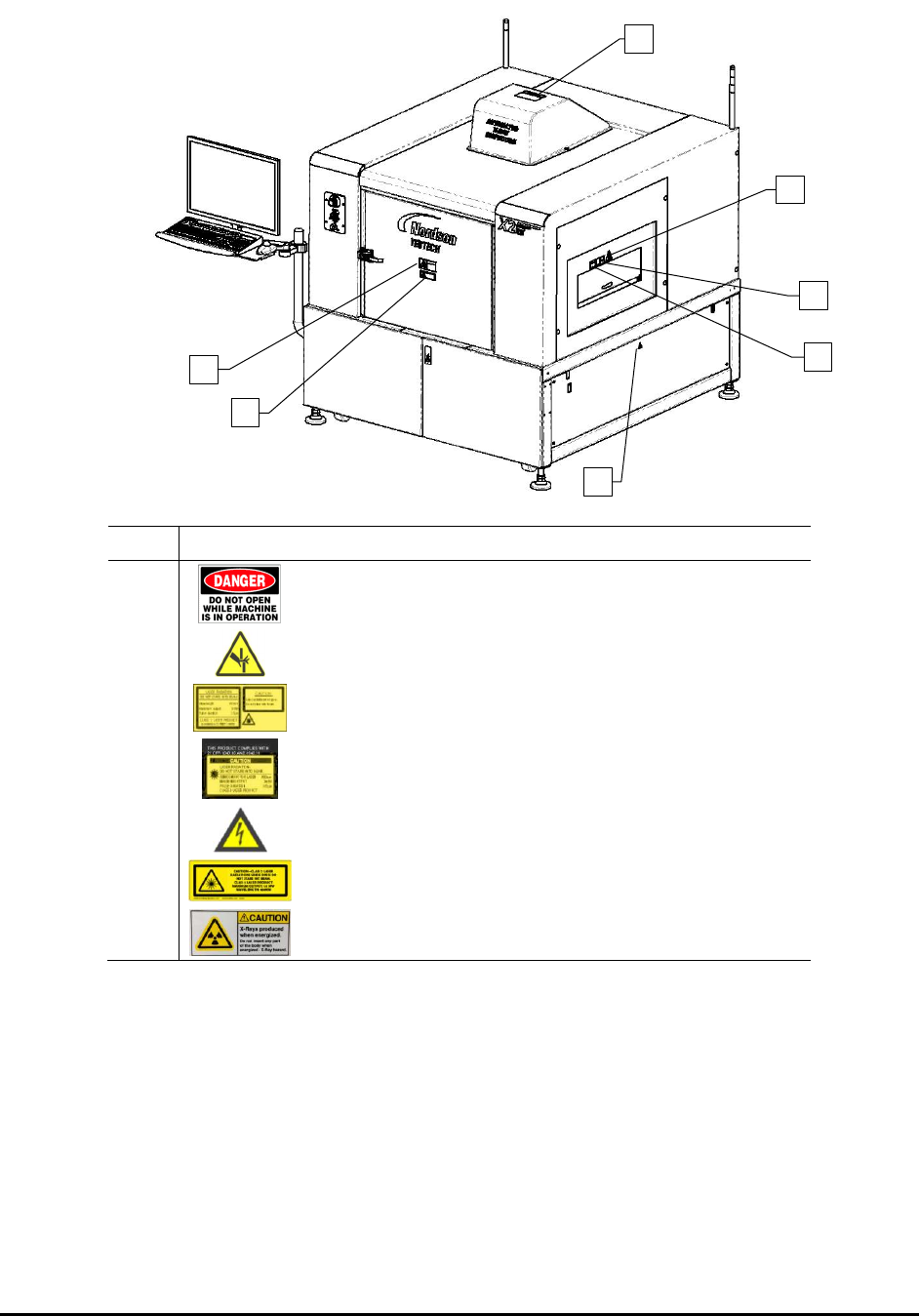

Figure 2-1 AXI Safety Hazard Label Locations Front Right
1
2
5
6
7
3
4
Safety 2-3
Item
Description
1
P/N: 7223284 Physical Hazard
2
P/N: 70-0050-00 Shock Hazard
3
P/N 70-0116-00 Hazardous Voltage
4
P/N: 11599 Moving Parts Present
5
P/N: 11312 Laser Hazard
6
P/N: 11312 Laser Hazard

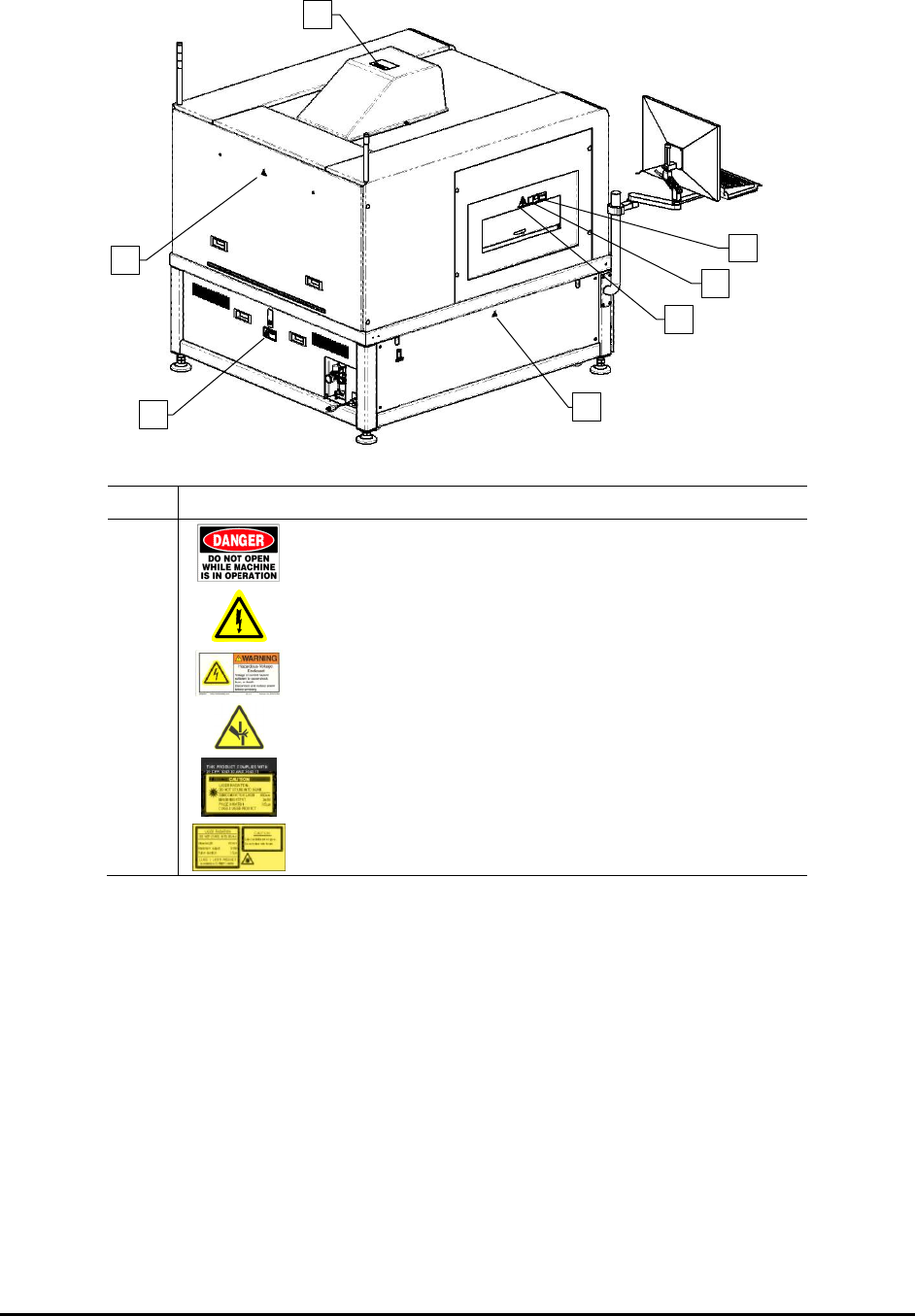

Figure 2-2 AXI Safety Hazard Label Locations Back Left
3
2
2
4
1
6
5
