Defect and Board Documentation 18-1

18 - Defect and Board Documentation

18.1 Screen Image

In addition to use inline inspection for defect detection, the AXI machine is also a wonderful tool

for manual inspection. Use the AXI machine to capture pictures of defects and sample boards

and then create rework documents. Several software features are designed for such applications.

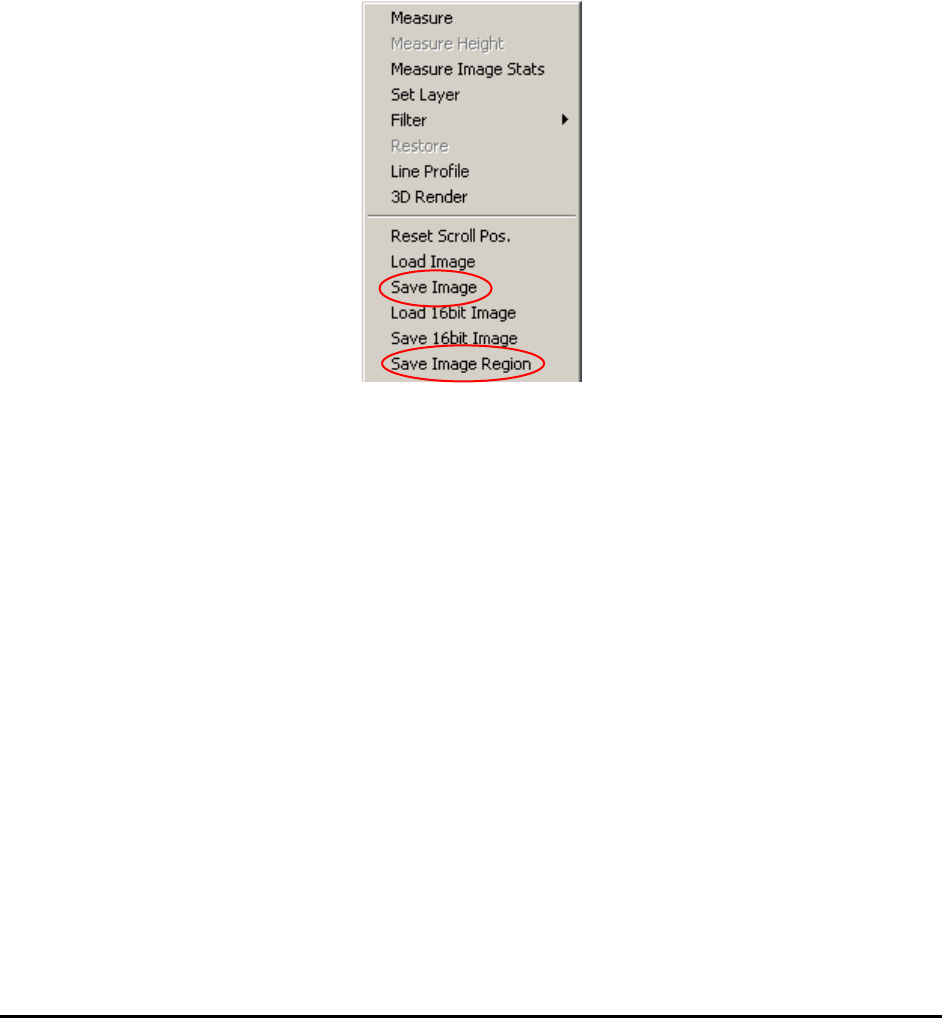

Save Image and Save Image Region, from the Video View menu, saves the image or image

region to a file in a user selectable format (bitmap, tiff, JPEG, etc.) to a user-defined file

path/name.

For X3 AXI system, since the X-Ray detector has 16-bit capability it is also possible to save and

load 16bit images for your applications.

One of the very powerful but often forgotten features in Windows XP is the Print-Screen

function. This is a handy tool for documentation. To use the feature just press the PrtScn key

combination (Shift- PrtScn or Fn- PrtScn) on the key board, launch the Microsoft Paint

program and select Edit, Paste. You can use MS Paint do all sorts of editing for the screen

image before saving it to file. In fact, most of the software images in this manual are created by

using this method.

18.2 Part Image

For PCBs used in products that require total traceability (medical products, safety devices),

YesAX software can capture images of specified parts. The part images are stored in the

PartImage sub-folder under the Recipe folder. It is saved in JPEG format. Part Images are

stitched from inspection images. If the part is inspected in multiple views, there will be multiple

images for that part. The part image file name is composed of the board’s serial board, the part’s

reference ID and the view that captured the image: BoardSN_RefID_View.jpg.

To specify a part for part image save, check the Save This Part Image checkbox in its Edit Part

Parameters dialog.

18-2 Defect and Board Documentation

Here are some sample part images:
