21-2 Image Set and Image Archive

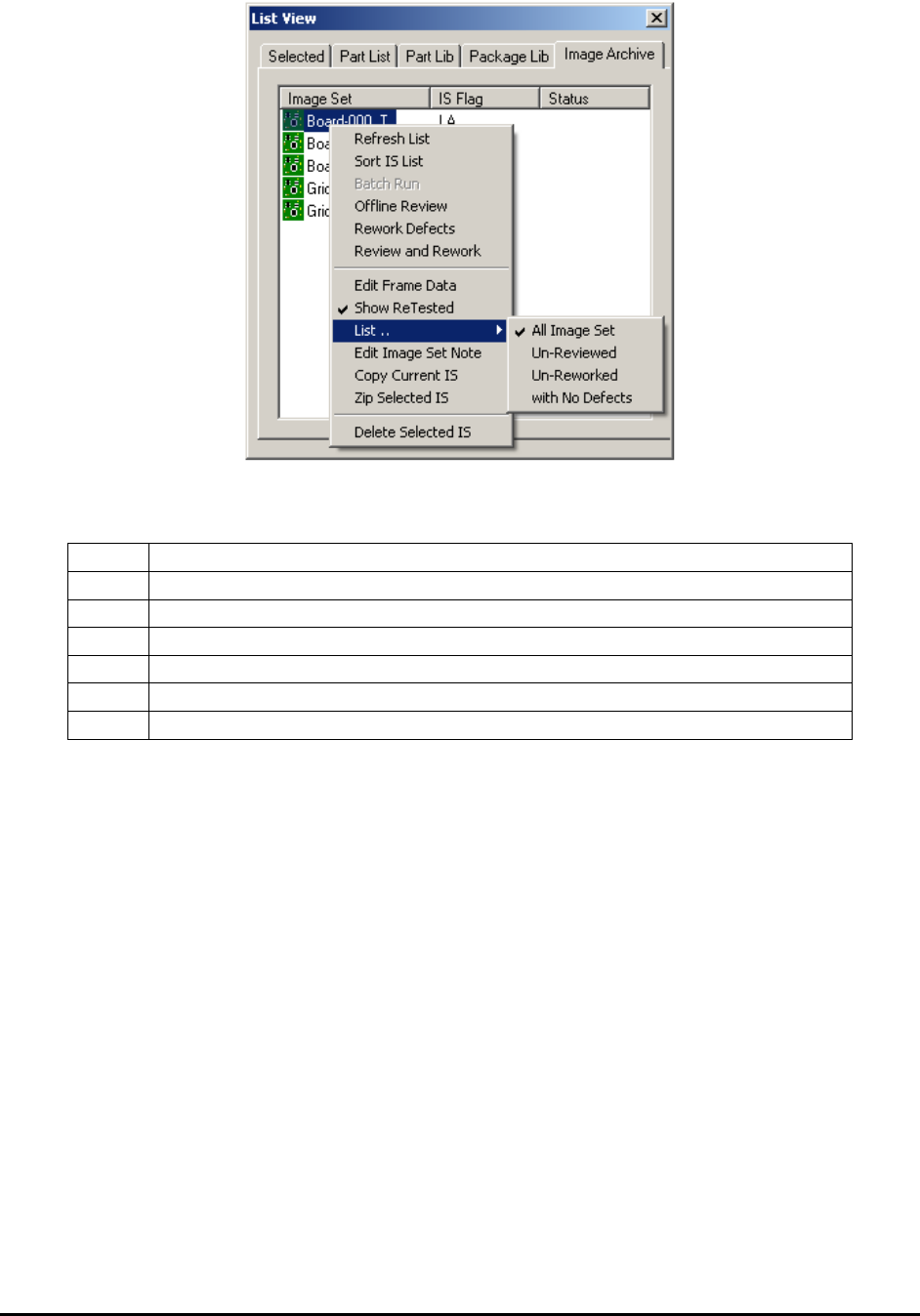

On this tab the name of the Image Set is listed on the left, followed by IS Flag. IS Flag may be

one or more of the following letters:

Inspection Path Image Set

Grid Image Set

Full Image Set

Defect Only Image Set

The Image Set had been reviewed.

The Image Set had been reworked.

The Image Set had been reviewed and a real defect is found on it.

Double clicking on the selected Image Set will load it into program memory.

This page also has a pop-up menu which will display when the user clicks the right mouse button

inside the Image Archive window (see 21.6 Pop-up Menu for Image Archive).

21.1 Offline Programming

The offline software (PN: AXI-OLS) is a software option that AXI users can purchase separately

at an additional cost. The software can perform three main functions: offline programming (i.e.

offline inspection recipe creation), offline defect review, and defective board rework. AXI-OLS

can be installed on any computer running Windows 2000 or XP. This section describes the

offline programming feature. Offline review and rework is documented in the next section.

You can create inspection recipes offline from an Image set captured on an X2/X3 AXI system.

Programming offline allows the AXI machine to continue with inspection work, which

eliminates delays in the manufacturing process. It also allows the user to create inspection

recipes in the comfort of his or her office.

Image Set and Image Archive 21-3

Installing the offline software:

1. Install the Rainbow key driver.

The setup program can be found in the Rainbow folder on the YesAX delivery CD. The

name of the setup program is SSD5411-32bits.exe

2. Install Matrox Imaging library.

The setup program (install.bat) can be found in the Matrox folder on the YesAX

delivery CD.

3. Install the YesAX software.

The setup program can be found in the YesAX Vx.x Setup folder on the YesAX delivery

CD.

4. Plug the software protection key into a free USB port.

5. Rename the Offline.ini file to YesAX.ini, found in the folder C:\Program Files\Aoi\ini.

(There may be a YesAX.ini already in the folder. Please overwrite it.)

Setup the network environment:

Offline software must be connected to the host AXI machine via a fast Ethernet connection (100

base T is the minimal requirement). The AOI_Data folder on the AXI machine and the offline

computer should be shared as AOI_Data and allow full access between them. All AXI machines

and offline computers on the network should share a single LTMaxNum.txt file. This file

regulates the template number for all stations which prevents cross contamination of templates.

Offline programming process:

The process of creating inspection recipes offline starts on the AXI machine just like normal

(online) recipe creation. Select File>New Recipe from the main menu to launch the Create New

Inspection Recipe dialog. Carry out the steps for defining board size. When it comes to capturing

the image set, click the For Offline Programming checkbox on the dialog.

The second part of the offline programming process involves the offline software. On the offline

computer’s YesAX software, select File>Load Recipe, then browse the network and open the

empty recipe created on the AXI machine. The Image Set should load automatically. If not,

double click and load it from the Image Archive. Define alignment marks, unless the fiducials

are included in the CAD data, by selecting Vision>Define Alignment Marks from the main

menu. Press the Align button once to make sure the image set can align properly. Then select

File>Import CAD from the main menu to create the recipe.

21.2 Offline Review

Defect review and classification can be time consuming. Reviewing online consumes valuable

machine time that can be used for uninterrupted automated inspection. Offline software allows

defect review to be carried out on another computer either downstream of the AXI machine or

completely offline (provided the board is serialized). Before using the offline review and rework

feature, make sure the defect classification code is the same on all machines and offline stations.

This means the Defect.ini file must be the same on all the stations. The Defect.ini file can be

found in the folder C:\Program Files\AOI\ini.

21-4 Image Set and Image Archive

The offline review process starts by loading the recipe from the AXI machine. From the Image

Archive, select the first board to review and double click it to load the Image Set. Select Offline

Review from the Image Archive’s pop-up menu. Offline review is very similar to online review

where users can review and classify defects. Upon completion of the review a defect report

displays and can be printed if desired. After closing the defect report, the Result dialog appears.

Click Next to repeat the review process for the next board.

If an image set has been reviewed at least once and all defects have been classified either as true

defects or false calls, the next time customer wants to review the same image set, software will

prompt user to select either new review or re-review.

The new review will allow user to review all defects (including classified defects and false calls)

like the image set was reviewed for the very first time. The re-review will give user an option to

include those classified as false calls in the re-review list or not. If the user does not want to

include any false calls, then only classified defects will be reviewed. During re-review process,

all defects will have the updated defect info which was assigned during the initial review process.

The user can still change the defect class and this info will be saved by software automatically

once review is complete.

Unlike Offline Review which requires users to serialize the boards being reviewed with

barcodes, Downstream Review does not have that restriction. In Downstream Review, the

review station is immediately downstream to the AXI machine. The review station is connected

to the AXI machine via a computer network (LAN). The user reviews the boards in the same

sequence as the AXI machine inspects them. To setup a computer for downstream review, select

the Is DownStream Review Station checkbox in the System Option dialog. On the AXI

machine’s YesAX software, select the Has Downstream Review Station checkbox in its

System Option dialog.
