Image Set and Image Archive 21-7
21.5 Board Comparator
Before the invention of AXI, the comparator system was used to improve the effectiveness of
human inspection. The comparator system consists of alternating the displays of a reference
board and the board under inspection where the operator picks out the defect on the board by
comparing the image of the reference board to the board under inspection. YesAX can also
provide this capability for users who want to do a quick comparison of boards without recreating
a recipe.

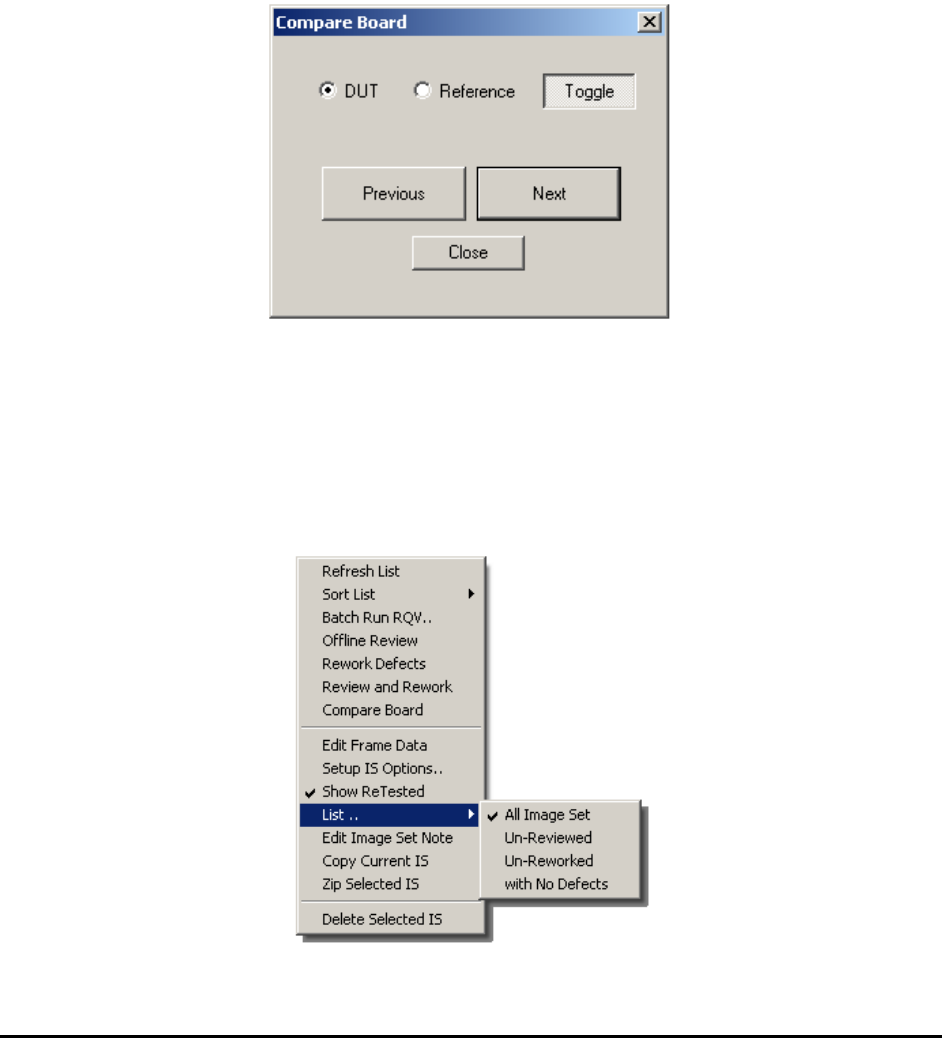

To use the feature, capture a grid image set of the reference board, put a board into the system,
load the grid image set into the software, and then select Compare Board from the Image
Archive Pop-up menu. The Compare Board dialog opens to guide the user.
Using the Previous and Next button, move across the board. If a defect is spotted on the video
window, press the right mouse button to pull down a menu, select Draw Defect and draw on the
video window for the defect location. If a defect is drawn, a defect report will display at the end
of the inspection.
21.6 Pop-up Menu for Image Archive
This section details the pop-up menu for the Image Archive window in the List View dialog.
21-8 Image Set and Image Archive
OPTION
DESCRIPTION
Refresh List
Checks the recipe’s folder to ensure newly created Image Sets are listed
in this page.
Sort IS List
Sorts the Image Set list in ascending chronological order.
Batch Run RQV
Launches a dialog to setup or start the Recipe Quality Validation
process. See 21.8 Recipe Quality Validator (RQV).
Offline Review
Starts the offline review process.
Rework Defect
Starts the defect rework process.
Review and Rework
Starts the Review and Rework process.
Compare Board
Starts the board comparator feature.
Edit Frame Data
Launches a dialog on the currently loaded frame.
Setup IS Options..
Launches a dialog to setup the period for auto delete and other Image
Set options. See 21.6.1 Set Image Set Options.
Show ReTested
If the Retest Failed Part option is turned on the software will retest all
the parts that failed. The image frame from the original test and re-test
will both be captured. This menu selects which of the frames to display.
List
All Image Set
Un-Reviewed
Un-Reworked
With No Defects
Lists all image sets.
Lists only the image set that has not been reviewed.
Lists only the image set that has not been reworked.
Lists only the image set that has been reviewed and has no defects.
Edit Image Set Note
The Image Set Note is a text file that is attached to an image set. Users
at the rework station can record information such as any special
comments or notes, who performed the rework at what time, etc.
Copy Current IS
Copy Current IS copies the loaded Image Set into the current recipe.
You can load an Image Set from another recipe using the File menu.
Zip Selected IS
Launches the Set Image Set Options dialog. See 21.6.2 Zip Selected
Image Set.
Delete Selected IS
Deletes one or more selected Image Sets.
21.6.1 Set Image Set Options

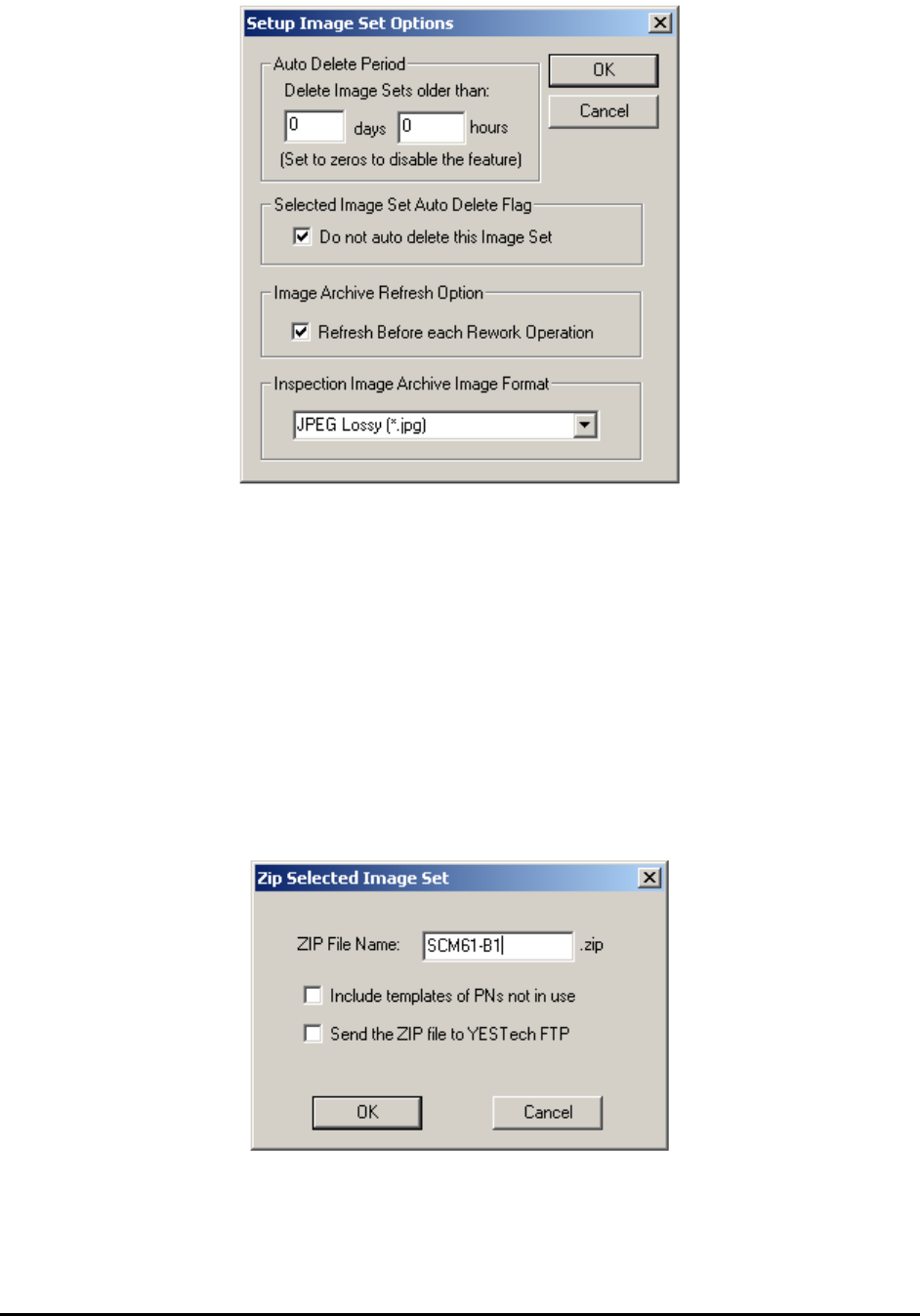

The Set Image Set Options dialog sets up the period for auto delete and other Image Set options.
Image Set and Image Archive 21-9
User can also mark selected Image Set to be excluded them from the Auto Delete function. The
marked Image Set will not be auto deleted regardless their time of creation. The Refresh Before
each rework Operation checkbox if enable will automatically refresh the Image Set list before
the starting of each Rework to ensure the list is always up-to-date. The Inspection Image
Archive Image Format drop down list box selects the image formats for the Image Set saved
during inspection. For 2D files the default format is JPEG lossy and for 3D files the default
format is TIFF uncompressed format.
21.6.2 Zip Selected Image Set
The Zip Selected Image Set feature automatically ZIPs up the recipe plus the selected Image Set
(or Image Sets) into one single file and places it in C:\Aoi_Data\Zip folder. If Send the ZIP file
to YESTech FTP is checked, the software also automatically uploads the file to Nordson
YESTECH’s FTP site.
