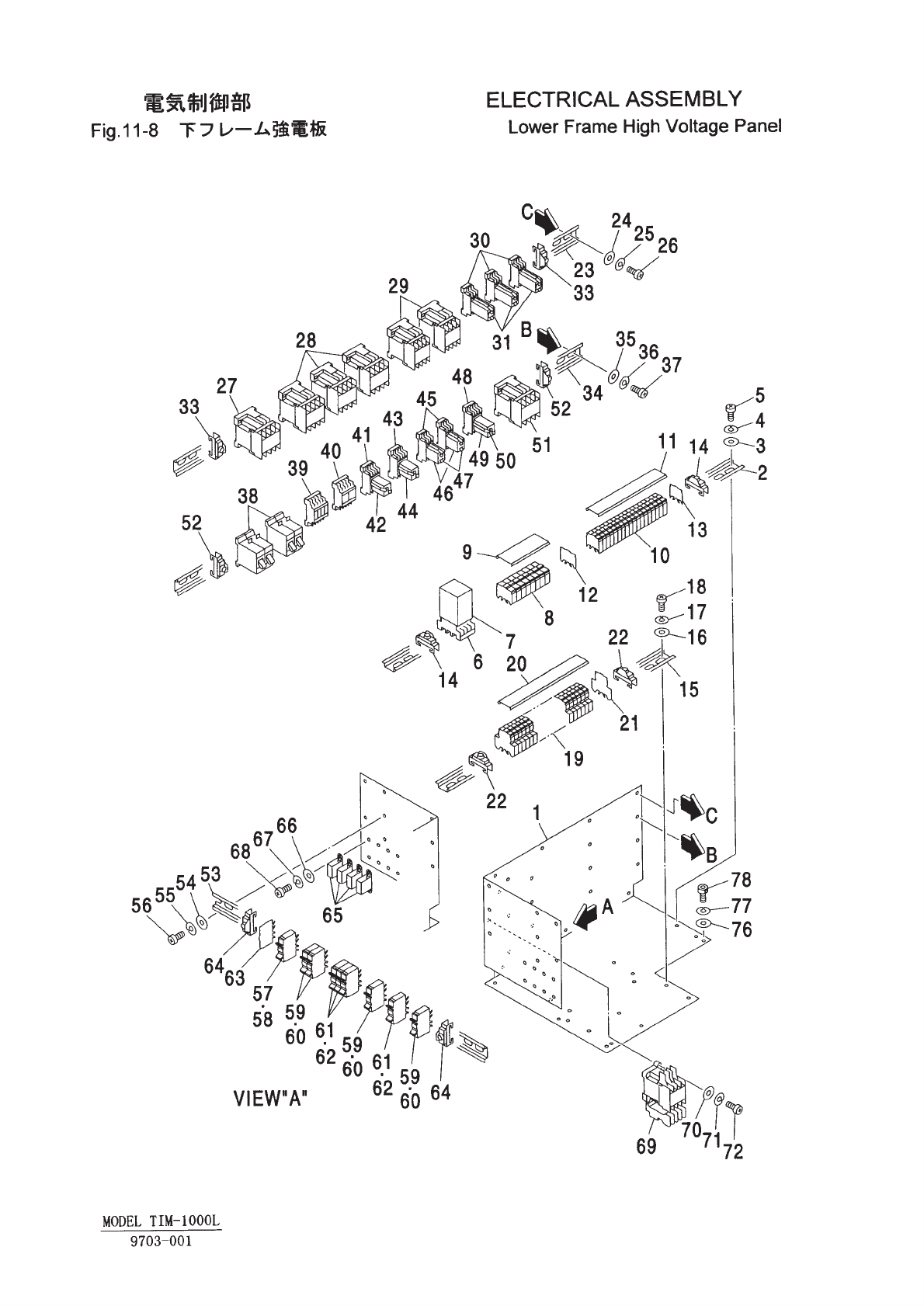

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8397 BOX 1 648BE-11B-005 1CC2CA2500541
2 411 141 4008 WASHER V 4X9X0.8 4 FW4
3 411 141 2905 WASHER SPR 4 4 SW4
4 630 000 7626 BOLT,HEX-SCT 4 M4X10
5 616 122 3562 BRACKET 1 648GG-11B-005 1CC2FC1005520
6 411 113 4708 SCR FLT 4X10 4 M4X10 FLT
8 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
9 411 008 1706 WASHER SPR 4 2 SW4 F
10 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
11 616 121 5024 CONTACTOR 2 648GC-11D-505 1CC4S26000460
12 616 121 5031 CONTACTOR 2 648GC-11D-506 1CC4S26000380
13 616 121 3754 SOCKET 2 648GD-11D-509 1CC4J12000360
14 616 121 3730 TIMER 1 648GD-11D-506 1CC4S51000170
15 616 121 3822 SOCKET HOLDER 2 648GD-11D-518 1CC4J12400011
16 616 121 3723 TIMER 1 648GD-11D-505 1CC4S51000160
17 616 121 3600 TERMINAL HOLDER 2 648GB-11D-523 1CC4J36200010
19 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
20 411 008 1706 WASHER SPR 4 2 SW4 F
21 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
22 616 121 3709 RELAY 1 648GD-11D-503 1CC4S21000100
23 616 121 3761 SOCKET 2 648GD-11D-510 1CC4J12000370
24 616 121 3686 RELAY 2 648GD-11D-501 1CC4S21000500
25 616 121 3815 SOCKET 2 648GD-11D-517 1CC4J12000030
26 616 121 3778 SOLIDSTATE RELAY 2 648GD-11D-511 1CC4S21400220
27 616 121 3815 SOCKET 1 648GD-11D-517 1CC4J12000030
28 616 121 3808 RELAY 1 648GD-11D-516 1CC4S21000383
29 616 121 3822 SOCKET HOLDER 1 648GD-11D-518 1CC4J12400011
30 616 125 8458 BRACKET 1 648BE-11B-017 1CC2FC1005241
31 616 121 5598 SPACER 2 648HB-11D-557 1CC4S60500140
32 616 121 5581 PRINTED BOARD 1 648HB-11D-556 1CC4B18000040
33 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
34 616 123 8337 CONDENSER 2 1CC4C11000160
35 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
36 616 121 3464 CONCENT 2 648GB-11D-505 1CC4J12500030
37 411 140 7208 SCR FLT 4X6 4 M4X6 FLT
38 616 121 8216 DRIVER UNIT 1 648DD-11H-502 1CC4U21000441
39 616 121 8742 DRIVER UNIT 1 648ED-11H-518 1CC4U21000103
40 411 141 4008 WASHER V 4X9X0.8 8 FW4
41 411 141 2905 WASHER SPR 4 8 SW4
42 630 000 7619 BOLT,HEX-SCT 8 M4X8
46 616 125 7185 BRACKET 1 648GG-11B-006 1CC2FC1006620
47 411 141 4008 WASHER V 4X9X0.8 2 FW4
48 411 141 2905 WASHER SPR 4 2 SW4
49 630 000 7626 BOLT,HEX-SCT 2 M4X10
NOTE

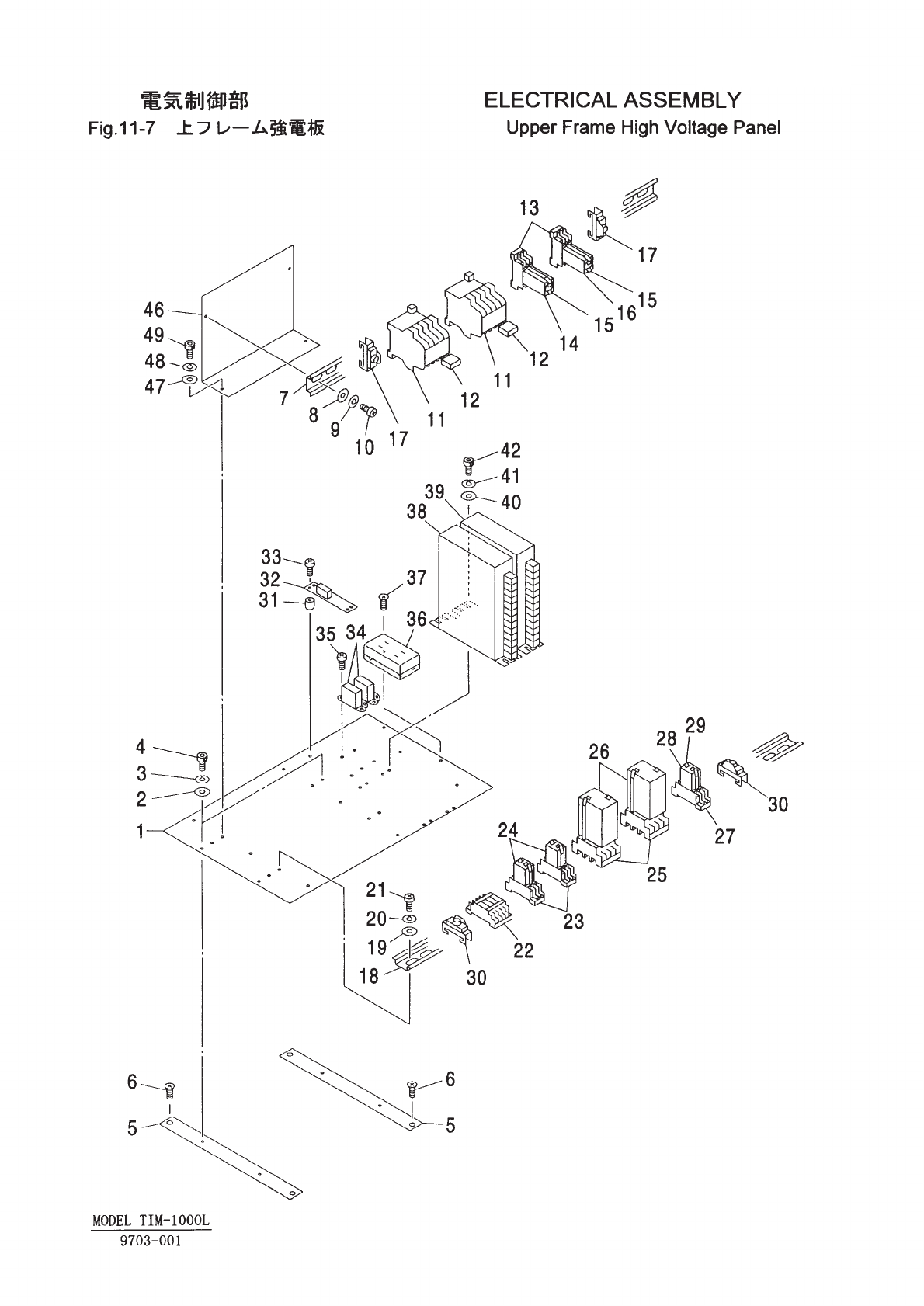

11-7
9703-001
MODEL TIM-1000L
