Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8830 HOLDER 1 648FC-11B-001 1CC2FC0507143
2 616 121 9183 GUIDE 2 648FC-11B-017 1CC2GG2001131
3 616 121 9213 PLATE 2 648FC-11B-021 1CC2FB0507470
4 630 000 7466 BOLT,HEX-SCT 24 M2X6
5 616 125 8892 PIN 11 648FC-11H-505 1CC2SD0502201
6 616 125 8861 BLOCK 2 648FC-11B-013 1CC2FB1002872
7 616 125 6812 FIBER 1 648FC-11H-512 1CC4V23500290
8 616 125 8878 CUSHION 4 648FC-11B-018 1CC2FJ1500611
9 630 000 7466 BOLT,HEX-SCT 8 M2X6
11 630 000 8883 SET SCREW 2 M3X4 SET
12 411 141 2806 WASHER SPR 3 4 SW3
13 630 000 7565 BOLT,HEX-SCT 4 M3X20
16 616 121 9121 FOOT(MOUNT) 2 648FC-11B-010 1CC2CG0500440
17 411 141 4008 WASHER V 4X9X0.8 8 FW4
18 411 141 2905 WASHER SPR 4 8 SW4
19 630 000 7640 BOLT,HEX-SCT 8 M4X14
21 616 121 9220 CYLINDER 2 648FC-11H-501 1CC2BA0506040
22 616 111 8226 SPEED CONTROLLER 4 648FC-11H-510 1CC2BC0800141
23 616 125 8847 BLOCK 2 648FC-11B-009 1CC2FB1002861
24 630 000 7589 BOLT,HEX-SCT 4 M3X30
26 630 063 0343 BLOCK 1 648FC-11B-024
27 630 063 0336 BLOCK 2 648FC-11B-023
28 630 060 6294 BLOCK 1 648FC-11B-022
29 630 062 8944 BLOCK(JIGU) 1 648FC-11B-025
30 630 000 7596 BOLT,HEX-SCT 4 M3X35
31 411 141 3902 WASHER V 3X7X0.5 2 FW3
32 411 141 2806 WASHER SPR 3 2 SW3
33 630 000 7596 BOLT,HEX-SCT 2 M3X35
36 616 121 9015 AMP 1 648FB-11H-515 1CC4V23200400
37 616 121 9015 AMP 1 648FC-11H-511 1CC4V23200400
38 411 141 3902 WASHER V 3X7X0.5 2 FW3
39 411 141 2806 WASHER SPR 3 2 SW3
40 630 000 7572 BOLT,HEX-SCT 2 M3X25
NOTE
8-3
9703-001
MODEL TIM-1000L

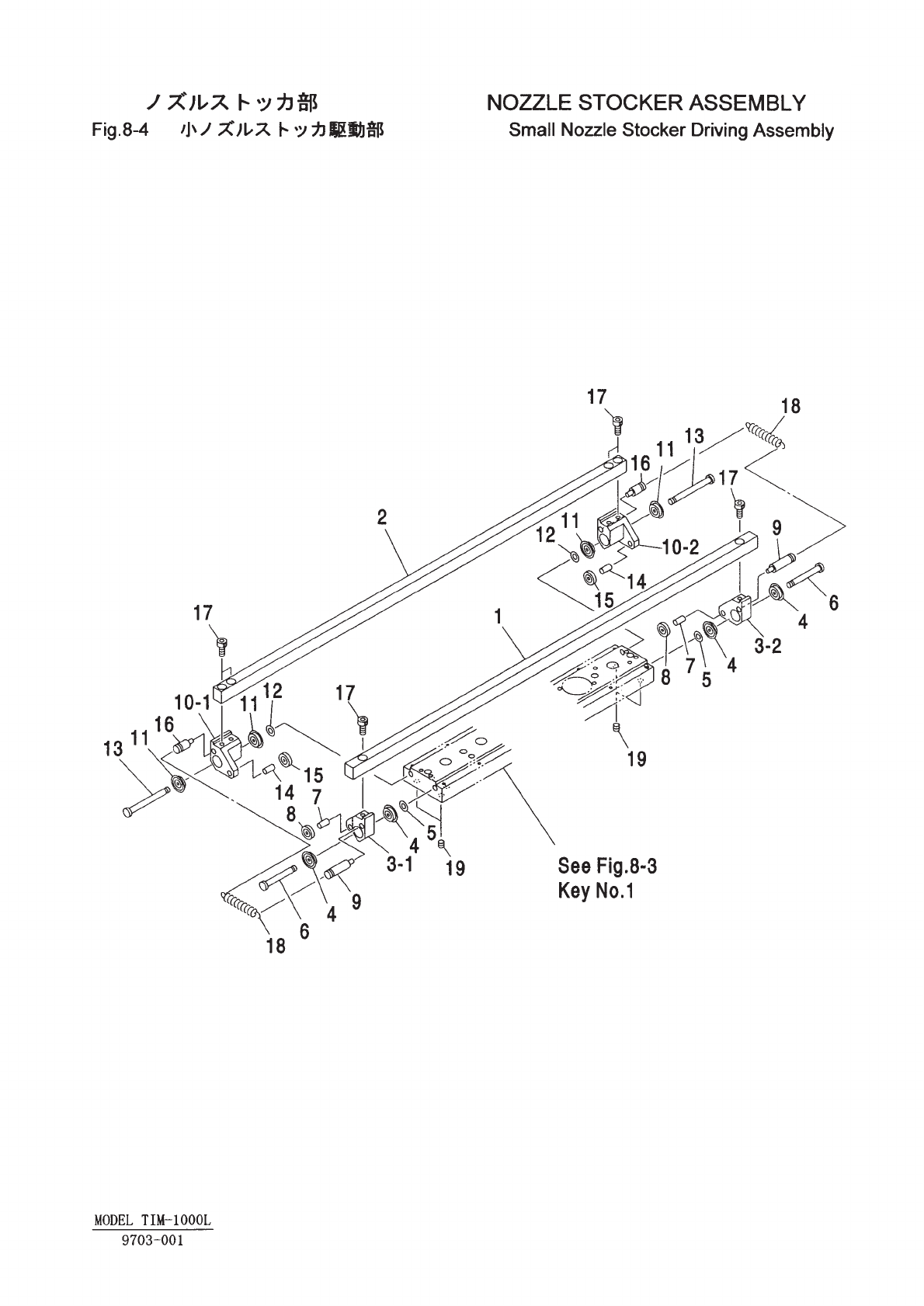

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 121 9084 HOLDER 1 648FC-11B-006 1CC2FC0507160
2 616 121 9077 HOLDER 1 648FC-11B-005 1CC2FC0507150
3 -1 616 121 9046 BLOCK 1 648FC-11B-002 1CC2FB1002840
3 -2 616 121 9169 BLOCK 1 648FC-11B-014 1CC2FB1002880
4 616 111 8790 BALL BEARING 4 648FC-11H-502 1CC2GF4000740
5 616 121 7813 WASHER 2 648FC-11H-508 1CC2SB0500390
6 616 121 9275 PIN 2 648FC-11H-507 1CC2SD0502220
7 616 121 9244 SHAFT 2 648FC-11H-504 1CC2GK0502391
8 616 121 9237 BALL BEARING 2 648FC-11H-503 1CC2GF4000741
9 616 121 9107 HOOK 2 648FC-11B-008 1CC2CC3500600
10 -1 616 121 9176 BLOCK 1 648FC-11B-015 1CC2FB1002890
10 -2 616 121 9053 BLOCK 1 648FC-11B-003 1CC2FB1002850
11 616 111 8790 BALL BEARING 4 648FC-11H-502 1CC2GF4000740
12 616 121 7813 WASHER 2 648FC-11H-508 1CC2SB0500390
13 616 121 9268 PIN 2 648FC-11H-506 1CC2SD0502210
14 616 121 9244 SHAFT 2 648FC-11H-504 1CC2GK0502391
15 616 121 9237 BALL BEARING 2 648FC-11H-503 1CC2GF4000741
16 616 121 9091 HOOK 2 648FC-11B-007 1CC2CC3500580
17 630 000 7527 BOLT,HEX-SCT 6 M3X10
18 616 121 9282 SPRING 2 648FC-11H-509 1CC2GM0504420
19 630 008 2296 SET SCREW 4 M4X4 SET
NOTE
8-4
9703-001
MODEL TIM-1000L
