Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 7444 BLOCK 1 648CG-11B-011 1CC2FB1002541
2 616 125 7468 PLATE 8 648CG-11B-013 1CC2FB0505460
3 616 125 7451 PLATE 8 648CG-11B-012 1CC2FB0505450
4 411 173 5301 SCR TRS 2X4 16 M2X4 TRS
5 616 125 7543 COVER 8 648CG-11B-126 1CC2CA0503140
6 616 121 5086 PRINTED BOARD 8 648GL-11D-504 1CC4B18000050
7 411 141 3704 WASHER V 2.5X6.5X0.5 16 FW2.5 F
8 411 141 2707 WASHER SPR 2.5 16 SW2.5 F
9 411 173 5400 SCR PAN 2.6X6 16 M2.6X6 PAN
10 616 125 7505 PLATE 4 648CG-11B-024 1CC2FB0505470
11 411 141 3803 WASHER V 2.5X6.5X0.5 8 FW2.5
12 411 141 6606 WASHER SPR 2.5 8 SW2.5
13 630 069 8985 BOLT,HEX-SCT 8 M2.6X12
14 616 125 7499 BLOCK 1 648CG-11B-023 1CC2FB1002551
15 616 121 7578 POST 4 648CG-11H-503 1CC2FF1501041
16 630 000 7626 BOLT,HEX-SCT 4 M4X10
17 630 000 7657 BOLT,HEX-SCT 4 M4X16
18 616 125 7475 COVER 3 648CG-11B-015 1CC2CA0503880
19 411 173 5301 SCR TRS 2X4 12 M2X4 TRS
20 616 125 7482 COVER 1 648CG-11B-021 1CC2CA0503891
21 411 173 5301 SCR TRS 2X4 4 M2X4 TRS
22 616 125 7512 COVER 1 648CG-11B-031 1CC2CA0504460
NOTE
9-2
9703-001
MODEL TIM-1000L

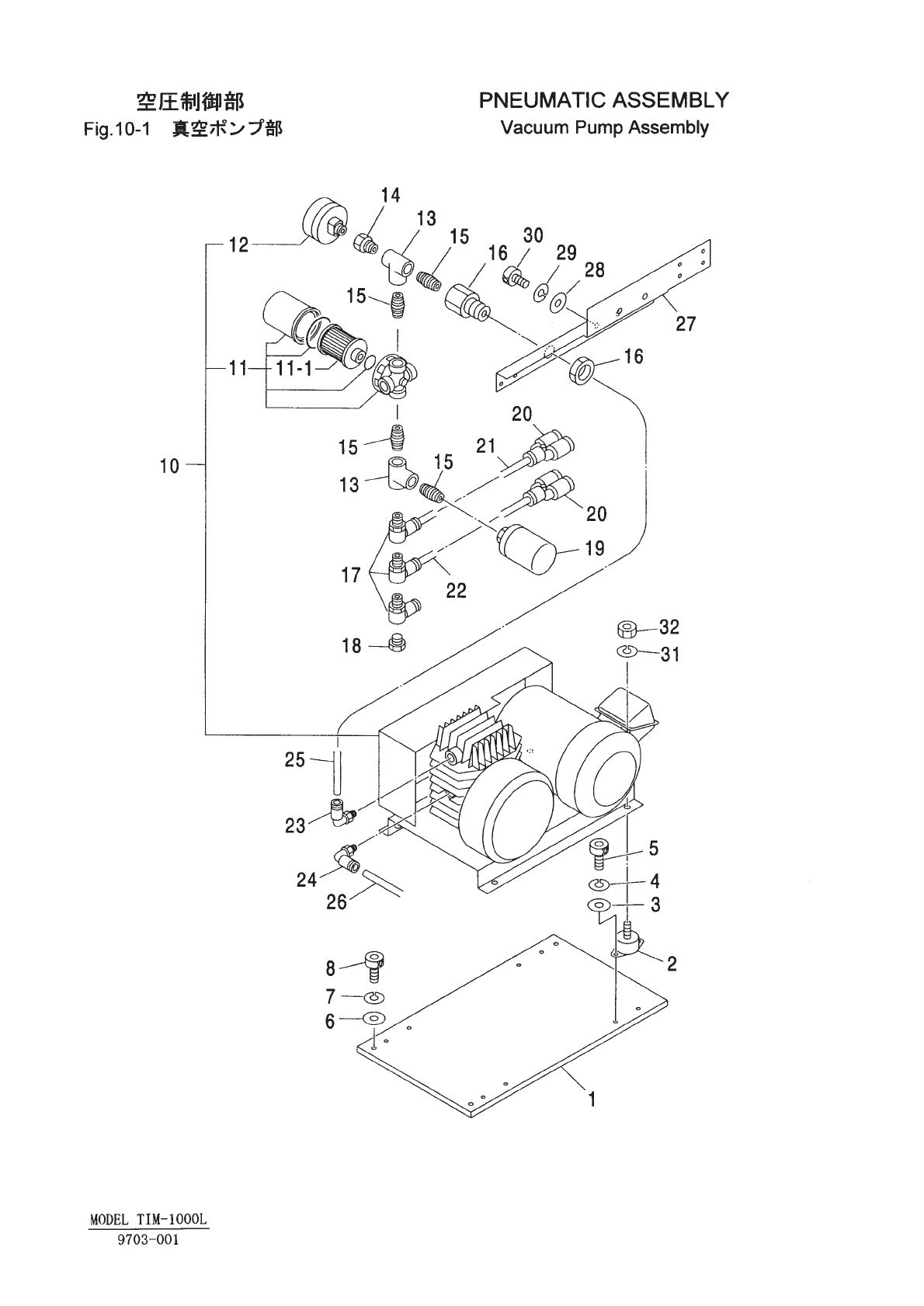

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8434 BASE 1 648BE-11B-013 1CC2FA1001831
2 616 121 7035 CUSHION 4 648BE-11H-508 1CC2FJ1500170
3 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
4 411 141 3001 WASHER SPR 6 8 SW6
5 630 000 7862 BOLT,HEX-SCT 8 M6X10
6 411 141 4305 WASHER V 6X12.5X1.6 3 FW6
7 411 141 3001 WASHER SPR 6 3 SW6
8 630 000 7886 BOLT,HEX-SCT 3 M6X16
10 630 056 9070 VACUUM PUMP 1 648BE-11H-504
11 630 031 8593 AIR LINE EQPT(FILTER) 1
11 -1 630 012 1230 AIR LINE EQPT(FLT ELEM) 1
12 616 123 8665 MANOMETER 1 1CC2NA1000040
13 616 123 8634 TEE 2 1CC2BD4500010
14 616 111 7830 AIR BUSHING 1 648BE-11H-532 1CC2BD5500070
15 616 123 8627 NIPPLE 4 1CC2BD3500120
16 616 121 7226 UNION 1 648BE-11H-536 1CC2BD5000110
17 616 111 7854 ELBOW 3 648BE-11H-528 1CC2BD1000150
18 616 111 7861 PLUG 1 648BE-11H-521 1CC2BD4000040
19 616 111 7793 PRESSURE SWITCH 1 648BE-11H-503 1CC2BC5600020
20 616 123 8641 UNION 2 1CC2BD5000340
23 616 123 8610 ELBOW 1 1CC2BD1000810
24 616 123 8610 ELBOW 1 1CC2BD1000810
27 616 125 8403 HOLDER 1 648BE-11B-006 1CC2FC0506852
28 411 141 4107 WASHER V 5X10X1 2 FW5
29 411 141 6705 WASHER SPR 5 2 SW5
30 630 000 7749 BOLT,HEX-SCT 2 M5X10
31 411 141 3001 WASHER SPR 6 4 SW6
32 411 141 0703 NUT HEX 6 4 M6
NOTE
10-1
9703-001
MODEL TIM-1000L
