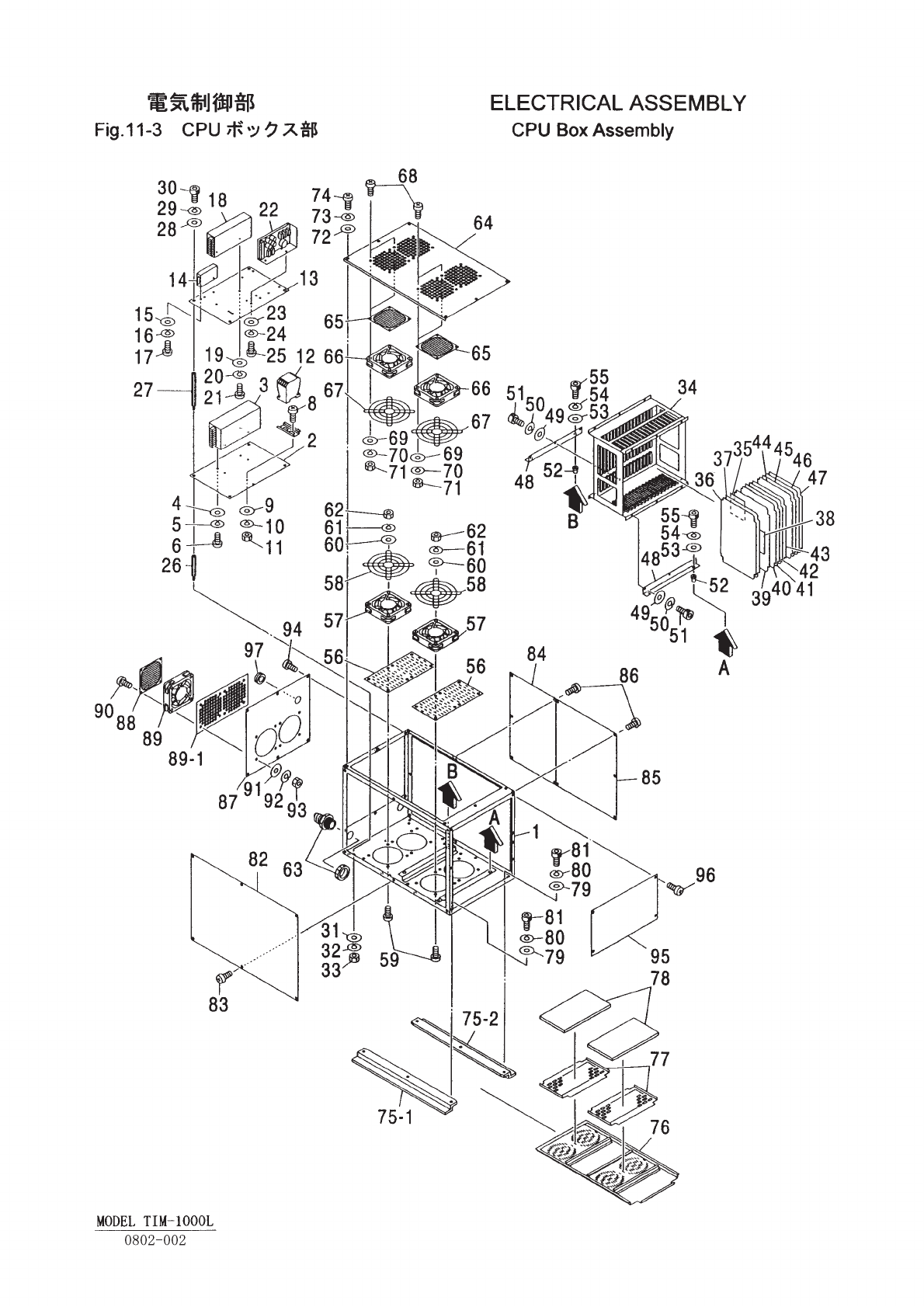

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 7123 BOX 1 648GE-11B-001 1CC2CA2500582
2 616 122 3234 BRACKET 1 648GE-11B-003 1CC2FC1005510
3 616 125 6447 DC POWER SUPPLY 1 648GF-11D-501 1CC4U23500900
4 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
5 411 008 1706 WASHER SPR 4 4 SW4 F
6 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
8 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
9 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
10 411 008 1706 WASHER SPR 4 2 SW4 F
11 411 054 8506 NUT HEX 4 2 M4 F
12 616 121 3976 POWER FAILURE DETECTOR 1 648GF-11D-505 1CC4U23500390
13 616 122 3227 BRACKET 1 648GE-11B-002 1CC2FC1005500
14 616 121 3969 DC POWER SUPPLY 1 648GF-11D-504 1CC4U23503110
15 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
16 411 008 1706 WASHER SPR 4 2 SW4 F
17 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
18 616 125 6454 DC POWER SUPPLY 1 648GF-11D-502 1CC4U23500880
19 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
20 411 008 1706 WASHER SPR 4 2 SW4 F
21 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
22 616 125 6461 DC POWER SUPPLY 1 648GF-11D-503 1CC4U23500890
23 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
24 411 008 1706 WASHER SPR 4 2 SW4 F
25 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
26 616 122 3395 POST 4 648GE-11H-503 1CC2FF1500950
27 616 122 3388 POST 4 648GE-11H-502 1CC2FF1500951
28 411 141 4107 WASHER V 5X10X1 4 FW5
29 411 141 6705 WASHER SPR 5 4 SW5
30 630 000 7732 BOLT,HEX-SCT 4 M5X8
31 411 141 4107 WASHER V 5X10X1 4 FW5
32 411 141 6705 WASHER SPR 5 4 SW5
33 411 141 0505 NUT HEX 5 4 M5
34 630 053 6706 P.C.B,MOUNT 1 648GE-11U-512
35 630 053 6676 P.C.B,MOUNT 1 648GE-11U-511
36 630 053 6522 P.C.B,MOUNT 1 648GE-11U-502
37 630 060 9226 P.C.B,MOUNT 1 648GE-11U-508
38 630 053 6669 P.C.B,MOUNT 1 648GE-11U-510
39 630 053 6515 P.C.B,MOUNT 1 648GE-11U-501
40 630 053 6553 P.C.B,MOUNT 1 648GE-11U-503
41 630 065 2345 P.C.B,MOUNT 1 648GE-11U-509
42 630 053 6119 P.C.B,MOUNT 1 648GE-11U-513
43 630 066 3532 P.C.B,MOUNT 1 648GE-11U-514
44 630 059 6731 P.C.B,MOUNT 1 648GE-11U-504
45 630 053 6577 P.C.B,MOUNT 1 648GE-11U-505
46 630 053 6607 P.C.B,MOUNT 1 648GE-11U-506
47 630 053 6614 P.C.B,MOUNT 1 648GE-11U-507
48 616 122 3326 STAY 2 648GE-11B-012 1CC2FC2500220
49 411 141 4008 WASHER V 4X9X0.8 6 FW4
50 411 141 2905 WASHER SPR 4 6 SW4
51 630 000 7626 BOLT,HEX-SCT 6 M4X10
NOTE
11-3
0802-002
MODEL TIM-1000L
Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
52 616 122 3418 CUSHION 4 648GE-11H-505 1CC2FJ1500220
53 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
54 411 141 3001 WASHER SPR 6 4 SW6
55 630 000 7909 BOLT,HEX-SCT 4 M6X25
56 616 122 3241 COVER 2 648GE-11B-004 1CC2CA0502330
57 616 121 3983 COOLING FAN 4 648GF-11D-506 1CC4U2A100040
58 616 121 3990 FINGER GUARD 4 648GF-11D-507 1CC4U2A200030
59 411 113 2407 SCR PAN 4X30 16 M4X30 PAN
60 411 141 4008 WASHER V 4X9X0.8 16 FW4
61 411 141 2905 WASHER SPR 4 16 SW4
62 411 141 0307 NUT HEX 4 16 M4
63 616 122 3401 CABLE CLAMP 2 648GE-11H-504 1CC4J14000011
64 616 122 3302 COVER 1 648GE-11B-010 1CC2CA0504910
65 616 121 4003 SAFETY GUARD 4 648GF-11D-508 1CC4U2A200040
66 616 121 3983 COOLING FAN 4 648GF-11D-506 1CC4U2A100040
67 616 121 3990 FINGER GUARD 4 648GF-11D-507 1CC4U2A200030
68 411 113 2407 SCR PAN 4X30 16 M4X30 PAN
69 411 119 2104 WASHER V 4X9X0.8 16 FW4 F
70 411 008 1706 WASHER SPR 4 16 SW4 F
71 411 054 8506 NUT HEX 4 16 M4 F
72 411 119 1909 WASHER V 3X7X0.5 6 FW3 F
73 411 086 4408 WASHER SPR 3 6 SW3 F
74 411 042 0703 SCR PAN 3X8 6 M3X8 PAN
75 -1 616 125 7147 RAIL 1 648GE-11B-013 1CC2GG0500891
75 -2 616 125 7154 RAIL 1 648GE-11B-017 1CC2GG0501150
76 616 122 3340 CASE 1 648GE-11B-014 1CC2CA3000260
77 616 122 3357 SADDLE 2 648GE-11B-015 1CC2FC2000040
78 616 122 3371 FILTER 2 648GE-11H-501 1CC2BC1600021
79 411 141 4008 WASHER V 4X9X0.8 6 FW4
80 411 141 2905 WASHER SPR 4 6 SW4
81 630 000 7626 BOLT,HEX-SCT 6 M4X10
82 616 122 3258 COVER 1 648GE-11B-005 1CC2CA0504860
83 411 041 8908 SCR PAN 3X6 6 M3X6 PAN
84 616 122 3272 COVER 1 648GE-11B-007 1CC2CA0504880
85 616 122 3265 COVER 1 648GE-11B-006 1CC2CA0504870
86 411 041 8908 SCR PAN 3X6 10 M3X6 PAN
87 630 053 1060 COVER 1 648GE-11B-009
88 616 121 4003 SAFETY GUARD 2 648GF-11D-508 1CC4U2A200040
89 616 121 3983 COOLING FAN 2 648GF-11D-506 1CC4U2A100040
89 -1 616 901 9163 COVER 1 648GE-11B-018 1CC2CA0506260
90 411 113 2407 SCR PAN 4X30 8 M4X30 PAN
91 411 141 4008 WASHER V 4X9X0.8 8 FW4
92 411 141 2905 WASHER SPR 4 8 SW4
93 411 141 0307 NUT HEX 4 8 M4
94 411 041 8908 SCR PAN 3X6 6 M3X6 PAN
95 616 122 3289 COVER 1 648GE-11B-008 1CC2CA0504890
96 411 041 8908 SCR PAN 3X6 4 M3X6 PAN
97 616 901 0874 GUM BUSH(GROMMETS) 1 648GF-11D-509 1CC2FJ4500021
NOTE
11-3
9703-001
MODEL TIM-1000L
