P-0092-002 - 第157页

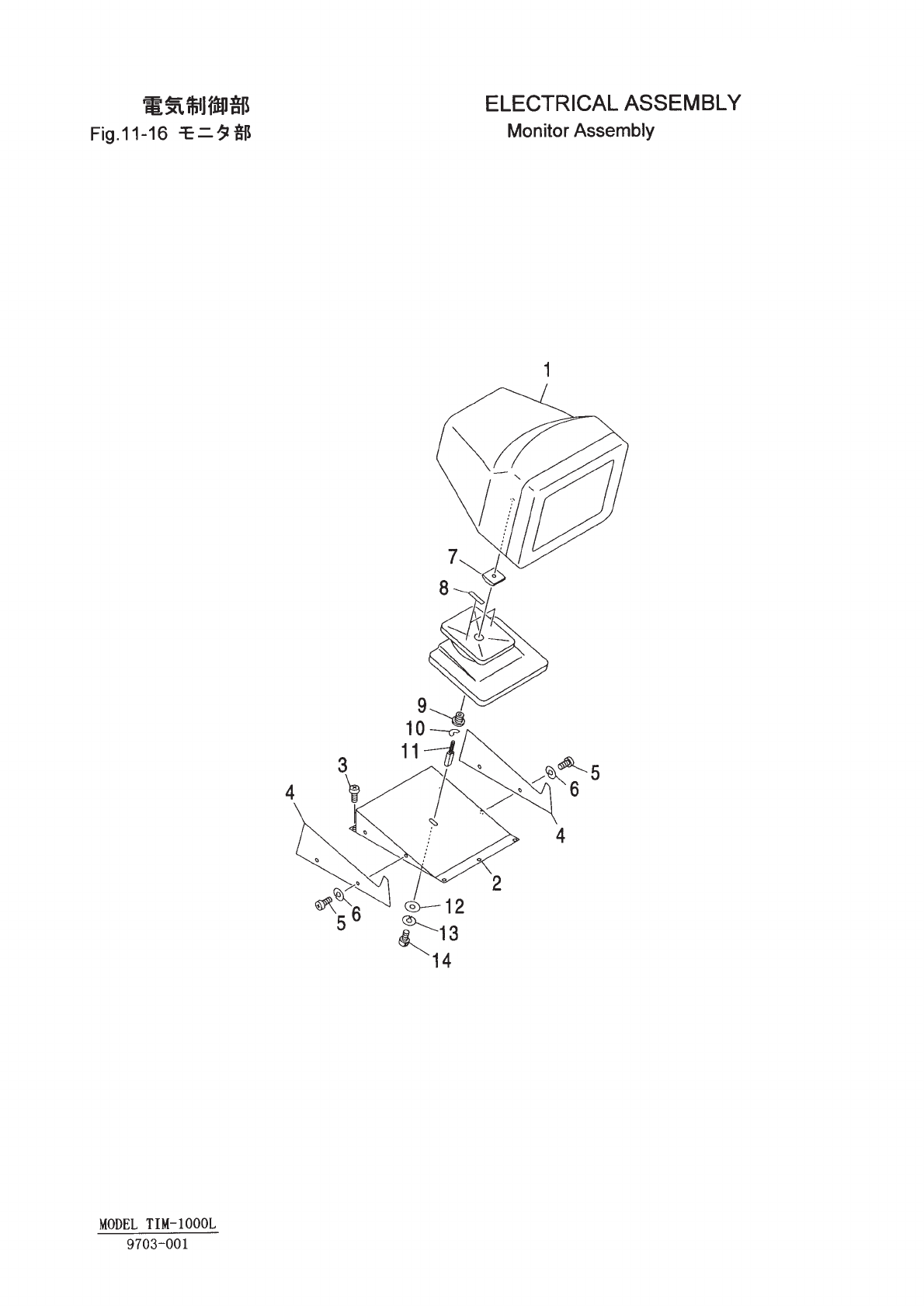

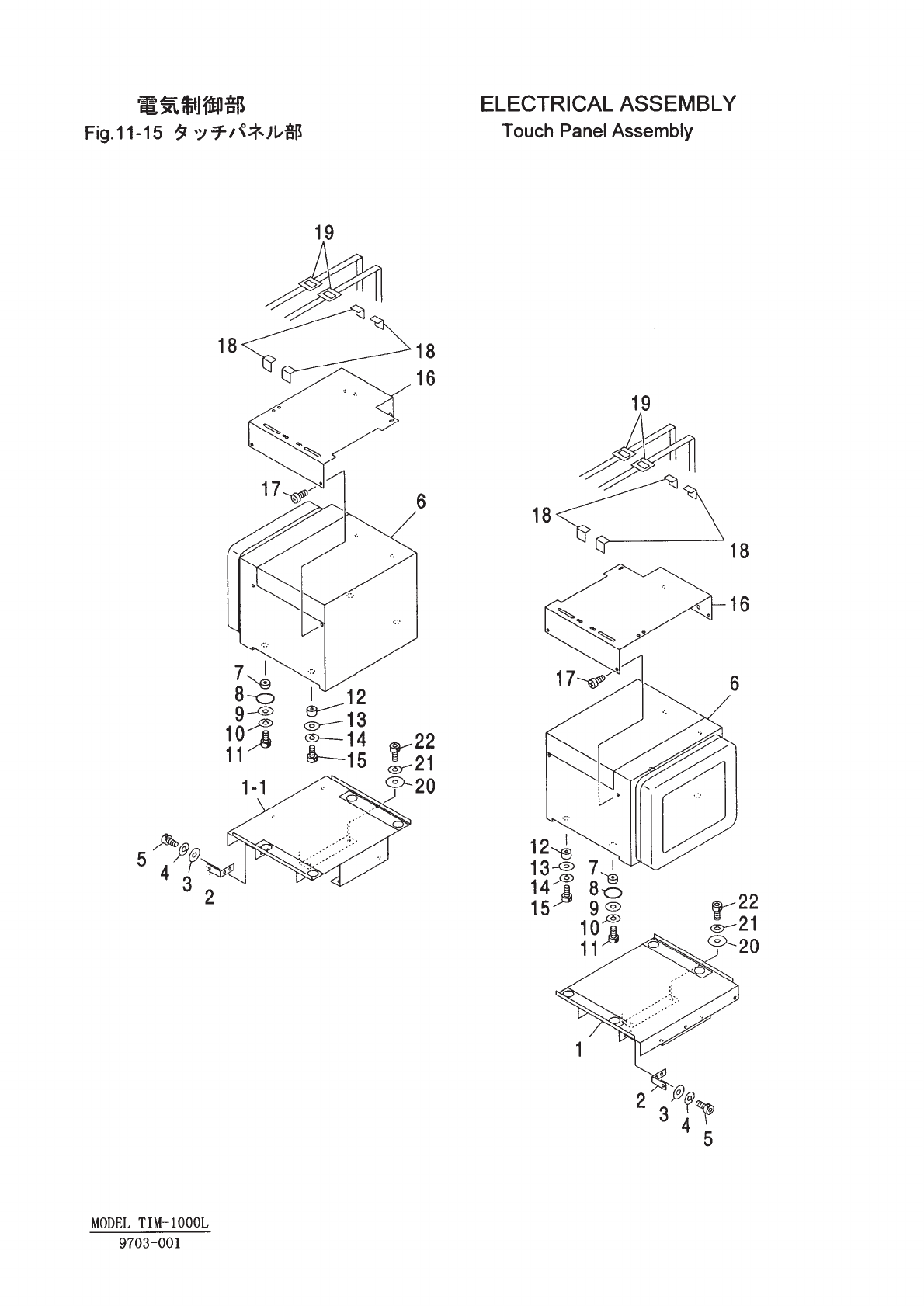

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No. 1 630 061 1151 BRACKET 1 648BC-11B-018 1 -1 630 061 1168 BRACKET 1 648BC-11B-019 2 616 121 6182 BRACKET 2 648BC-11B-030 1CC2FC1005171 3 411 141 4107 WASHER V 5X…
Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 630 061 1151 BRACKET 1 648BC-11B-018
1 -1 630 061 1168 BRACKET 1 648BC-11B-019
2 616 121 6182 BRACKET 2 648BC-11B-030 1CC2FC1005171
3 411 141 4107 WASHER V 5X10X1 4 FW5
4 411 141 6705 WASHER SPR 5 4 SW5
5 630 000 7749 BOLT,HEX-SCT 4 M5X10
6 630 059 7950 UNIT,DISPLAY 2 648GG-11D-501
7 630 058 2352 SPACER 4 648BC-11B-088
8 630 003 3410 SEAL 4 648BC-11H-516
9 411 141 4008 WASHER V 4X9X0.8 4 FW4
10 411 141 2905 WASHER SPR 4 4 SW4
11 630 000 7657 BOLT,HEX-SCT 4 M4X16
12 630 057 9635 SPACER 4 648BC-11B-089
13 411 141 4008 WASHER V 4X9X0.8 4 FW4
14 411 141 2905 WASHER SPR 4 4 SW4
15 630 000 7657 BOLT,HEX-SCT 4 M4X16
16 630 057 4470 COVER 2 648BC-11B-086
17 411 051 2804 SCR TRS 4X8 6 M4X8 TRS
18 630 066 2627 SHEET 4 648BC-11B-087
20 630 001 0237 WASHER 8 BW6
21 411 141 3001 WASHER SPR 6 8 SW6
22 630 000 7893 BOLT,HEX-SCT 8 M6X20
NOTE
11-15
9703-001
MODEL TIM-1000L
