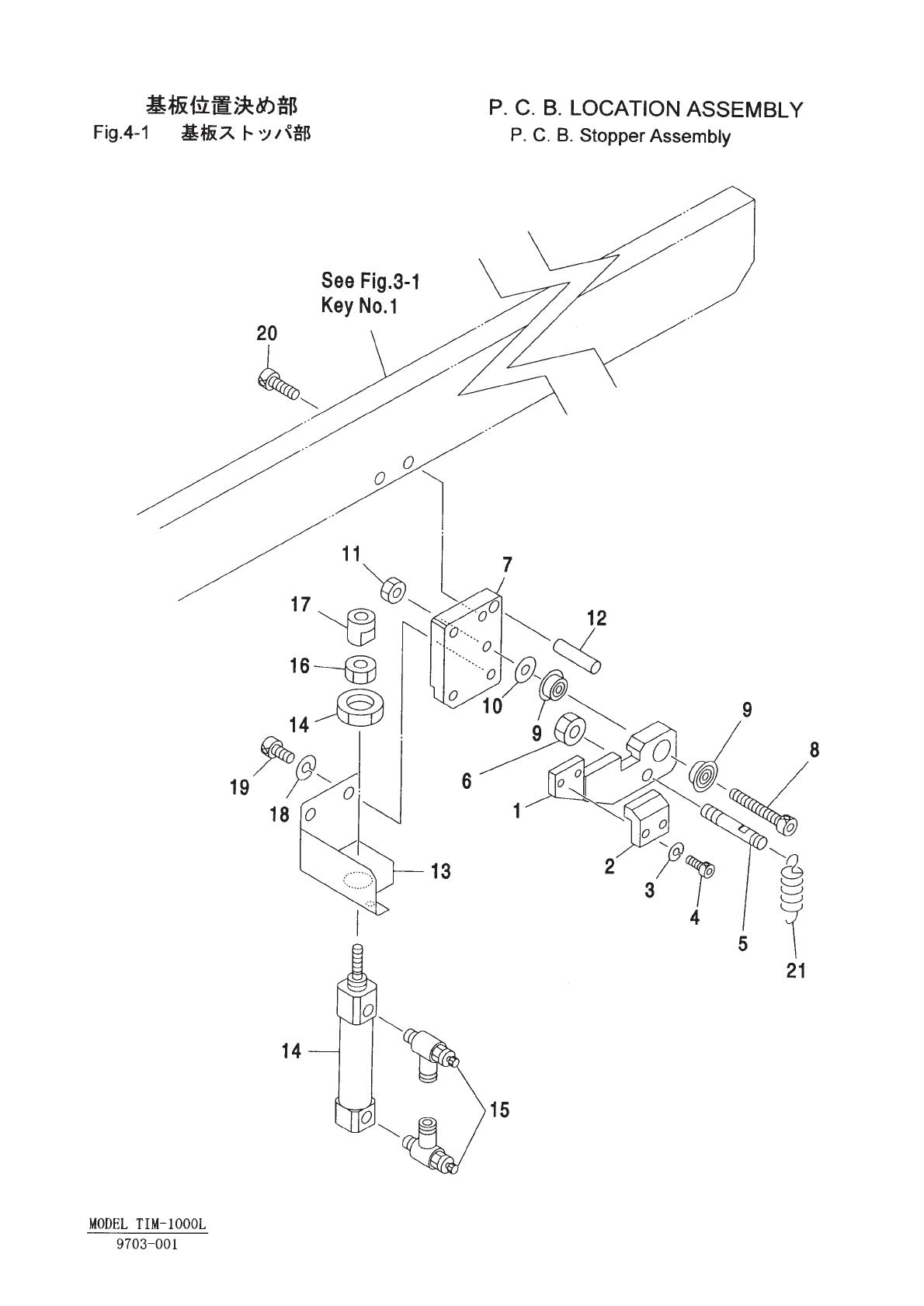

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No. 1 616 121 8193 BRACKET 1 648DD-11B-005 1CC2FC1005411 1 -1 616 121 8209 BRACKET 2 648DD-11B-006 1CC2FC1005421 2 616 112 0113 PHOTO MICRO SENSOR 3 648DD-11H-503 1…
Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 121 8193 BRACKET 1 648DD-11B-005 1CC2FC1005411
1 -1 616 121 8209 BRACKET 2 648DD-11B-006 1CC2FC1005421
2 616 112 0113 PHOTO MICRO SENSOR 3 648DD-11H-503 1CC4V24000050
3 616 111 8981 CONNECTOR 3 648DD-11H-505 1CC4J13000010
4 411 119 1909 WASHER V 3X7X0.5 6 FW3 F
5 411 086 4408 WASHER SPR 3 6 SW3 F
6 411 042 0703 SCR PAN 3X8 6 M3X8 PAN
7 411 141 4008 WASHER V 4X9X0.8 6 FW4
8 411 141 2905 WASHER SPR 4 6 SW4
9 630 000 7619 BOLT,HEX-SCT 6 M4X8
NOTE
3-4
9703-001
MODEL TIM-1000L
