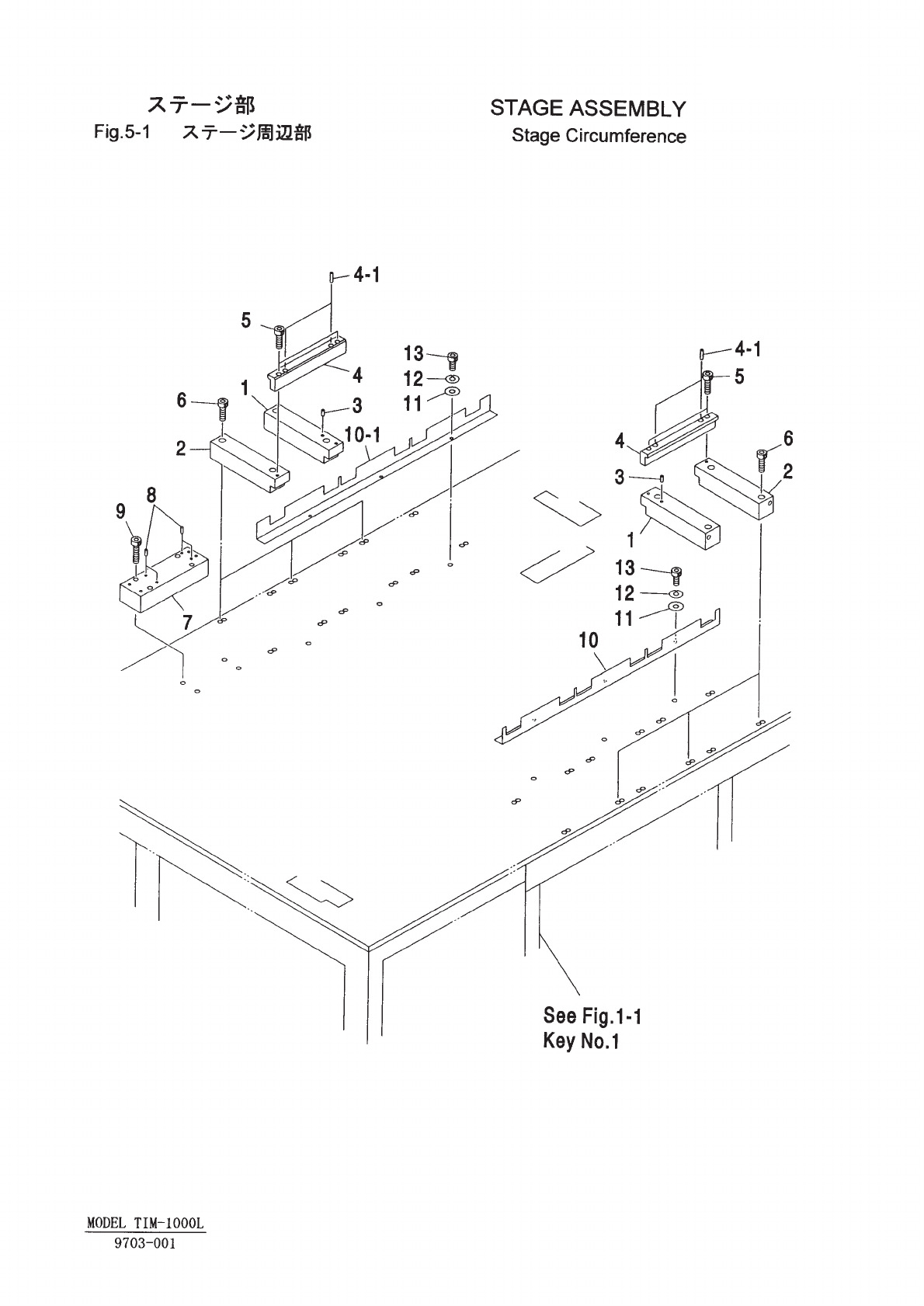

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No. 1 616 121 8445 PLATE 1 648ED-11B-015 1CC2FB0507082 2 616 121 8452 PLATE 4 648ED-11B-016 1CC2FB0507090 3 411 141 4008 WASHER V 4X9X0.8 8 FW4 4 411 141 2905 WASHE…

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.

1 616 121 8445 PLATE 1 648ED-11B-015 1CC2FB0507082

2 616 121 8452 PLATE 4 648ED-11B-016 1CC2FB0507090

3 411 141 4008 WASHER V 4X9X0.8 8 FW4

4 411 141 2905 WASHER SPR 4 8 SW4

5 630 000 7626 BOLT,HEX-SCT 8 M4X10

6 616 121 8469 HOLDER 1 648ED-11B-017 1CC2FC0507111

7 411 141 3902 WASHER V 3X7X0.5 2 FW3

8 411 141 2806 WASHER SPR 3 2 SW3

9 630 000 7527 BOLT,HEX-SCT 2 M3X10

10 630 000 8906 SET SCREW 1 M3X8 SET

11 411 140 9905 NUT HEX 3 1 M3

12 616 121 8476 FLANGE 2 648ED-11B-018 1CC2FE1000400

13 630 000 7763 BOLT,HEX-SCT 4 M5X16

14 616 121 8698 BALL BUSH 2 648ED-11H-511 1CC2GG5001250

15 630 000 7886 BOLT,HEX-SCT 8 M6X16

25 630 000 7626 BOLT,HEX-SCT 2 M4X10

26 616 125 6577 PIN 10 648ED-11B-030 1CC2SD0501150

NOTE

4-4

9703-001

MODEL TIM-1000L
