Running block covers SIPLACE HS-50 2 Change Instructions Running block covers 10/2005 Edition 19 : Insert the fitting pieces. 2 If the fitting pieces are not inserted as shown, the part will be overexpanded. 2 2 2 Abb. 2…
2 Change Instructions Running block covers Running block covers SIPLACE HS-50
10/2005 Edition
18

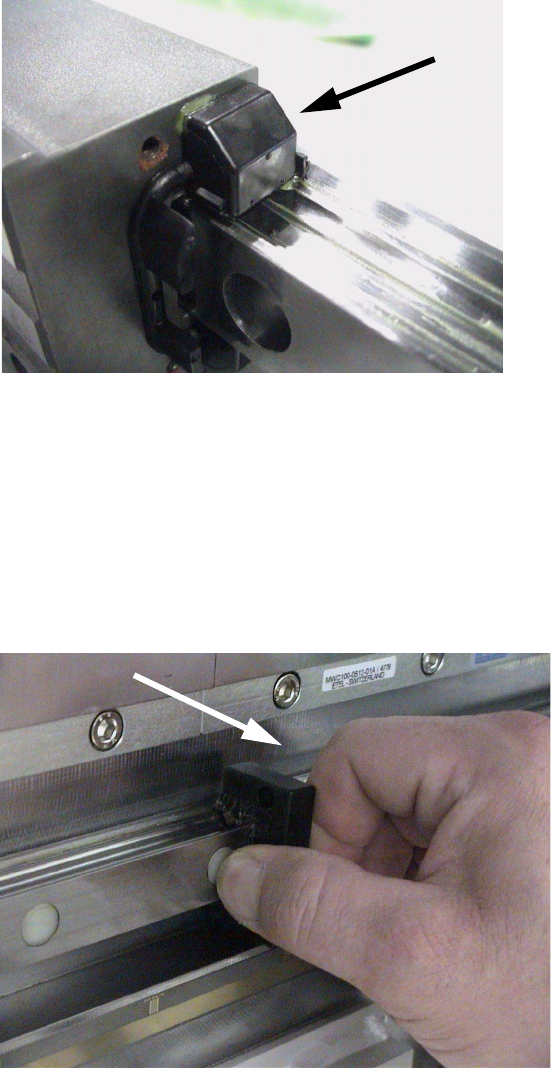

: Inspect the top and bottom ball deflector for possible breakes or pressure points.
2
Abb. 2.10 - 4 Inspection of top and bottom ball deflector
2
If the deflector is damaged the complete running block must be exchanged asap (extra Service
necessary). 2
2
: Pull the old piece from the rail.
2
Abb. 2.10 - 5 Removal of old piece
2
2
Running block covers SIPLACE HS-50 2 Change Instructions Running block covers
10/2005 Edition
19

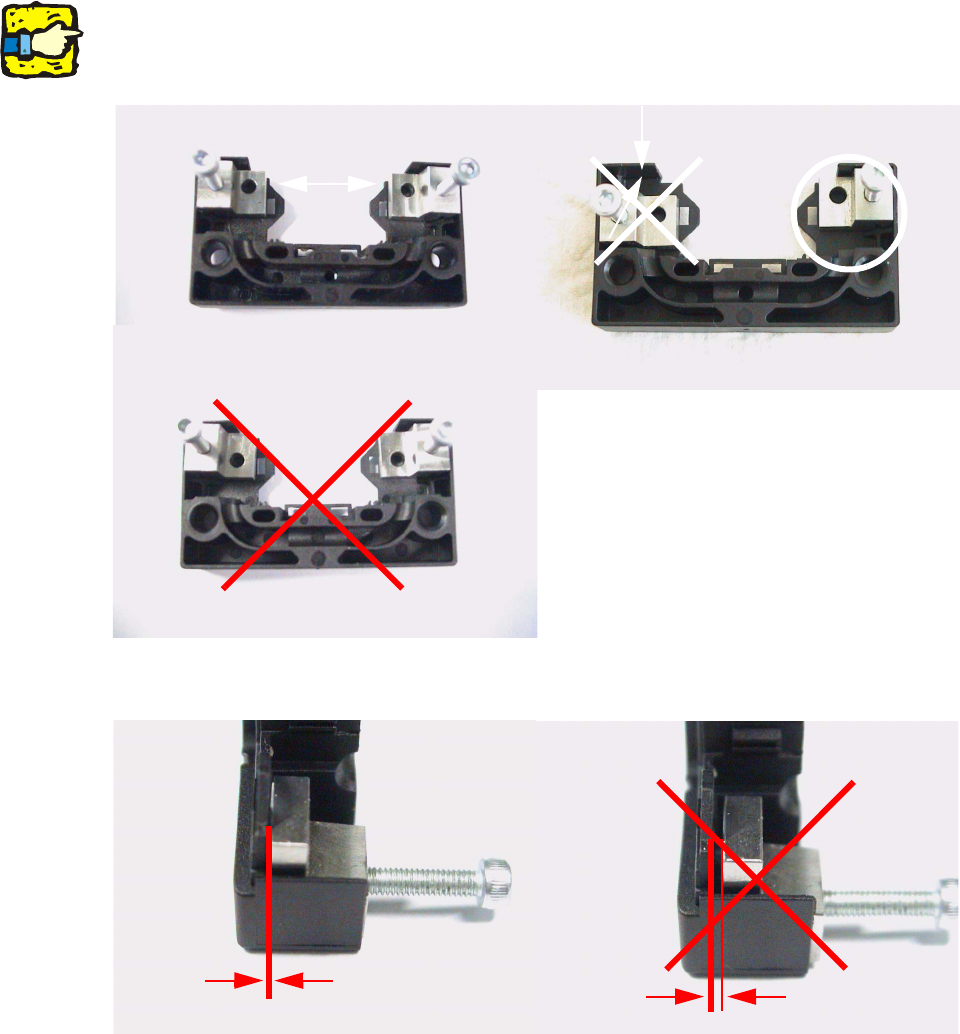

: Insert the fitting pieces.
2
If the fitting pieces are not inserted as shown, the part will be overexpanded. 2
2
2
Abb. 2.10 - 6 Insertion of fitting pieces
2
Abb. 2.10 - 7 Fitting pieces inserted
2
2
2
2 Change Instructions Running block covers Running block covers SIPLACE HS-50
10/2005 Edition
20
The fitting pieces must touch the ground, otherwise the cover will be deformed irregularly. 2

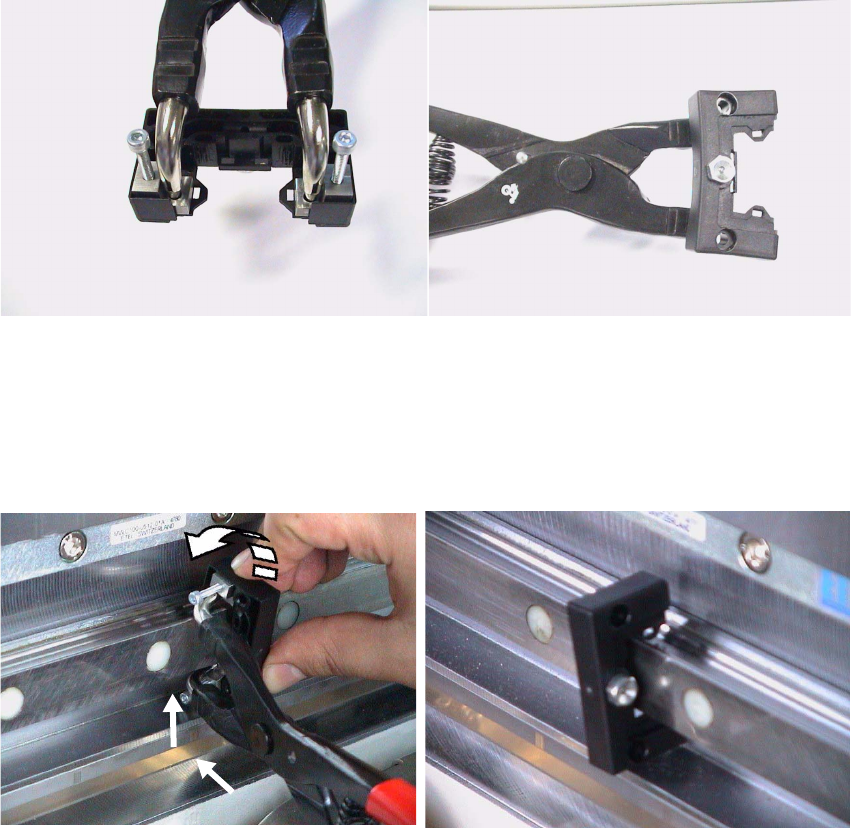

: Insert tong and expansion of cover.
(use only special prepared tong with end stop).
To assemble the cover press tong until stopper.
2
Abb. 2.10 - 8 Insertion of tong and expansion of cover
2
: Assemble guiding cover on rail.
First thread the lower part and then the upper part.
2
Abb. 2.10 - 9 Assembly of guiding cover
2
The material of the cover stretches back into starting position after 5 minutes. 2
