Running block covers SIPLACE HS-50 2 Change Instructions Running block covers 10/2005 Edition 21 : Extract fitting pieces. 2 Abb. 2.10 - 10 Extraction of fitting pieces : Slide cover on runner block. 2 Abb. 2.10 - 1 1 Sl…
2 Change Instructions Running block covers Running block covers SIPLACE HS-50
10/2005 Edition
20
The fitting pieces must touch the ground, otherwise the cover will be deformed irregularly. 2
: Insert tong and expansion of cover.
(use only special prepared tong with end stop).
To assemble the cover press tong until stopper.
2
Abb. 2.10 - 8 Insertion of tong and expansion of cover
2
: Assemble guiding cover on rail.
First thread the lower part and then the upper part.
2
Abb. 2.10 - 9 Assembly of guiding cover
2
The material of the cover stretches back into starting position after 5 minutes. 2
2
2
2
Running block covers SIPLACE HS-50 2 Change Instructions Running block covers
10/2005 Edition
21
: Extract fitting pieces.
2

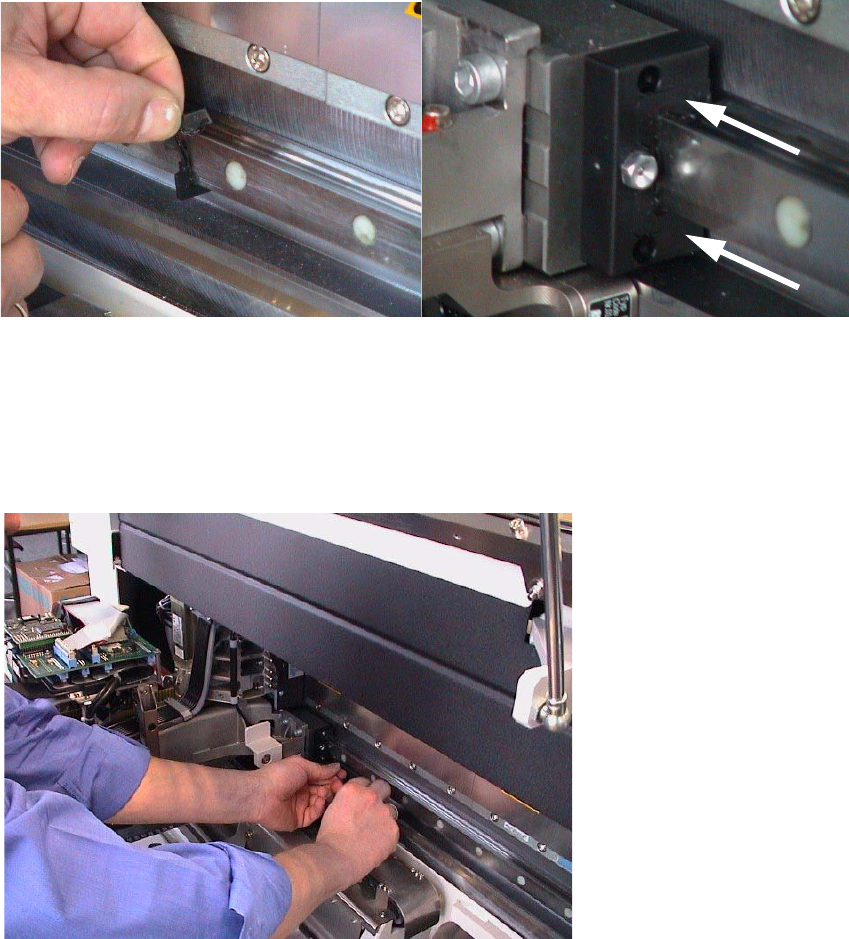

Abb. 2.10 - 10 Extraction of fitting pieces
: Slide cover on runner block.
2
Abb. 2.10 - 11 Sliding of cover on runner block
2

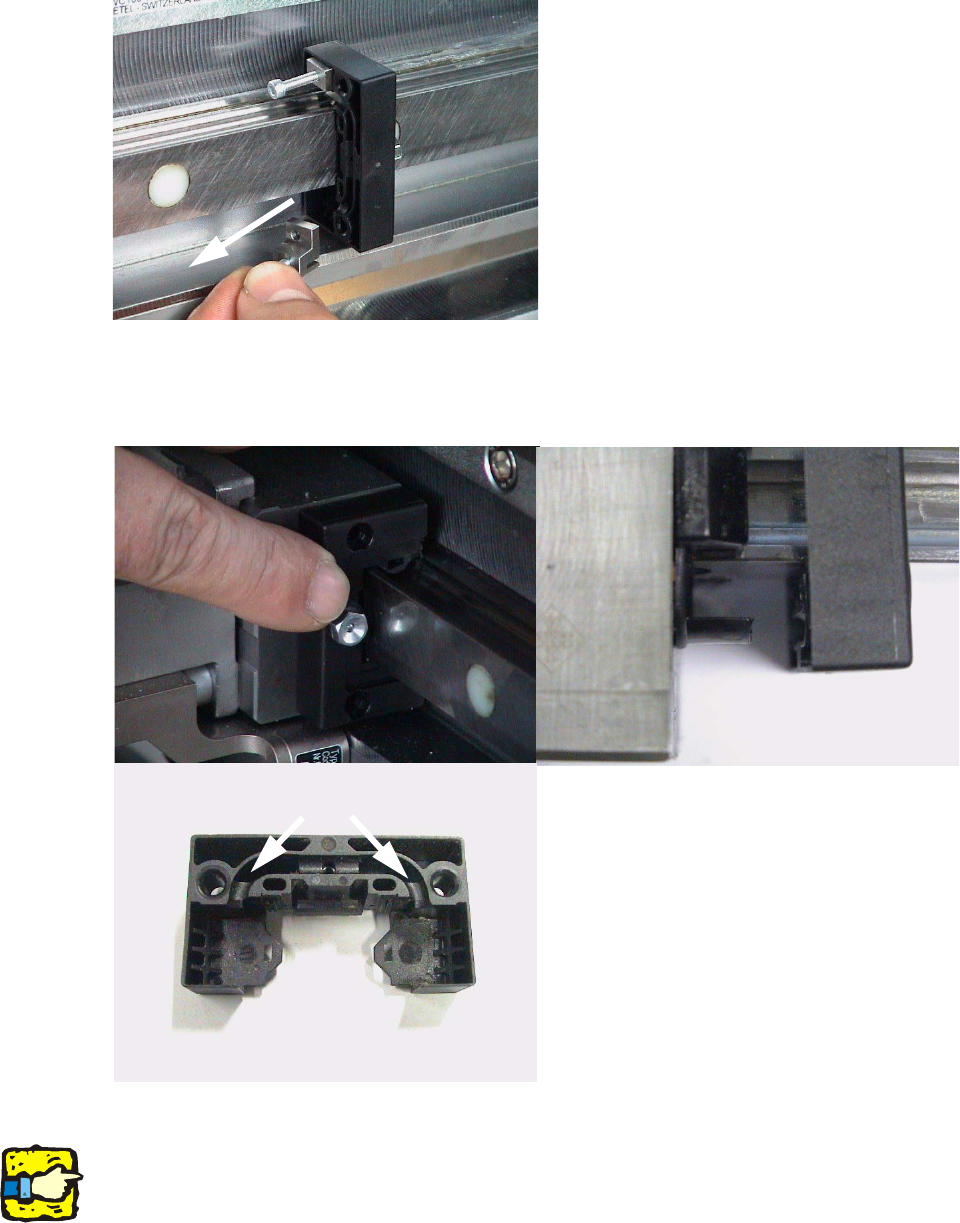

Pay attention for correct insert of lubrication channel in the corresponding grooves in cover. 2
2
Grooves for lubrication channels
2 Change Instructions Running block covers Running block covers SIPLACE HS-50
10/2005 Edition
22
: Clip front seal over guiding rail and snap it in cover.
2
Abb. 2.10 - 12 Clip front seal
2
: Insert and tighten new screws (please note: the new screws already equipped with screw lok-
king varnish).
2
Abb. 2.10 - 13 Insertion of new screws
