6.3 Star Head Functions 80S
NOTE
Since the functions and menus are identical for both gantries, all of the functions will be explained on the basis
of gantry 1.
Proceed as follows to select the menu "Star head":
●
In the menu "Single functions" use the cursor keys to select the menu item "Gantry 1".
●
Press the
Return key
. On the screen the menu "Gantry 1" will appear.
●
In the menu "Gantry 1" use the cursor keys to select the menu item "Star head".
●
Press the
Return key
. The screen then displays the menu "Star head".
Fig. 6.3.1
SI80 V 10.x
Cluster:
Rüstung :
BE - Zuführung Display errors
Confirm errors
Machine options
Software options Vision system
Error
State
Action
:
:
:
Single functions
Transportfkt.
Breitenverstell.
Gantry 1
Nullimpuls anfahren
Portal - Referenzlauf
Kopf
Prüfgerät
Star head
Head functions
Nozzle changer SP
Star nozzle config.
CRDL
Single functions
6 Single Functions SIPLACE 80S/F/G User’s Manual
6.3 Star Head Functions 80S Edition 07/97 from Software Version SR.010.xx
6 - 16
6.3.1 Head Functions Menu
Under the "Head functions" menu it is possible to individually activate the functions linked with the head, such
as screwdriver, nozzle offset, and vacuum test.
NOTE
When the cover is open the head functions can only be executed with the key-operated switch turned.
Proceed as follows to select the menu "Head functions":
●
In the menu "Star head" use the cursor keys to move the cursor bar over the menu item "Head functions".
●
Press the
Return key
. The screen then displays the menu "Head functions".

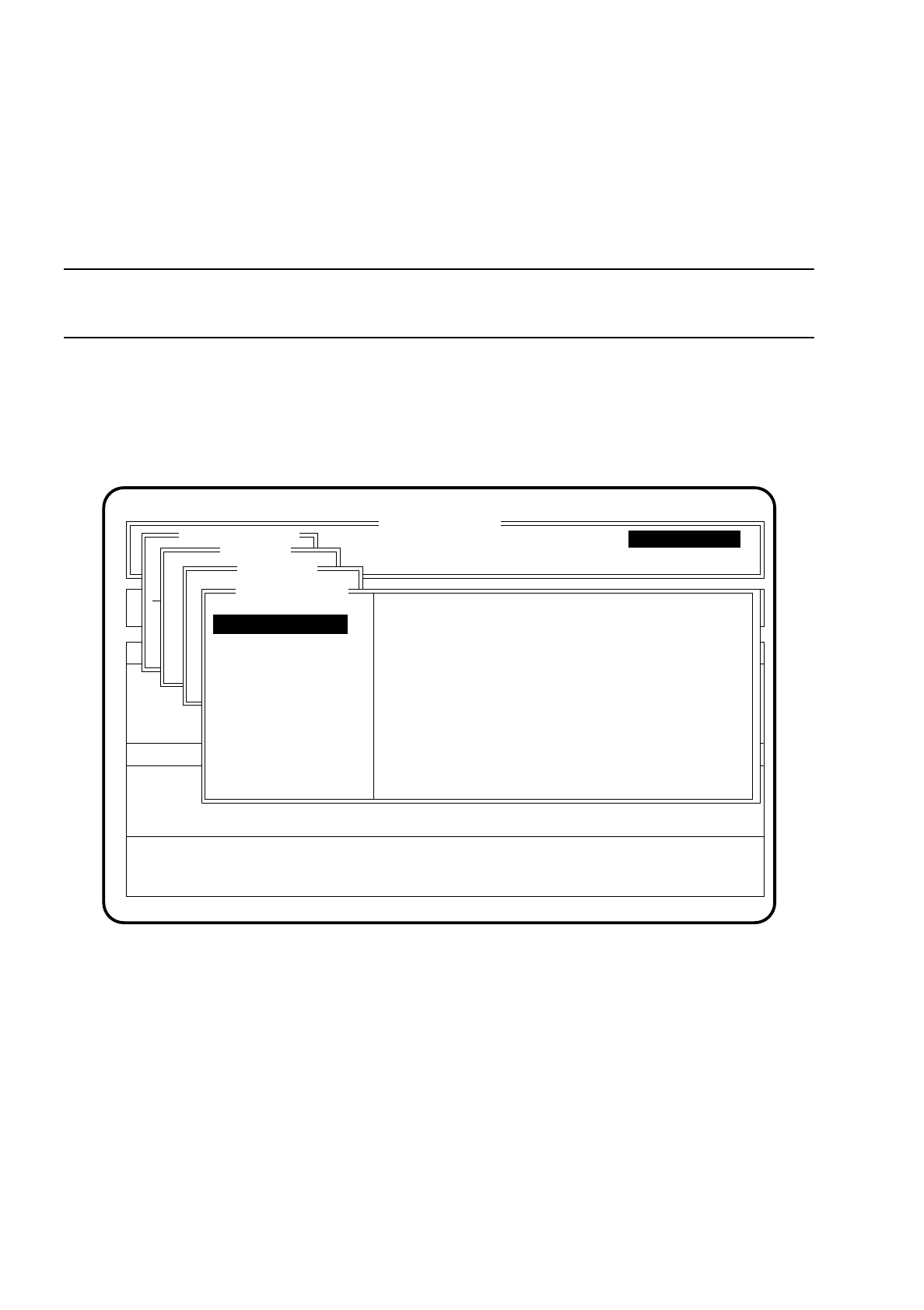

Fig. 6.3.2
The menu "Head functions" is divided into two parts. In the lefthand part of the window the possible functions
are listed. Within this list it is possible to select the individual functions using the
cursor keys
. After the
Return
key
has been pressed the selected function will be started.
The righthand part of the window is used for displaying measured values. It is the current star position which is
always displayed.
●
To quit the menu press the
Esc key
. The program returns you directly to the menu "Star head".
SI 80 V 10.x
Component feeding Display errors
Confirm errors
Machine options
Software options Vision system
Error
State
Action
:
:
:
Single functions
Transportfkt.
Breitenverstell.
Gantry 1
Single functions
Star head
Star position top: 8
Star position bottom: 2
Head functions
Segment reject pos.
Measure nozzle
Measure nozzle offset
Actuate DP1-axis
Star step
Star in position 1
Actuate DP2-axis
Actuate centering jaws
Segment pick-up pos.
Vacuum test
Head reference run
Segment reject pos.
Single functions
Star position, top:
Star position, bottom:
8
2
