SIPLACE 80S/F/G User’s Manual 8 Component Supply Edition 07/97 from S oftware Version SR.010.xx 8.3 Changeable Components Tables 8 - 11 8.3 C hangea ble Comp onents Tables 8.3.1 Function The SIP LACE 80S /F placement m a…
8 Component Supply SIPLACE 80S/F/G User’s Manual
8.2 Installation - General Information Edition 07/97 from Software Version SR.010.xx
8 - 10

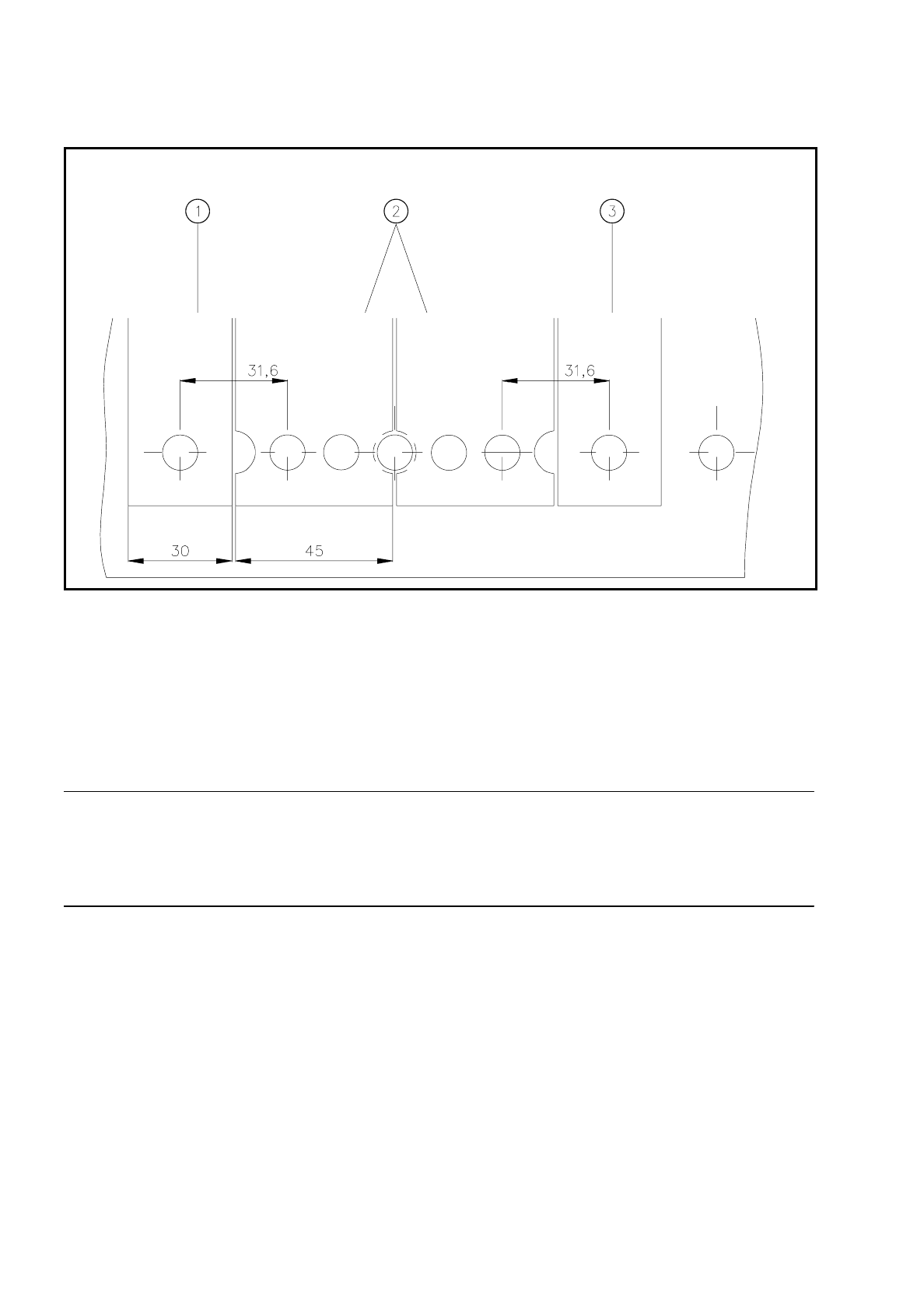

Fig. 8.2.2 Installation of modules with width 45 mm
- Key to Fig. 8.2.2
➀
Feeder module width 30 mm
➁
Feeder module width 45 mm
➂
Feeder module width 30 mm
●
Make sure that the module is seated securely on the components table.
●
Plug the module plug into the socket which is located under the parking location.
NOTE
Make sure that you do not fail to use the socket outlet which belongs to the parking location for plugging in the
module since control pulses for some modules are transmitted via this socket. If this is not observed, the con-
veyor may not work properly due to the wrong socket being used.
8.2.1.3 Final Activities
●
Close the covers and switch the control unit back on.
●
If applicable, perform a refill check (Section 5.3).
●
Proceed with placement.
SIPLACE 80S/F/G User’s Manual 8 Component Supply
Edition 07/97 from Software Version SR.010.xx 8.3 Changeable Components Tables
8 - 11
8.3 Changeable Components Tables
8.3.1 Function
The SIPLACE 80S/F placement machines are equipped with changeable components tables. These compo-
nents tables can be changed with relatively little effort.
8.3.2 Changing Component Tables
8.3.2.1 Removal
WARNING
OO
When you change the component table, always follow the sequence for removing the plugs from the commu-
nication unit and then connecting them again as described below. If you do not follow the specified order,
faults may occur in the component table.
8.3.2.2 Tools Required
WARNING
OO
Move the portal out of the range of the component table over the PCB transport. This will prevent the possibil-
ity of a head crash.
DANGER
OOO
Press the emergency stop button.
●
Remove the plugs from the power supply for the component table.
➁
.
●
Remove the communication plug
➀.
●
If necessary, remove the connector for the compressed air supply to the component table
➂.
●
Push the platform truck under the component table (A).
●
Loosen the two hexagon socket head screws for fixing the component table
➄.
From item number
Hexagon socket spanner, set
Component table platform truck 00123141-01
8 Component Supply SIPLACE 80S/F/G User’s Manual
8.3 Changeable Components Tables Edition 07/97 from Software Version SR.010.xx
8 - 12
●
Open the horizontal tensioner
➆
.
●
Carefully raise the component table using the platform truck until the centering pins
«
are outside the hole
s.
●
Then pull out the component table.

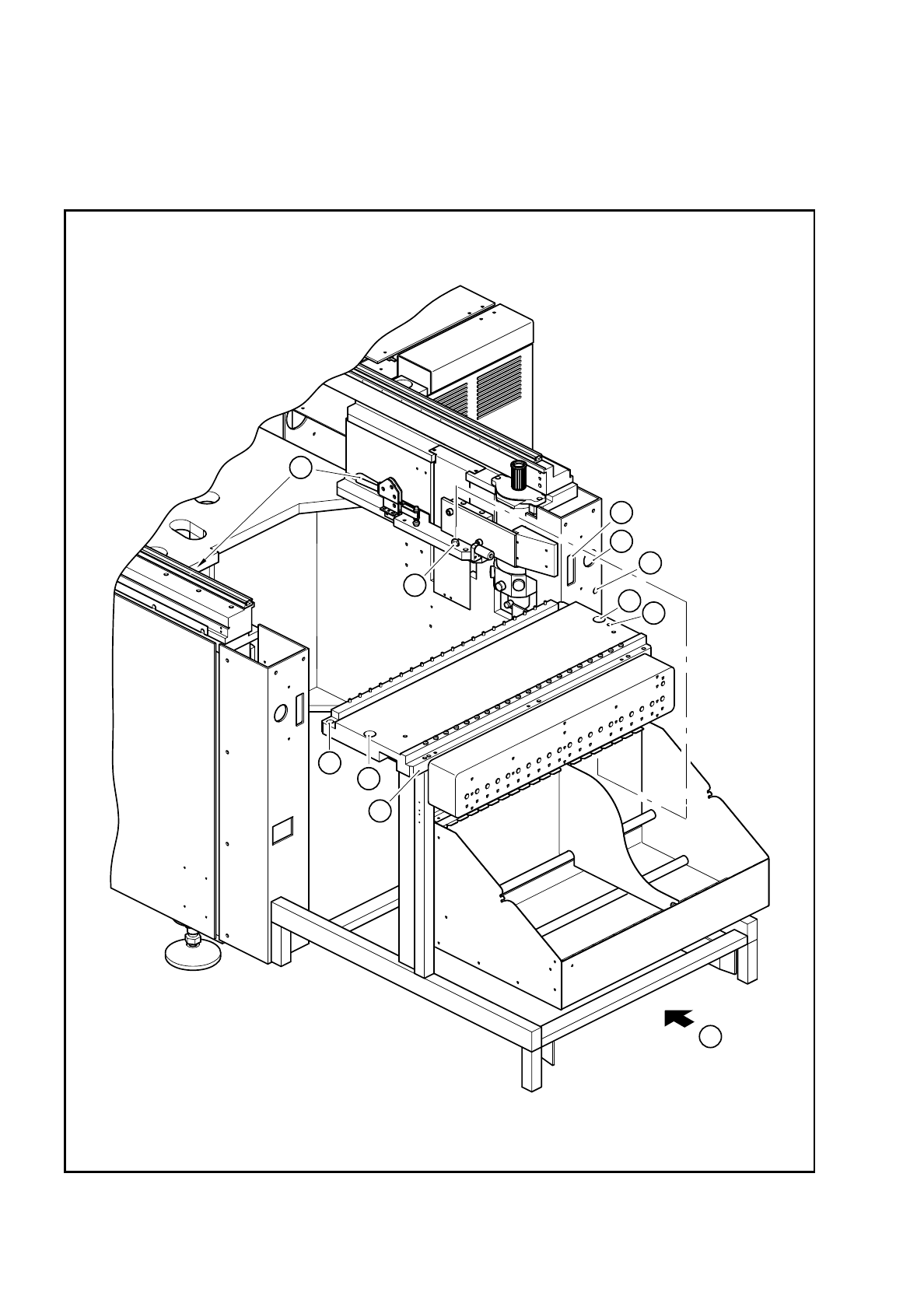

Fig. 8.3.1 Removal of the component table
4
5
3
1
2
4
5
6
8
7
A
