8 Component Supply SIPLACE 80S/F/G User’s M anual 8.3 Changeable Components Tables Ed ition 07/97 from Software Version SR.010.xx 8 - 14
SIPLACE 80S/F/G User’s Manual 8 Component Supply
Edition 07/97 from Software Version SR.010.xx 8.3 Changeable Components Tables
8 - 13
- Key to Fig. 8.3.1
8.3.2.3 Installation
●
Make sure that the contact surfaces of the component table and machine are clean (
➈
and
➉
).
●
Pick up a component table with the lifting truck and raise the component table until it will not catch any-
where while being slid into the machine.
●
Carefully push the component table into the machine until the centering pin locating holes on the compo-
nent table are above the centering pins (
➃
and
➇
).
●
Carefully lower the component table until the component table rests on the machine base mounting.
●
Close the clamping levers (
➆
).
●
Then plug in the flat plug for the communication signals.
●
Insert and tighten the two hexagon socket head screws
➄
.
●
Plug in the round power supply plug.
●
Close the protective covers.
●
Release the EMERGENCY-STOP button.
➀
Connection for the communication interface
➁
Connection for the power supply to the component table
➂
Compressed air connection
➃
Holes for the centering pins
➄
Hexagon socket head screws for fixing the component table
➅
Supporting surface for the component table
➆
Horizontal tensioner
➇
Centering pins
➈
Contact surfaces for the component table
➉
Contact surfaces for the machines
A Push in the component table platform truck
8 Component Supply SIPLACE 80S/F/G User’s Manual
8.3 Changeable Components Tables Edition 07/97 from Software Version SR.010.xx
8 - 14
SIPLACE 80S/F/G User’s Manual 8 Component Supply
Edition 07/97 from Software Version SR.010.xx 8.4 Empty Tape Cutter on SIPLACE 80S-15/F3 Automatic Placement Machines
8 - 15
8.4 Empty Tape Cutter on SIPLACE 80S-15/F3 Auto-
matic Placement Machines
8.4.1 General
The SIPLACE 80S-5/F3 automatic placement system is equipped with a empty tape cutter at the installation
locations for the two component tables. The empty tape cutter cuts up the waste tape.
The cut pieces of tape drop into the tape container beneath the component table.
●
Empty the tape container on a daily basis.

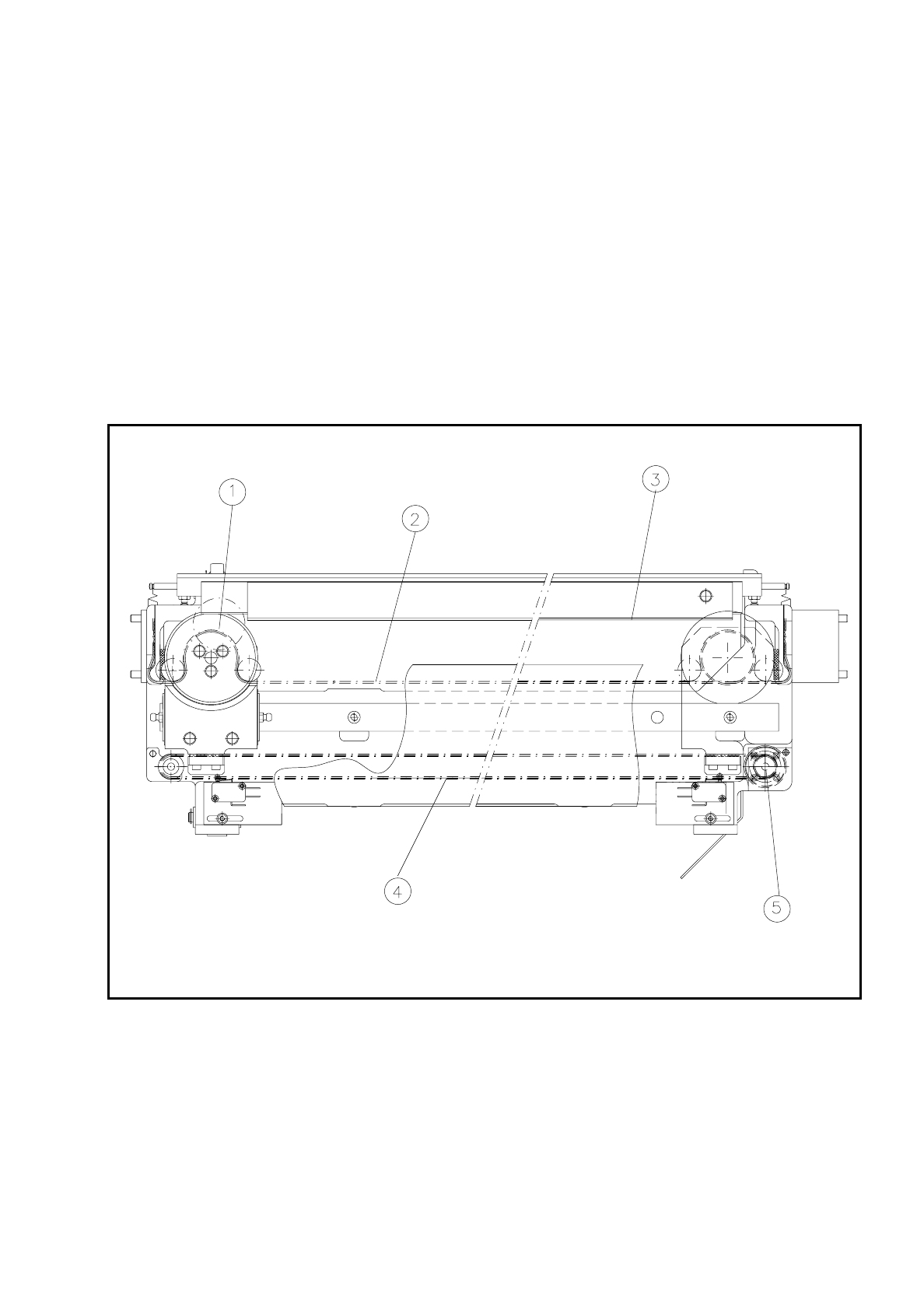

Fig. 8.4.1 Tape cutter
- Key to Fig. 8.4.1
➀
Cutter wheel
➁
Toothed belt for cutter wheel
➂
Cutting edge
➃
Drive belt
➄
Drive motor
