8 Component Supply S IPLACE 80S/F/G User’s Manual 8.5 Reel Container (New Group) Edition 07/97 from Software Version SR.010.xx 8 - 18 NOTE With large tape modul e (> 5") the p lug-in ax es must b e used to ens ur…
SIPLACE 80S/F/G User’s Manual 8 Component Supply
Edition 07/97 from Software Version SR.010.xx 8.5 Reel Container (New Group)
8 - 17
8.5 Reel Container (New Group)
8.5.1 General Information
Tapes with a reel diameter of 15" can be used.
8.5.2 Overview

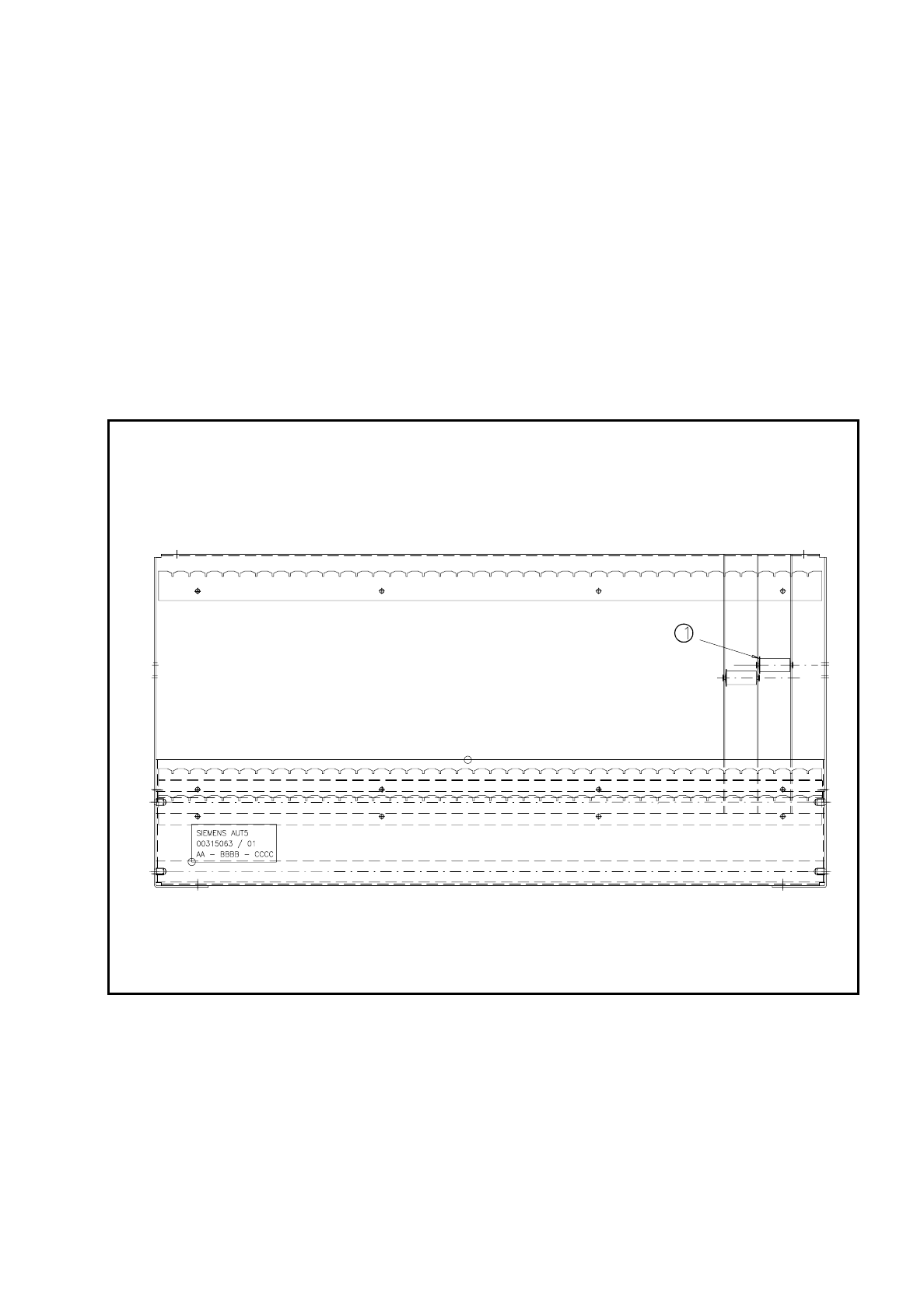

Fig. 8.5.1 Reel container - top view
- Key to Fig. 8.5.1
➀
Insertion spindles are allocated to the tape modules
–
The distance between spacers is halved (15.8 mm)
–
Reel diameters of up to 15" can be used
–
Use only 15" reels in the upper slot or seating on the rods
–
Dividing walls are backward-compatible
8 Component Supply SIPLACE 80S/F/G User’s Manual
8.5 Reel Container (New Group) Edition 07/97 from Software Version SR.010.xx
8 - 18
NOTE
With large tape module (> 5") the plug-in axes must be used to ensure that the conveyors are operationally
reliable.
Fig. 8.5.2 Reel container - side view (reel inserted)
SIPLACE 80S/F/G User’s Manual 8 Component Supply
Edition 07/97 from Software Version SR.010.xx 8.6 Wafflepack Changer
8 - 19
8.6 Wafflepack Changer
8.6.1 Overview
Fig. 8.6.1 Wafflepack changer on SIPLACE 80F3
- Key to Fig. 8.6.1
➀
Wafflepack changer on location 1
➁
Wafflepack changer
➂
Location 2
➃
IC placement head
➄
Revolver head
