8 Component Supply SIPLACE 80S/F/G User’s Manual

8.5 Reel Container (New Group) Edition 07/97 from Software Version SR.010.xx

8 - 18

NOTE

With large tape module (> 5") the plug-in axes must be used to ensure that the conveyors are operationally

reliable.

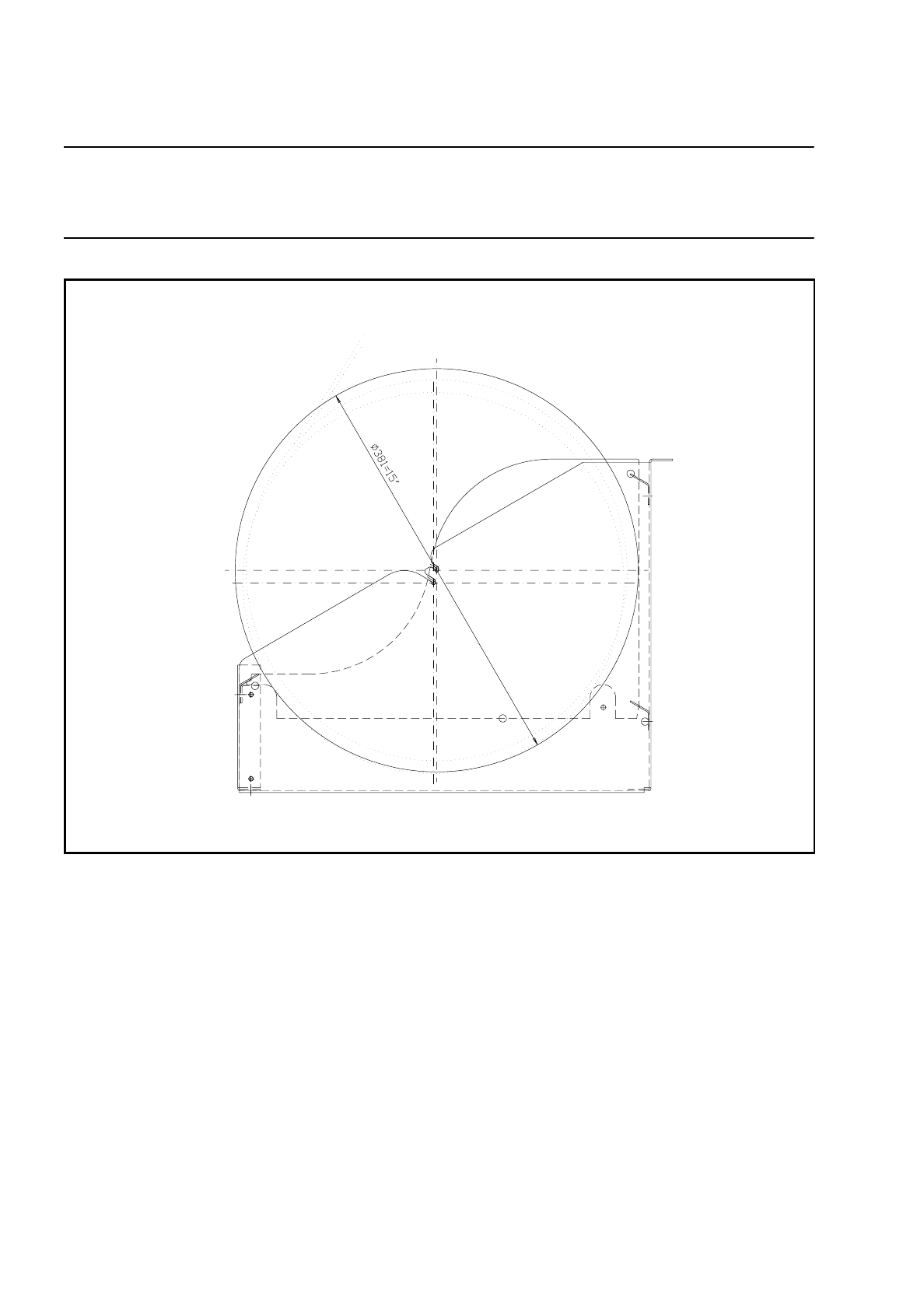

Fig. 8.5.2 Reel container - side view (reel inserted)

SIPLACE 80S/F/G User’s Manual 8 Component Supply

Edition 07/97 from Software Version SR.010.xx 8.6 Wafflepack Changer

8 - 19

8.6 Wafflepack Changer

8.6.1 Overview

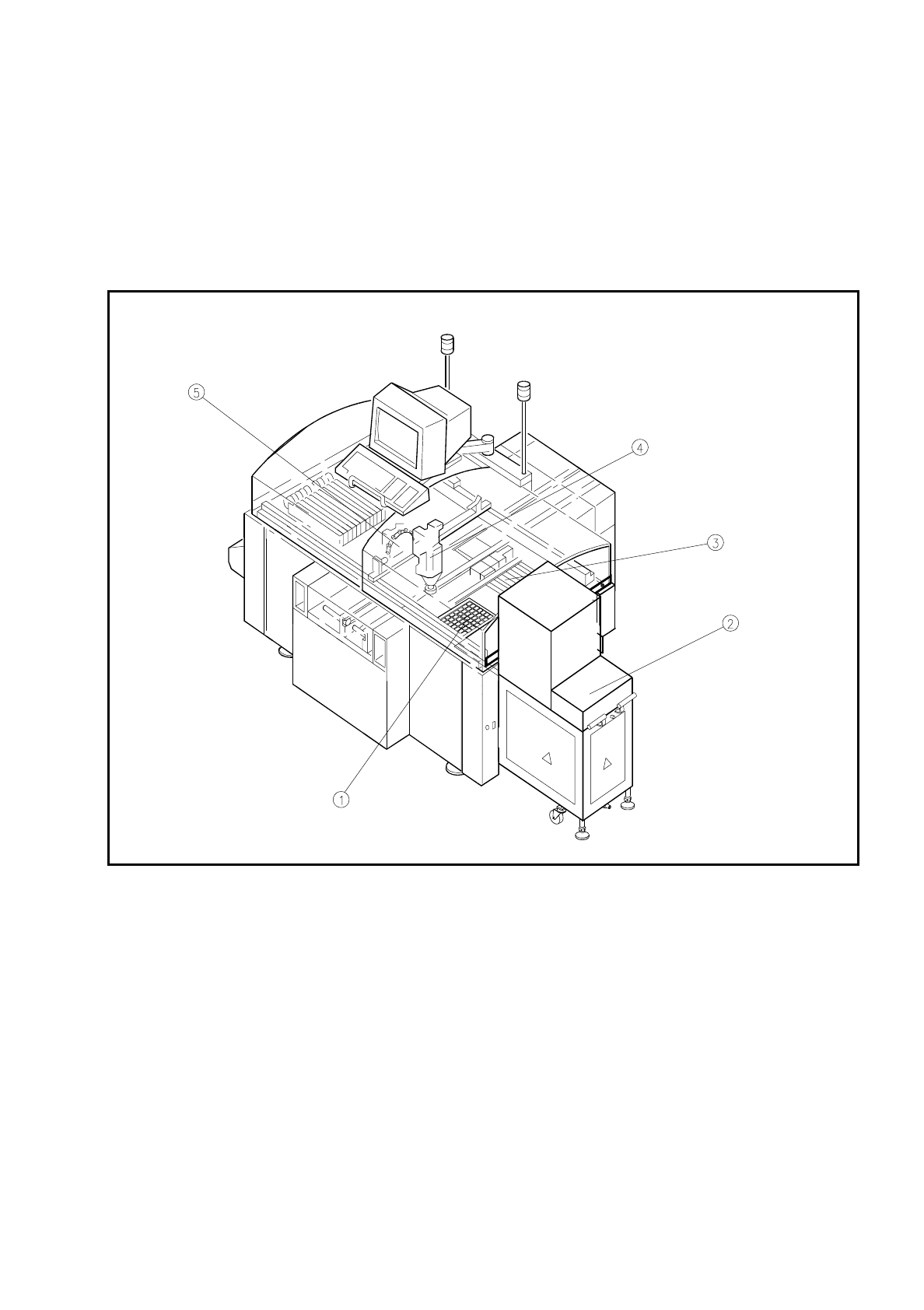

Fig. 8.6.1 Wafflepack changer on SIPLACE 80F3

- Key to Fig. 8.6.1

➀

Wafflepack changer on location 1

➁

Wafflepack changer

➂

Location 2

➃

IC placement head

➄

Revolver head

8 Component Supply SIPLACE 80S/F/G User’s Manual

8.6 Wafflepack Changer Edition 07/97 from Software Version SR.010.xx

8 - 20

8.6.2 General

The use of flatpack ICs is gaining more and more importance in the manufacture of printed circuit boards.

These components have now reached the point where they are almost always delivered on magazine trays

(wafflepack magazines).

The space taken up by magazine trays is however relatively high when compared with the components den-

sity. In addition, due to their low holding capacity, the wafflepack magazines must frequently be changed and if

this has to be done by hand this necessarily involves interrupting the placement process.

But when a wafflepack changer is used there is no time lost unnecessarily in the storing and automatic chang-

ing of the wafflepack magazines. Programmed access to up to 28 freely selectable wafflepack magazines also

increases the range of available components.

NOTE

The wafflepack changer is located on the lefthand side of the SIPLACE 80 F table.

The wafflepack changer does not require the entire width of the components table. On this side of the table 10

locations remain free which can be used for the 20 x 8 mm tape module, for example.
