SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.3 Machine Base
9 - 17
9.3 Machine Base
DANGER
∆
!
∆
!
∆
!
Do not carry out any cleaning work with alcohol in the presence of naked lights or fire!
NOTE
Carry out all maintenance work on the machine base in the same way for the SIPLACE 80S, the 80F, and G
machines, as described below unless the text specifies otherwise for a particular machine type.
9.3.1 Control Unit or Servo Unit
9.3.1.1 Cleaning and Replacing the Filter Mats
NOTE
If the filter mats are dirty, adequate cooling of the electronics modules will no longer be assured.
Spare parts you may need
2 filter mats 230 x 260, Item no. 00315209-01
DANGER
OOO
Switch the automatic placement system off at the main switch and disconnect from the power supply.
●
Open the doors in the machine base (see Fig. 9.3.1).
●
Pull the filter mats out (under the servo and control units) between the unit and base plate of the machine
base.
●
Lift or bend open the grille cover of the filter mats.
●
Clean the filter mats thoroughly on both sides with the vacuum cleaner.
●
If you detect damage insert a new filter mat between the grilles.
●
Close the grille cover and slide it back in place beneath the unit.
●
Close the control and servo cabinet doors and switch the machine on at the main switch.
●
Make sure that the fan motors are functioning by holding a sheet of paper, for example, under the opening
in the base plate.
9 Maintenance SIPLACE 80S/F/G User’s Manual
9.3 Machine Base Edition 07/97 from Software Version SR.010.xx
9 - 18
9.3.2 PCB Handling
9.3.2.1 Cleaning the Conveyor Belts
NOTE
Components jammed in the conveyor area can easily cause the conveyor to jam or to boards being clamped
unevenly, which in turn can lead to an interruption of the placement sequence.
DANGER
∆
!
∆
!
∆
!
Switch the automatic placement system off at the main switch and disconnect from the power supply.
●
Switch the machine off at the main switch and open the safety hoods!
●
Check to see whether any components have got jammed in the area of the conveyor belts on either the
fixed or mobile sides of the conveyor, particularly between the clamping rail and the conveyor and also in
the area of the toothed-belt pulleys of the drive unit.
●
Clean off the conveyor belts with the vacuum cleaner and use tweezers to remove jammed components.
9.3.2.2 Maintenance of the Width Adjustment Device
DANGER
∆
!
∆
!
∆
!
Do not carry out any cleaning work with alcohol in the presence of naked lights or fire!
●
Preparatory work
●
Select:
PCB transport
→
Conveyor width
and make the corresponding choice to move the board
conveyor to its most open position.
DANGER
∆
!
∆
!
∆
!
Switch the automatic placement system off at the main switch and disconnect from the power supply.
●
Open the safety hoods.
●
Cleaning the recirculating ball screws and slide faces
●
Clean off the following faces (see Fig. 9.3.1) with the vacuum cleaner thoroughly:
–
the circumference of the recirculating ball screws,
–
the slide faces of the two flat guideways,
–
the bearing surfaces of the two guide rails and the entire area between the transport modules.
SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.3 Machine Base
9 - 19

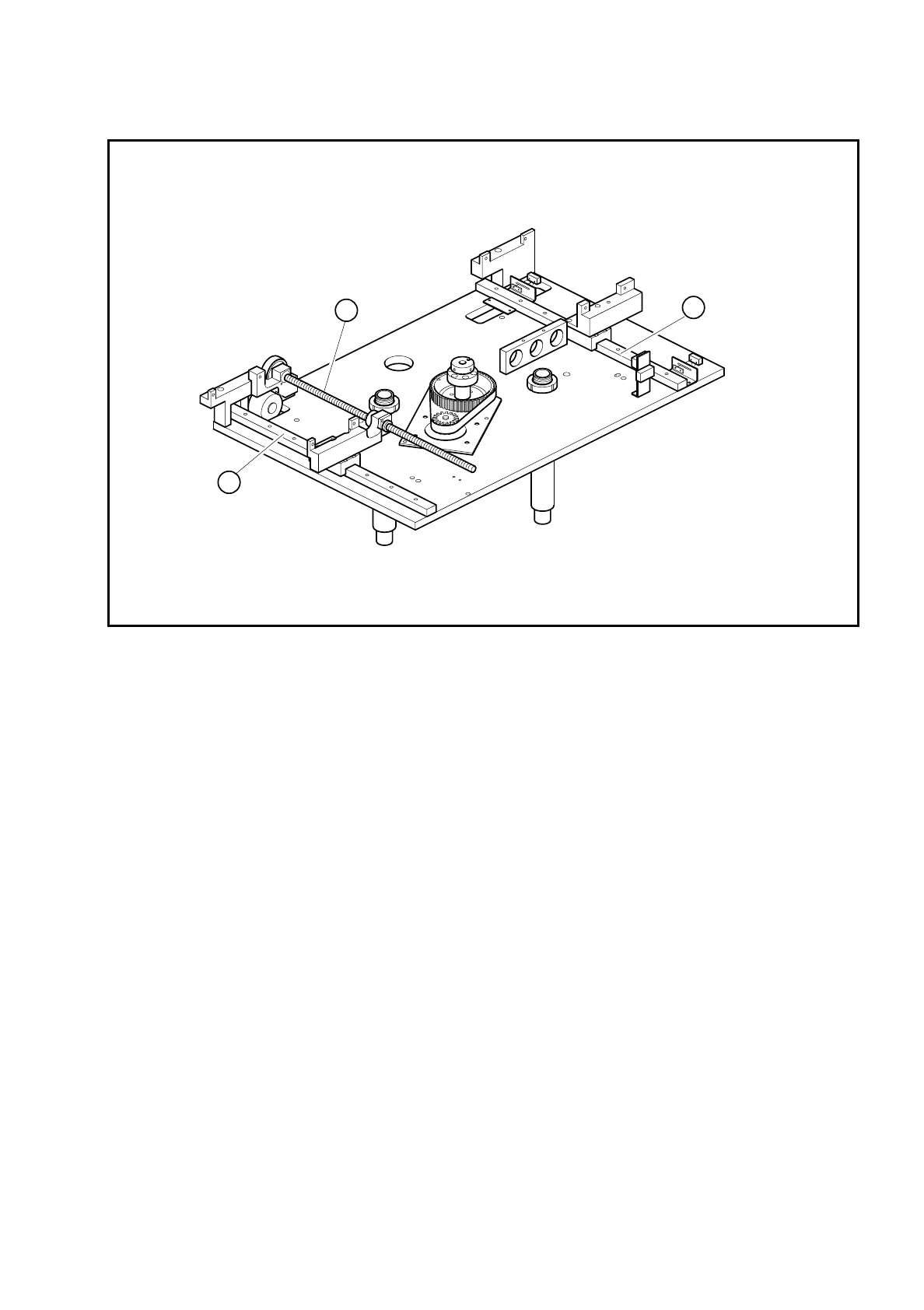

Fig. 9.3.1 Maintaining the width adjustment device (PCB transport modules not shown)
Key to
Fig. 9.3.1
1 Spherical rotating liners for width adjustment
2 Flat guideways
●
Cleaning and oiling the recirculating ball screws of the width adjustment device
●
Clean thoroughly the recirculating ball screws of the width adjustment device by pulling a cloth soaked
in alcohol through each of the threads in turn.
●
If necessary use a brush soaked in alcohol. The bearings should not come into contact with alcohol.
●
After drying, apply a light and even film of watchmaker’s oil to the circumference of the spherical rotat-
ing liners.
●
Cleaning and greasing the flat guideways of the width adjustment
●
Rub the slide faces of the flat guideways with a lint-free cloth soaked in alcohol.
●
Grease these slide faces evenly and sparingly with Staburags N12. Remove excess grease.
1
2
2
