SIPLACE 80S/F/G User’s Manual 9 Maintenance Edition 07/97 from S oftware Version SR.010.xx 9.5 Revolver Head, S egment Version 2 (New N ozzle Seat) 9 - 53 ● Note: The des cription her e applies t o maintena nce of the st…
9 Maintenance SIPLACE 80S/F/G User’s Manual
9.5 Revolver Head, Segment Version 2 (New Nozzle Seat) Edition 07/97 from Software Version SR.010.xx
9 - 52
9.5.4.2 Cleaning and Replacing the Drive Belt
NOTE
If the O-ring drive belt of the turning station is not absolutely greasefree, transmission of the rotary movement
to the segment (driving disk) will not be optimal. This will result in turn in various error messages, such as for
example Nos. 3, 4, and 5.
Clean the O-ring drive belts only after maintenance of the swivel-in levers.
Spare part
O-ring (drive belt), 19 x 1.5 E70 B243E, Item No. 00327165S01
●
Check beforehand the O-ring drive belt (see Fig. 9.5.5). If the belt is damaged or too slack replace the O-
ring.
●
Lift the drive belt out of the circumferential groove of the deflection wheel and of the pulley.
●
Clean the drive belts with a clean, lintfree cloth soaked in alcohol.
NOTE
While doing so do not overstretch the drive belt!
Do not use solvent, only alcohol!
●
Clean in addition the circumferential groove of the deflection wheel and the pulley with alcohol.
●
Insert the dry drive belt (or, if applicable, a greasefree replacement O-ring drive belt) into the dry circumfer-
ential groove of the deflection wheel. Attention: Do not now allow any further contact with grease!
●
Now lift the drive belt into the circumferential groove of the pulley without overstretching the drive belts!
9.5.5 Star
9.5.5.1 Servicing the Longitudinal Guide Columns and Rails,
Cleaning the Vacuum Connection Tubes
NOTE
The "housing complete with star" is removed for this maintenance work and placed on the "mounting rack for
housing", as described in the section 9.5.3.1 Removal of the Housing Complete with Star.
The complete star assembly remains mounted to the housing for the duration of maintenance work!
The location of the star is shown in Fig. 9.5.4.
●
Clean the guide columns, the vacuum connection tubes and the longitudinal guide rails of the star with a
pipe cleaner soaked in maintenance fluid of the segment maintenance cloth (see Short Reference Mainte-
nance Segments Version 2).
●
Clean all guideway shafts and rails and the vacuum connection tubes by wiping them over with the seg-
ment maintenance cloth. Then move the longitudinal guide cages repeatedly along the rails.
SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.5 Revolver Head, Segment Version 2 (New Nozzle Seat)
9 - 53
●
Note:
The description here applies to maintenance of the star when segments with sealing pistons
version 2 are used. The vacuum connection tubes of the star have to be cleaned with a pipe-cleaner (see
Short Reference Maintenance Segments Version 2) as far as it will go.

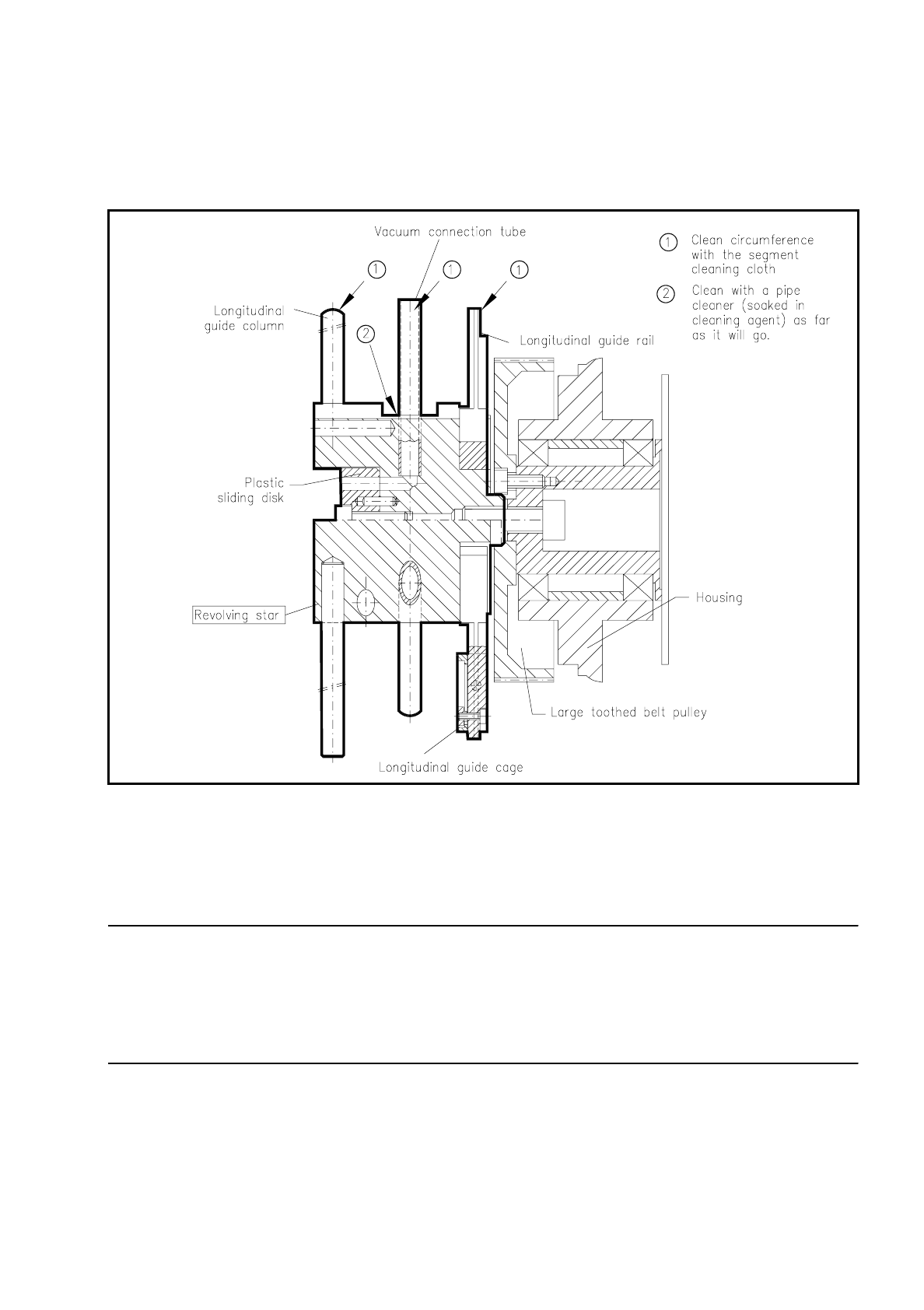

Fig. 9.5.6 Maintenance of the star when segments with sealing piston version 2 are used
9.5.6 Mechanical Centering Station
NOTE
The "housing complete with star" is removed for this maintenance work and placed on the "mounting rack for
housing", as described in the section 9.5.3.1 Removal of the Housing Complete with Star. The mechanical
centering station remains installed for the duration of maintenance work. The location of the centering station
is shown in Fig. 9.5.4.
9 Maintenance SIPLACE 80S/F/G User’s Manual
9.5 Revolver Head, Segment Version 2 (New Nozzle Seat) Edition 07/97 from Software Version SR.010.xx
9 - 54
9.5.6.1 Cleaning and Greasing the Gear Rack and Pinion
●
Clean the toothing of the pinion and of the gear rack with a brush dipped in alcohol and dry the parts with
compressed air.
●
Grease the toothing sparingly with Unimoly GL82.
9.5.6.2 Oiling the Longitudinal Guide Column,
Cleaning and Oiling the Gear Rack and Motor Pinion
●
With the syringe apply a minimal quantity of finest grade watchmaker's oil No. 3 into the ball bearing.
●
Clean the toothing of the motor pinion and of the gear rack with a brush and alcohol.
●
Dry the toothing and grease it sparingly with Unimoly GL82.
●
Finally move retainer bracket repeatedly and carefully by hand towards the jaws thus distributing the
grease and oil over the tooth engagement and longitudinal guide column.

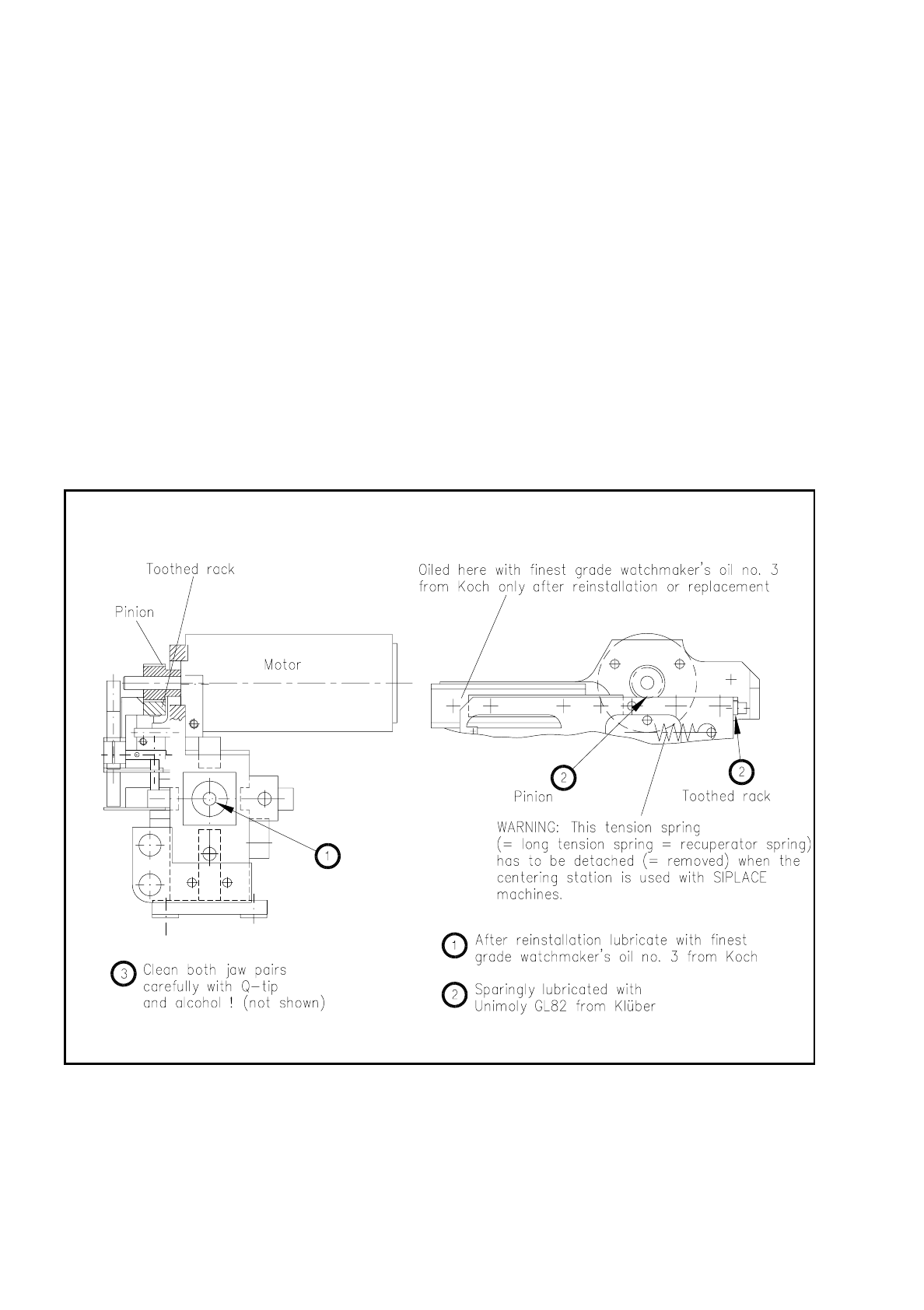

Fig. 9.5.7 Maintenance of the centering station
