SIPLACE 80S/F/G User’s Manual 9 Maintenance Edition 07/97 from S oftware Version SR.010.xx 9.5 Revolver Head, Segment Version 2 (New Nozzle Seat) 9 - 55 9.5.7 Screwdrivers 1 and 2 NOTE The "ho using compl ete with s…
9 Maintenance SIPLACE 80S/F/G User’s Manual
9.5 Revolver Head, Segment Version 2 (New Nozzle Seat) Edition 07/97 from Software Version SR.010.xx
9 - 54
9.5.6.1 Cleaning and Greasing the Gear Rack and Pinion
●
Clean the toothing of the pinion and of the gear rack with a brush dipped in alcohol and dry the parts with
compressed air.
●
Grease the toothing sparingly with Unimoly GL82.
9.5.6.2 Oiling the Longitudinal Guide Column,
Cleaning and Oiling the Gear Rack and Motor Pinion
●
With the syringe apply a minimal quantity of finest grade watchmaker's oil No. 3 into the ball bearing.
●
Clean the toothing of the motor pinion and of the gear rack with a brush and alcohol.
●
Dry the toothing and grease it sparingly with Unimoly GL82.
●
Finally move retainer bracket repeatedly and carefully by hand towards the jaws thus distributing the
grease and oil over the tooth engagement and longitudinal guide column.
Fig. 9.5.7 Maintenance of the centering station
SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.5 Revolver Head, Segment Version 2 (New Nozzle Seat)
9 - 55
9.5.7 Screwdrivers 1 and 2
NOTE
The "housing complete with star" is removed for this maintenance work and placed on the "mounting rack for
housing", as described in the section 9.5.3.1 Removal of the Housing Complete with Star.
The location of screwdrivers 1 and 2 in the support plate is shown in Fig. 9.5.8.
The 30 degree position for screwdriver 2 is already marked.
Spare parts:
see Fig. 9.5.8
●
To obtain better access to screwdrivers 1 you may need to move the z axis by hand downwards by turning
the cam disk anticlockwise.
●
If necessary, clean the tooth engagement with a brush dipped in alcohol and dry off with compressed air.
●
Grease screwdrivers 1 and 2 in each case at the tooth engagement sparingly with Unimoly GL82.
●
Turn the pinion by hand to distribute the grease.
Fig. 9.5.8 Maintenance of screwdrivers 1 and 2 in the support plate
9 Maintenance SIPLACE 80S/F/G User’s Manual
9.5 Revolver Head, Segment Version 2 (New Nozzle Seat) Edition 07/97 from Software Version SR.010.xx
9 - 56
●
Check the stop plates and replace them if damaged: unscrew 2 x M1.6 countersunk screws.
●
Bring the screwdrivers now into their exact rotational positions:
Screwdriver 1: horizontal position. Screwdriver 2: 30 degree position (see marking!)
●
Finally bring the z axis by hand into the top end position.
9.5.8 Vacuum Nozzles

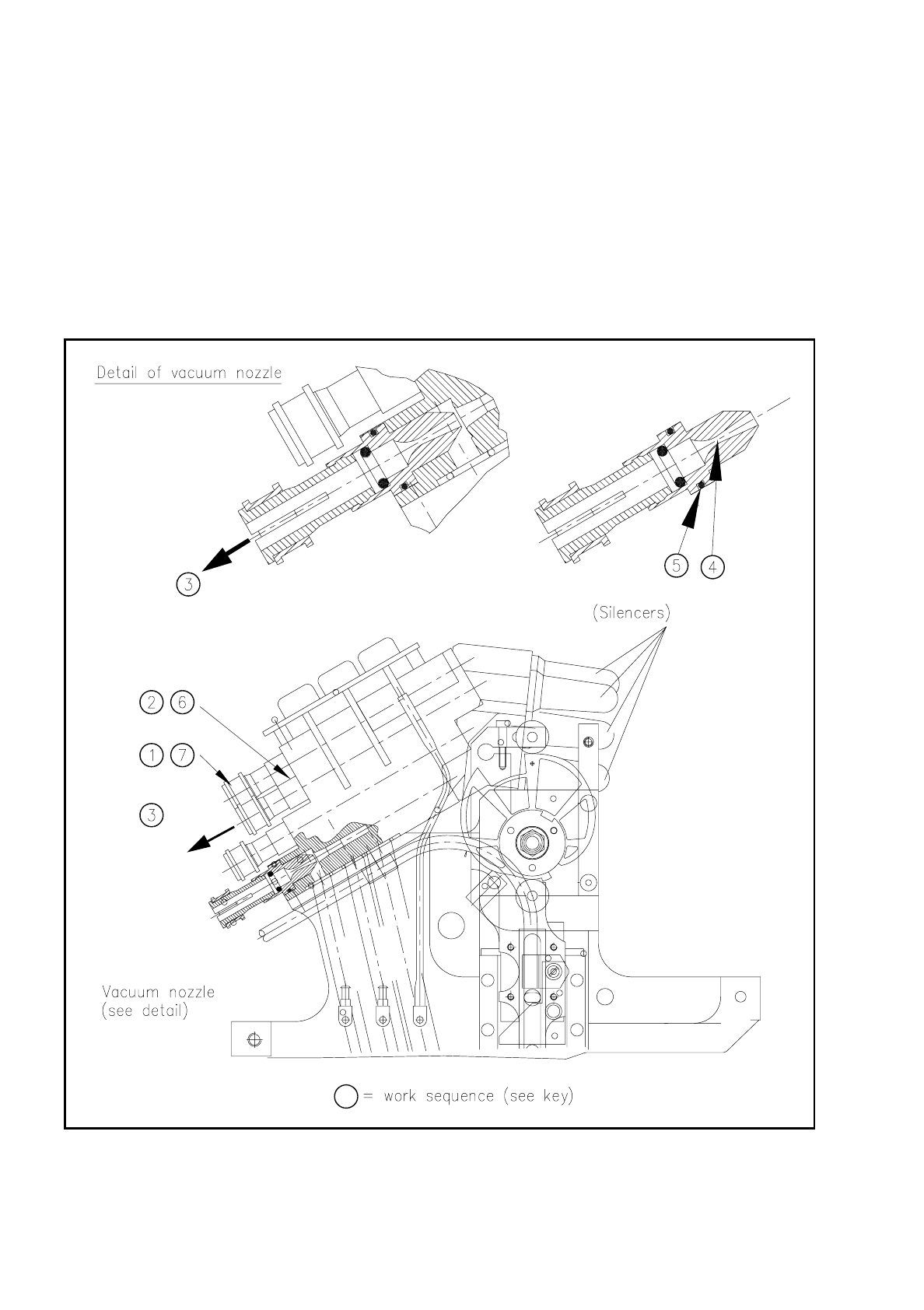

Fig. 9.5.9 Maintenance of the vacuum nozzles (view of direction of fitting of the placement head)
