9 Maintenance SIPLACE 80S /F/G User’s Manual 9.6 IC Head (SIPLACE 80F) Edition 07/97 from Software Version SR.010.xx 9 - 88
SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.6 IC Head (SIPLACE 80F)
9 - 87

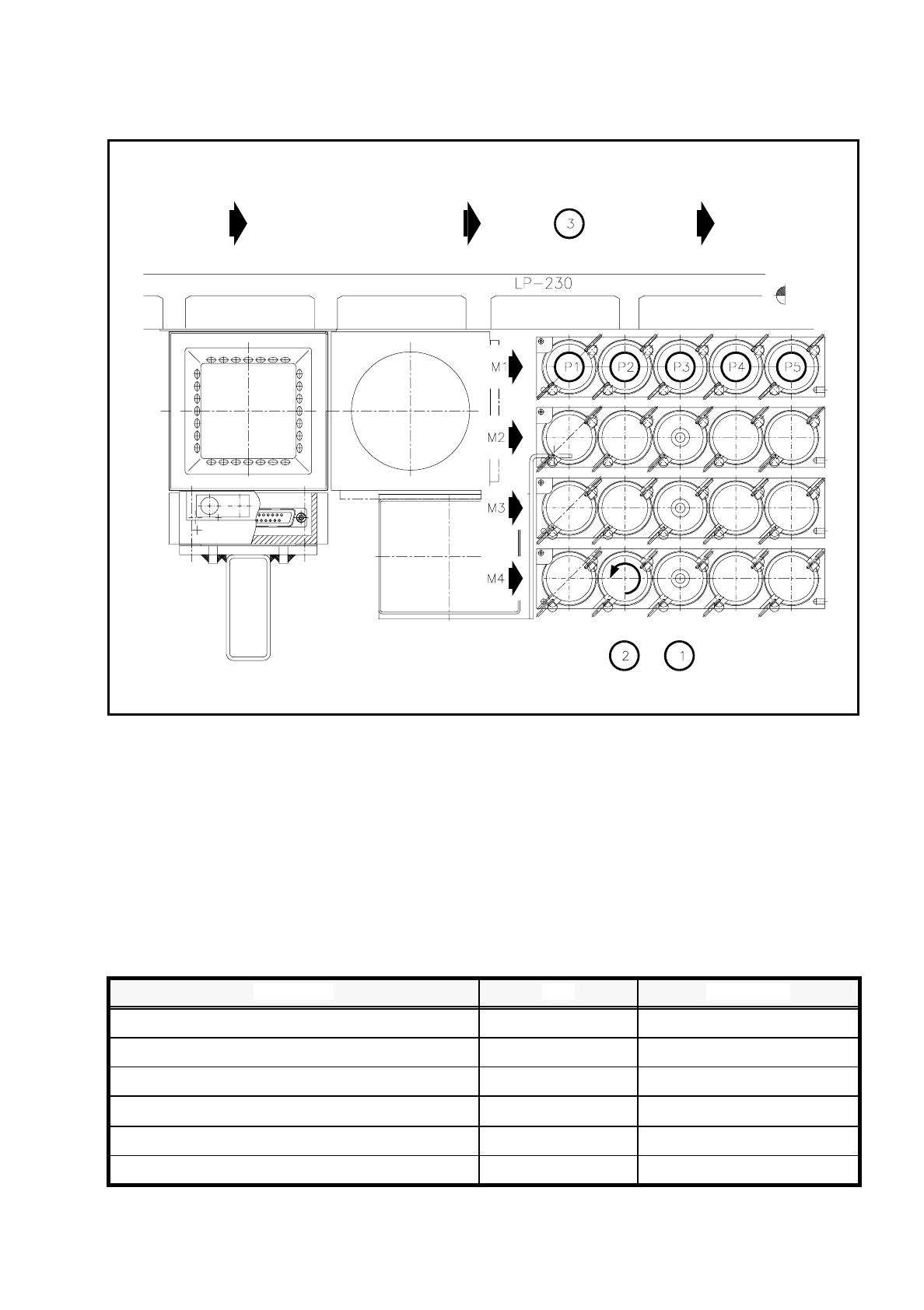

Fig. 9.6.11 Specifying the garage numbers in the nozzle changer
Key to Fig. 9.6.11
1 Nozzle changer
2 Turn the nozzle counter-clockwise until it locks in place.
3 PCB transport direction
9.6.7 IC-Head Nozzle Survey
Designation Type Item number
Nozzle, 12.5 in dia. 418 00322544-01
Diaphragm for nozzle, 12.5 in dia. 00307052-03
Nozzle, 24 in dia. 419 00322546-01
Diaphragm for nozzle, 24 in dia. 00310569-03
Nozzle, 8 in dia. 417 00322543-01
Nozzle 3 x 6 416 00322545-01
Tab. 9.6.1 IC-head nozzle survey
9 Maintenance SIPLACE 80S/F/G User’s Manual
9.6 IC Head (SIPLACE 80F) Edition 07/97 from Software Version SR.010.xx
9 - 88
SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.7 Wafflepack Changer
9 - 89
9.7 Wafflepack Changer
The location of the wafflepack changer in the SIPLACE 80F
4
/80F
4
-6 machines is shown in Fig. 9.1.2, Page 9 - 4.
9.7.1 Cleaning the Air Filter of the Electronic Plug-in Unit
●
Clean the air filter LZ60 on the bottom of the housing of the electronic plug-in unit with the vacuum cleaner.

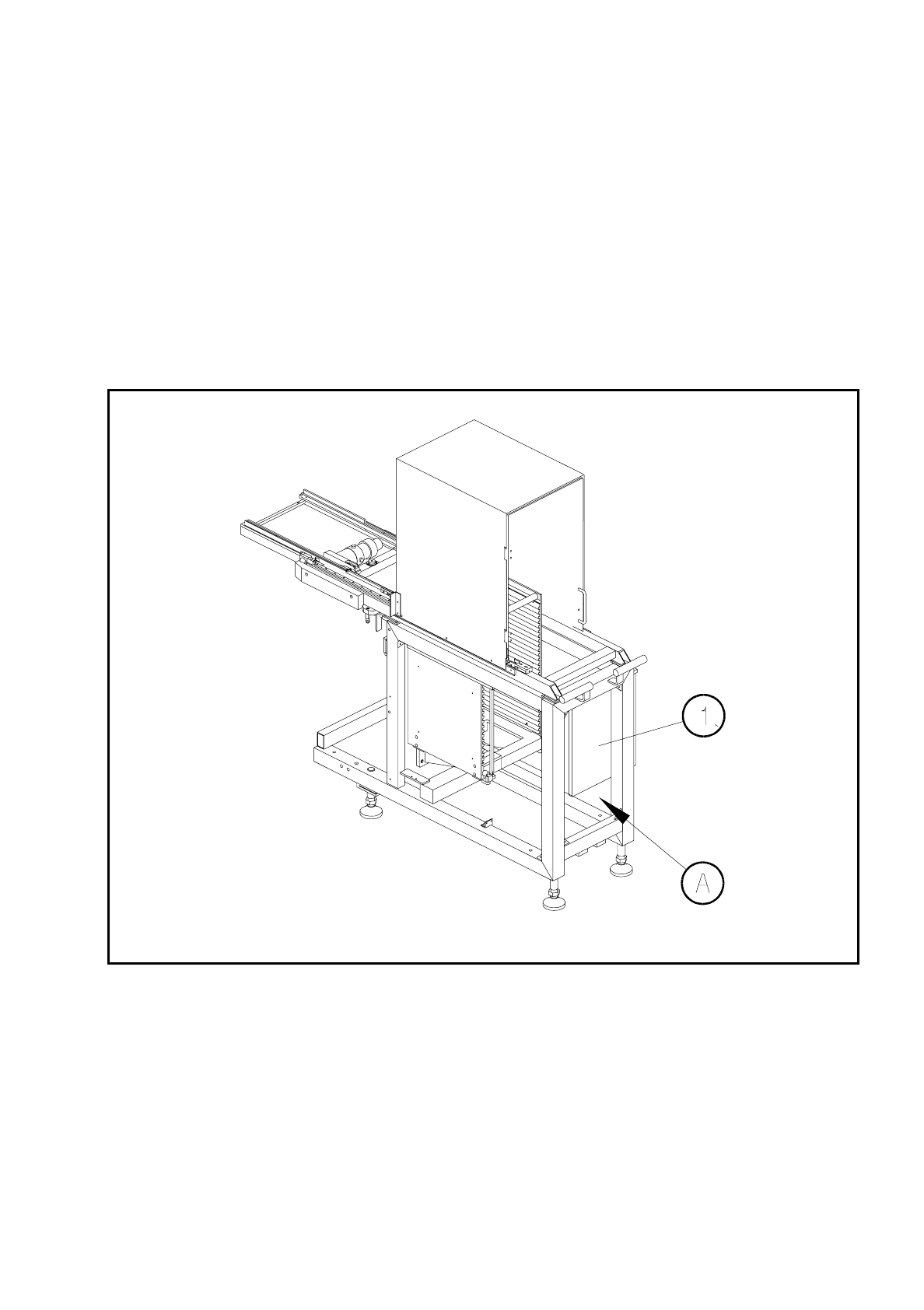

Fig. 9.7.1 Air filter on the electronic plug-in unit the WPC
Key to Fig. 9.7.1
1 Electronic plug-in unit
A Clean the air filter with vacuum cleaner
