9 Maintenance SIPLACE 80S/F/G User’s Manual
9.9 Adhesive Application Heads 1, 2 and 3 Edition 07/97 from Software Version SR.010.xx
9 - 100

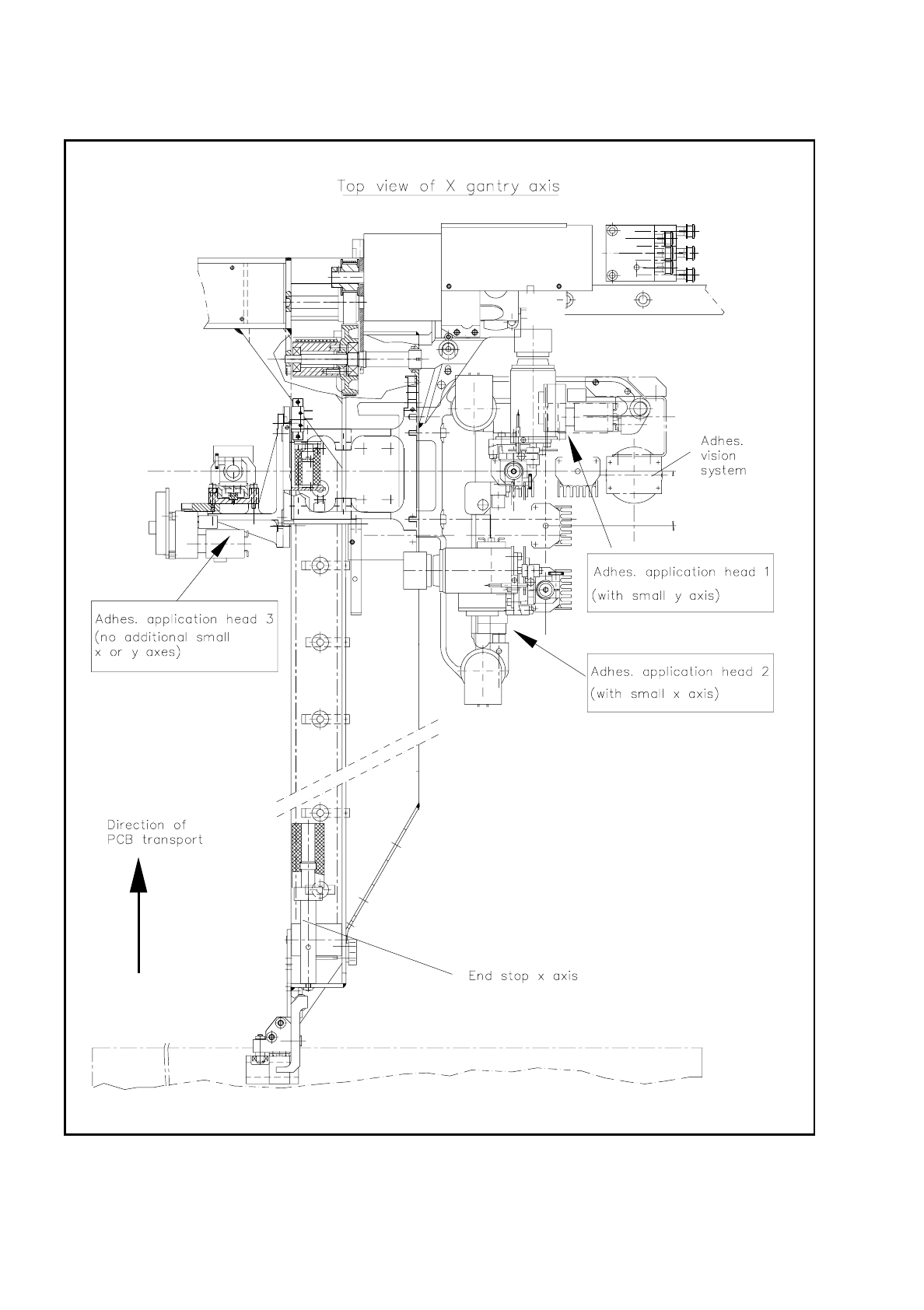

Fig. 9.9.1 Overview: location of adhesive application heads 1, 2 and 3 on the x gantry axis
SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.9 Adhesive Application Heads 1, 2 and 3
9 - 101

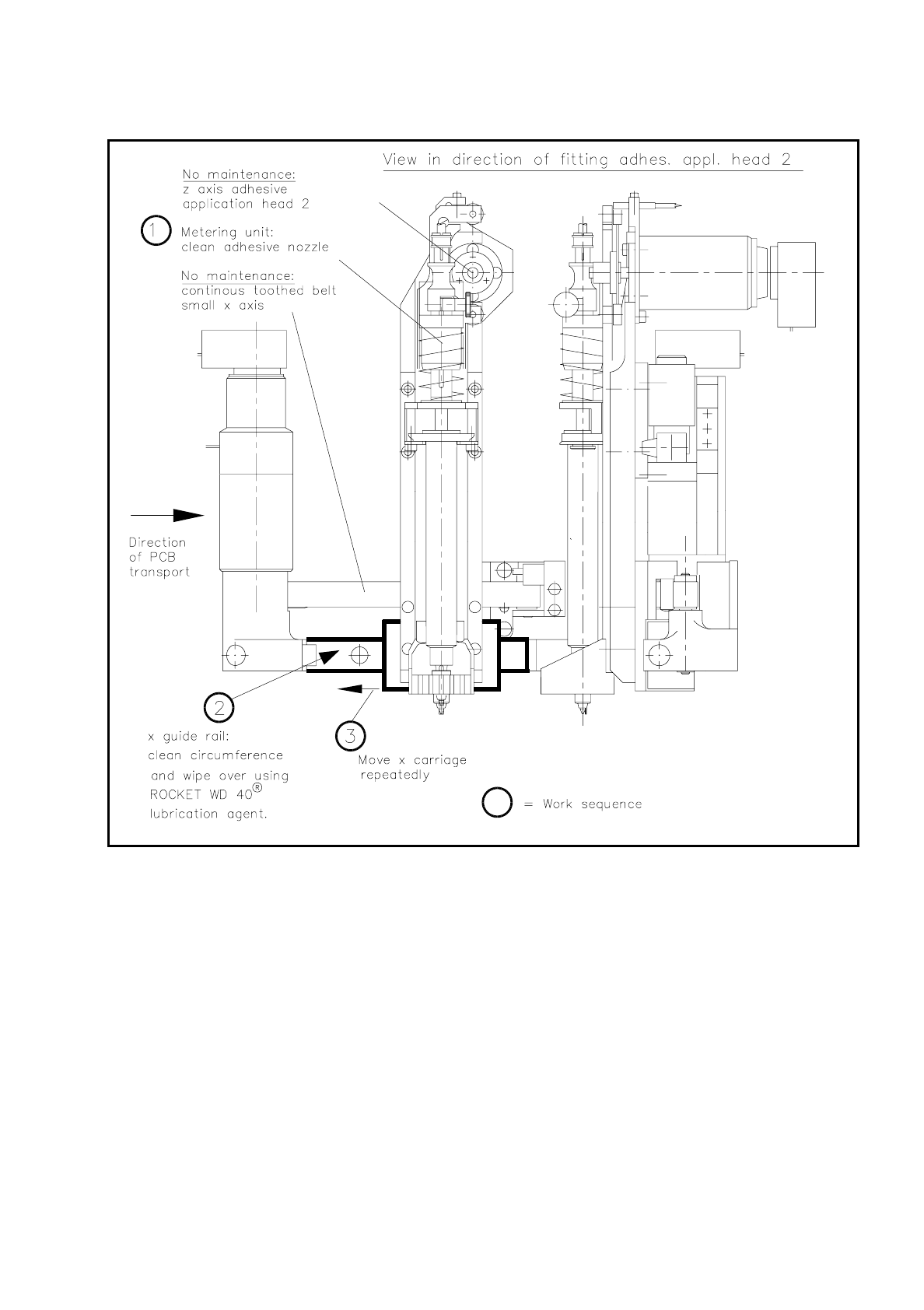

Fig. 9.9.2 Maintenance work on adhesive application head 2
9.9.2 Cleaning and Oiling the Guide Rail of the Small X Axis and Y Axis
●
Lubrication agent
–
ROCKET WD40 ® Item No. 00325833-01
9 Maintenance SIPLACE 80S/F/G User’s Manual
9.9 Adhesive Application Heads 1, 2 and 3 Edition 07/97 from Software Version SR.010.xx
9 - 102
●
Move the adhesive application head to the service position (see 'Gantry Functions, Section 10.7.4.1 of this
user's manual.
DANGER
∆
!
∆
!
∆
!
Switch the automatic placement system off at the main switch and disconnect from the power supply.
●
Open the corresponding cover / door.
●
Clean the guide rail of the small x axis (adhesive head 2) with a dry, clean cloth.
●
With a new cloth apply a small quantity of ROCKET WD 40 ® to the outer face of the rail
(see Fig. 9.9.2 ). Move the carriage by hand repeatedly and remove excessive lubrication agent.
●
Next carry out maintenance in the same way on the guide rail of the small y axis of adhesive head 1
(see Fig. 9.9.3).
Adhesive head 3 does not have a guide rail requiring maintenance.
