11.3.5 Technical Data

Resolution Finest line thickness 0.19 to 0.3 mm

Reading speed 600 scans/sec.

Reading distance 60 to 90 mm

Reading window 90 mm (max. bar-code length permitted)

Angle of reading head to the bar code 5 to 10°

Light source

Laser diode, 670 nm

1 mW

Laser class 2

Type of protection IP 65

Readable bar-code types

Code 39

Code 128 / EAN 128

Code 2/5 interleaved

Codabar

2/5 IATA

2/5 INDUSTRIAL

UPC

EAN

Pharma code

EAN Addendum

(others available on request)

Line length

≥

4 mm

Requirement: with a board speed of 300 mm/sec

and a scan rate of 600 scans/sec it must be possi-

ble to make 3 readings

Contrast ratio as per DIN 66236

≥

70%

Permitted color of lines

black

dark green

dark blue

Permitted background colors

white

beige

yellow

orange

Bar-code length

(including the two end areas)

≤

90 mm

11 Station Extensions SIPLACE 80S/F/G User’s Manual

11.3 PCB Bar-Code Edition 07/97 from Software Version SR.010.xx

11 - 18

SIPLACE 80S/F/G User’s Manual 11 Station Extensions

Edition 07/97 from Software Version SR.010.xx 11.4 Component Bar-Code

11 - 19

11.4 Component Bar-Code

11.4.1 General

The SIPLACE 80S placement machine allows you to make sure track occupancy is correct by means of a bar-

code reader and to read component data from, for example, component reels.

The bar codes are read in using a hand-held reader connected to the keyboard.

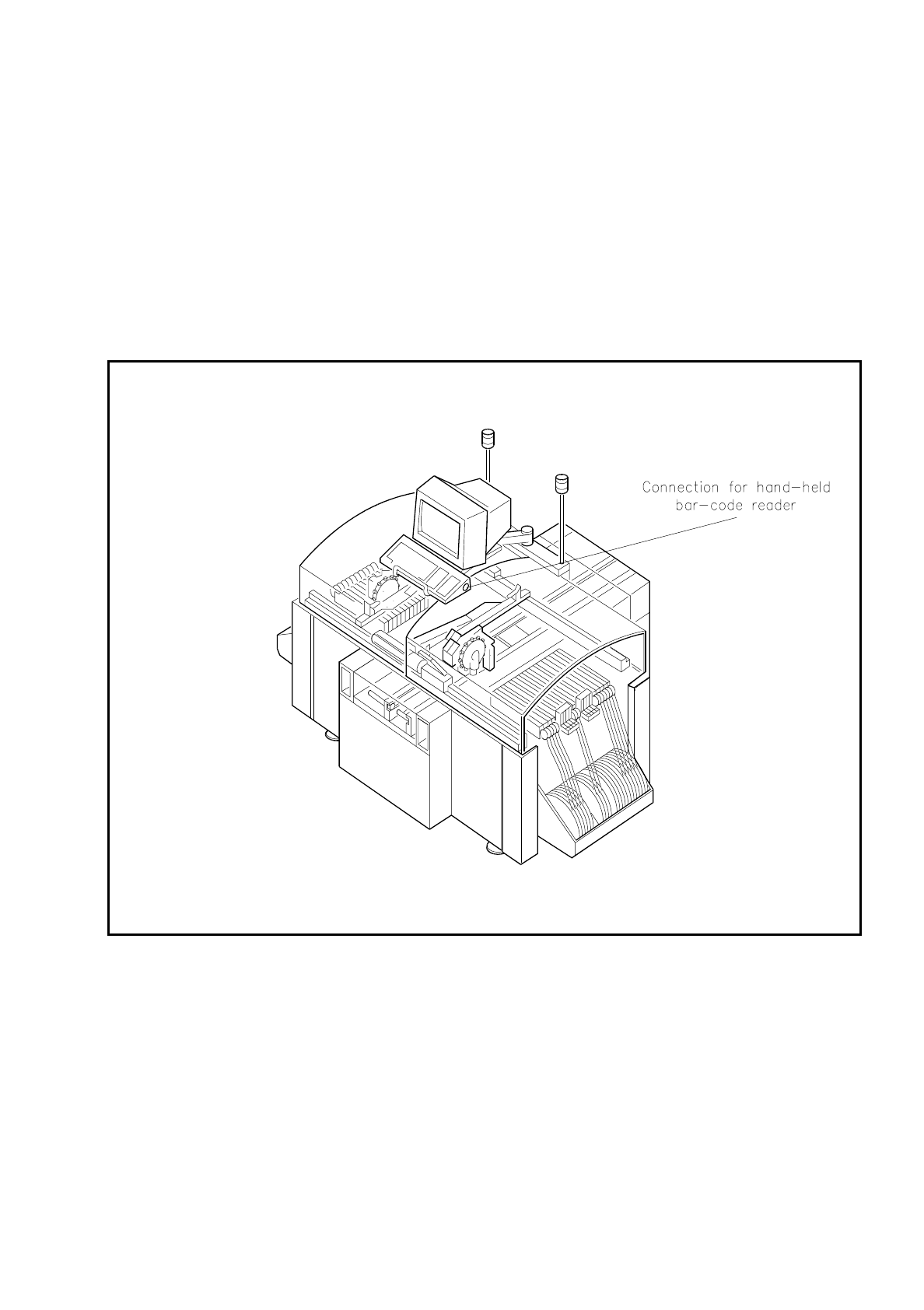

Fig. 11.4.1 Bar-code reader connection
