SIPLACE 80S/F/G User’s Manual 17 Nozzle Survey
Edition 07/97 from Software Version SR.010.xx 17.2 Overview of Nozzles
17 - 11
17.2 Overview of Nozzles
17.2.1 Nozzle Types of the Revolver Placement Head

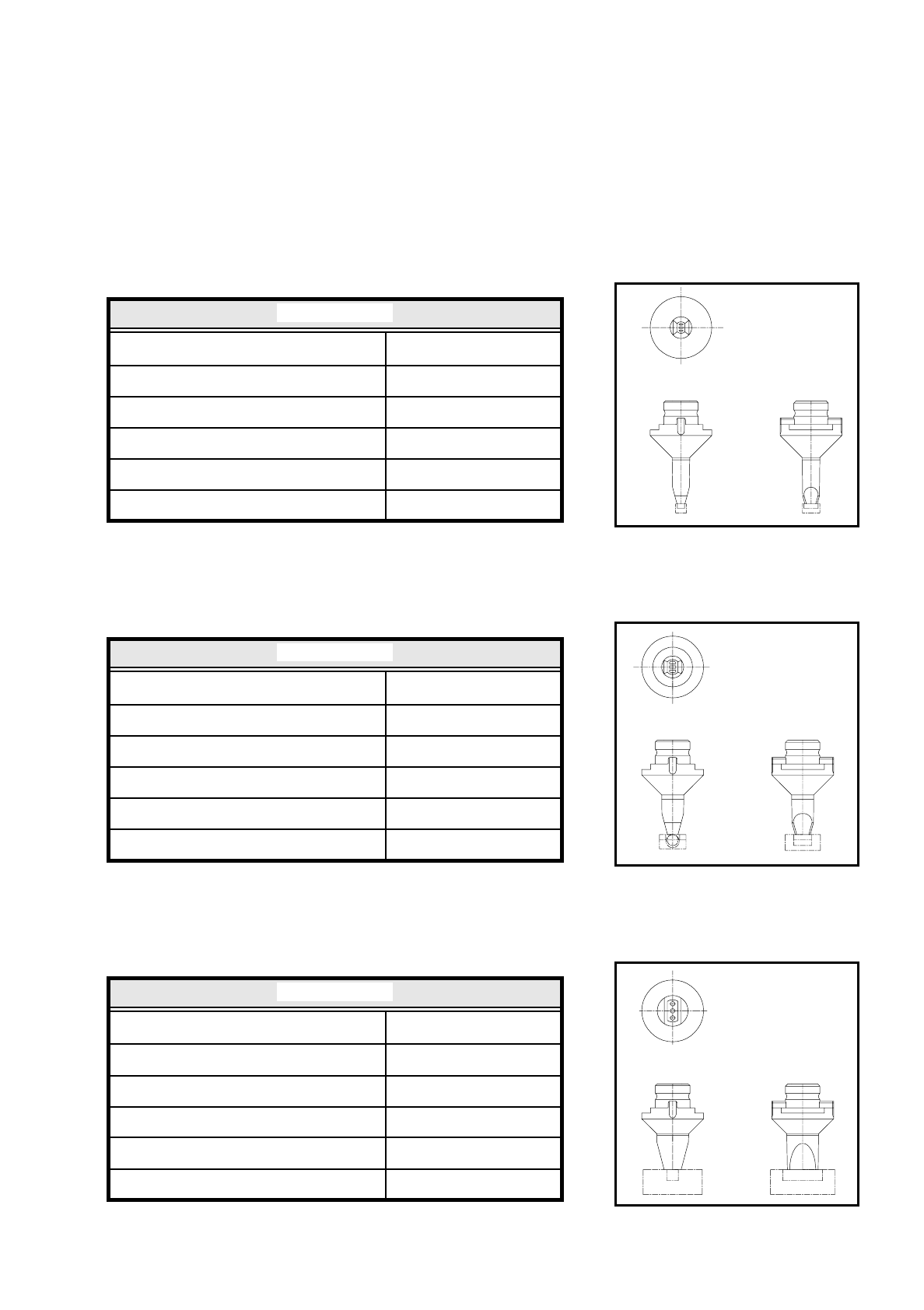

Nozzle type 601
Suction cross-section
0.20 mm
2
Height 9 mm
Material Ceramic
Insertable components 0402/0603
Color coding YELLOW
From item number 00319483-01
Tab. 17.2 - 1
Nozzle type 604
Suction cross-section
0.58 mm
2
Height 8 mm
Material Ceramic
Insertable components 0603/0805/1206
Color coding ORANGE
From item number 00319484-01
Tab. 17.2 - 2
Nozzle type 605
Suction cross-section
2.88 mm
2
Height 7 mm
Material Ceramic
Insertable components Tantalum
Color coding RED
From item number 00319485-01
Tab. 17.2 - 3
17 Nozzle Survey SIPLACE 80S/F/G User’s Manual
17.2 Overview of Nozzles Edition 07/97 from Software Version SR.010.xx
17 - 12

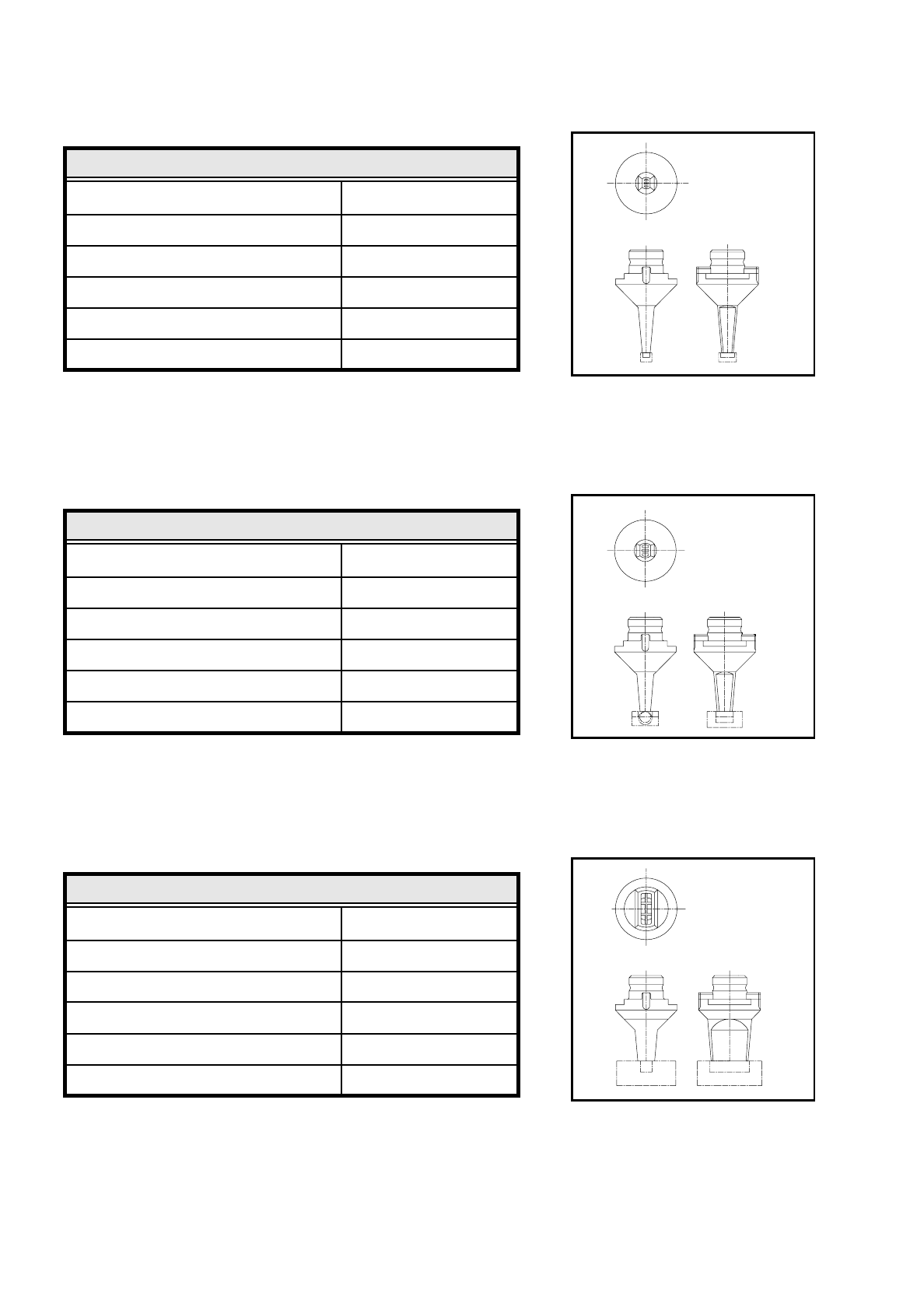

Nozzle type 611
Suction cross-section
0.20 mm
2
Height 9 mm
Material Vectra C130
Insertable components 0402/0603
Color coding YELLOW
From item number 00313996-05
Tab. 17.2 - 4
Nozzle type 614
Suction cross-section
0.58 mm
2
Height 8 mm
Material Vectra C130
Insertable components 0603/0805/1206
Color coding ORANGE
From item number 00313997-05
Tab. 17.2 - 5
Nozzle type 615
Suction cross-section
4.20 mm
2
Height 7 mm
Material Vectra C130
Insertable components Tantalum
Color coding RED
From item number 00314000-06
Tab. 17.2 - 6
SIPLACE 80S/F/G User’s Manual 17 Nozzle Survey
Edition 07/97 from Software Version SR.010.xx 17.2 Overview of Nozzles
17 - 13

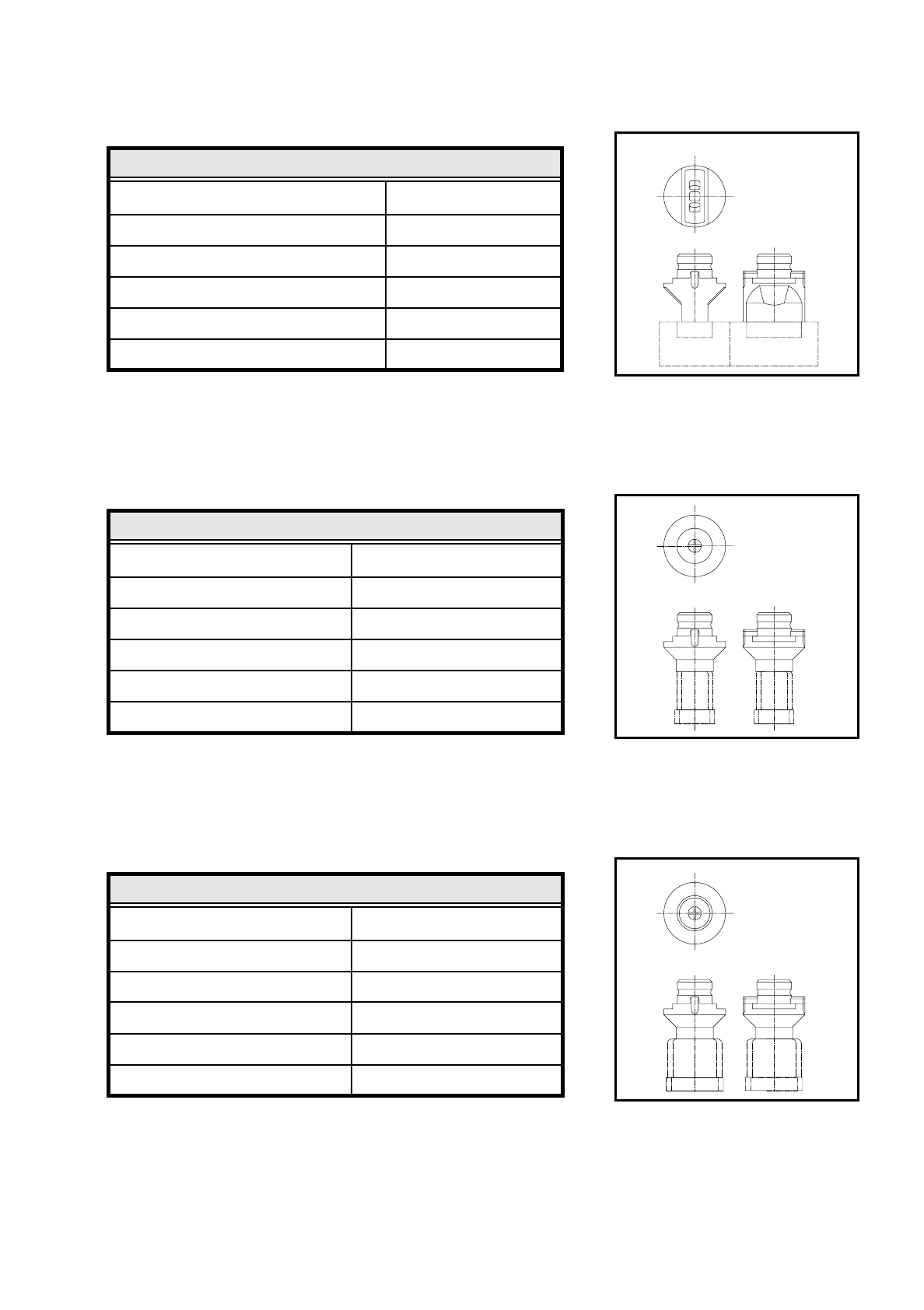

Nozzle type 617
Suction cross-section
13.4 mm
2
Height 5 mm
Material Vectra C130
Insertable components PLCC > 3x7
Color coding PINK
From item number 00315267-03
Tab. 17.2 - 7
Nozzle type 618
Suction cross-section
1.7 mm
2
Height 4 mm
Material Vectra C130
Insertable components Alum. cap. < Ø 3x2 mm
Color coding GREEN
From item number 00313993-07
Tab. 17.2 - 8
Nozzle type 619
Suction cross-section
9.6 mm
2
Height 4 mm
Material Vectra C130
Insertable components Alum. cap. < Ø 5x2 mm
Color coding BLUE
From item number 00315359-04
Tab. 17.2 - 9
