17 Nozzle Survey SIPLACE 80S /F/G User’s Manual 17.2 Overview of Nozzles Edition 07/97 from Software Version S R.010.xx 17 - 16 ❒ Nozzle type 419 Outside diameter 24 mm Material Vectra A 700 Eff ective suction area 363 m…
SIPLACE 80S/F/G User’s Manual 17 Nozzle Survey
Edition 07/97 from Software Version SR.010.xx 17.2 Overview of Nozzles
17 - 15

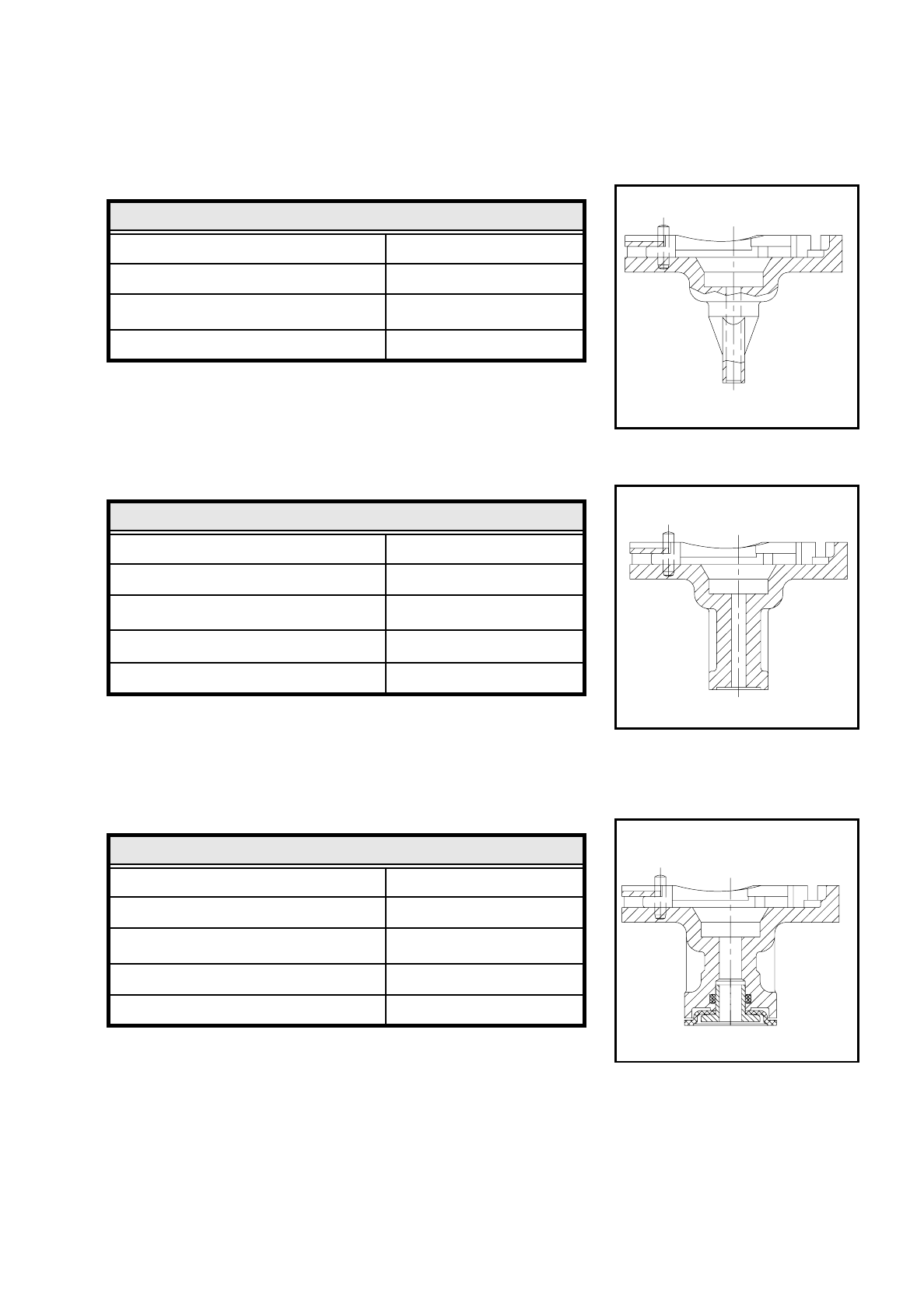

17.2.2 Nozzle Types of the IC Placement Head
Nozzle type 416
Outside contour 3 mm x 6 mm
Material Vectra A 700
Effective suction area
9.1 mm
2
From item number 00322545-01
Tab. 17.2 - 12
Nozzle type 417
Outside diameter 8 mm
Material Vectra A 700
Effective suction area
28.3 mm
2
Effective suction diameter
Ø
6 mm
From item number 00322543-01
Tab. 17.2 - 13
Nozzle type 418
Outside diameter 12.5 mm
Material Vectra A 700
Effective suction area
78.5 mm
2
Effective suction diameter 10 mm
From item number 00322544-01
Tab. 17.2 - 14
17 Nozzle Survey SIPLACE 80S/F/G User’s Manual
17.2 Overview of Nozzles Edition 07/97 from Software Version SR.010.xx
17 - 16
❒
Nozzle type 419
Outside diameter 24 mm
Material Vectra A 700
Effective suction area
363 mm
2
Effective suction diameter 21.5 mm
From item number 00322546-01
Tab. 17.2 - 15
SIPLACE 80 S/F/G User’s Manual
Edition 12/96 from Software Version SR.009.xx
19 - I
Contents
Page
19 Error Messages
19.1 Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 - 3
