PCO System Dimensi ons 1700mm 1700mm 2200mm

100%1 / 10
Process Specification
• Process time: Generally 120 min or User’s spec
• Operating temp: 60
o
C ~ 200
o
C
• Maximum temp: 220
o
C
• Operating pressure: 1 bar – 10 bar
• Capacity: 24 Magazines (typical)
• Cooling method: PCW (17
o
C - 23
o
C)
• Cooling water pressure: 25 – 40 psi
200℃
60℃
0
Temp.
30min 90min 120min Time
10 bar
0
20min 90min 110min Time
Cooling
process
Curing
process
Rising
process
Pressure.
Representative Pressure/Temp Profiles (User Configurable)
PCO System Dimensions
1700mm
1700mm
2200mm

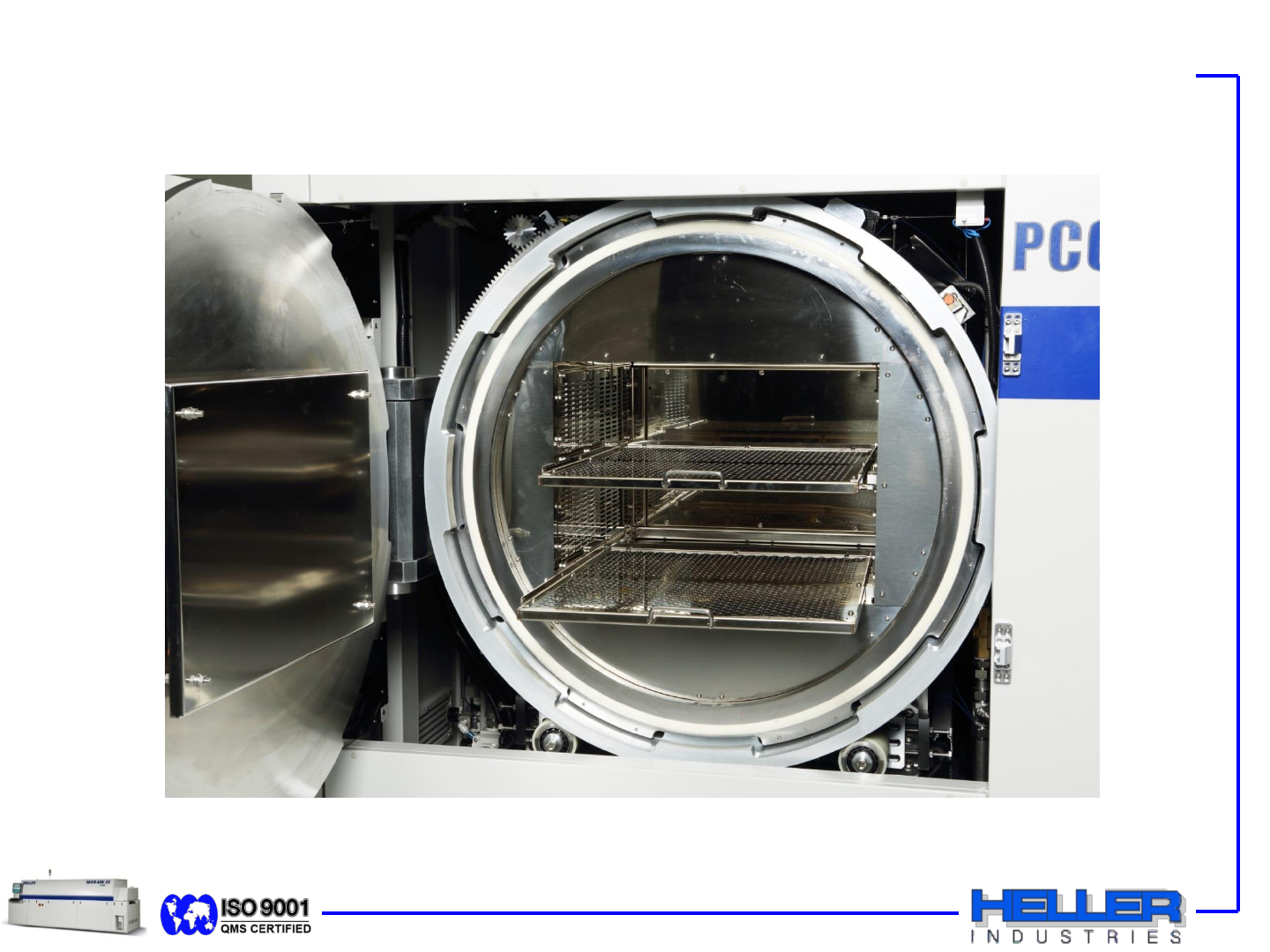

PCO System Chamber
