Pos. Item no. Description Part marking

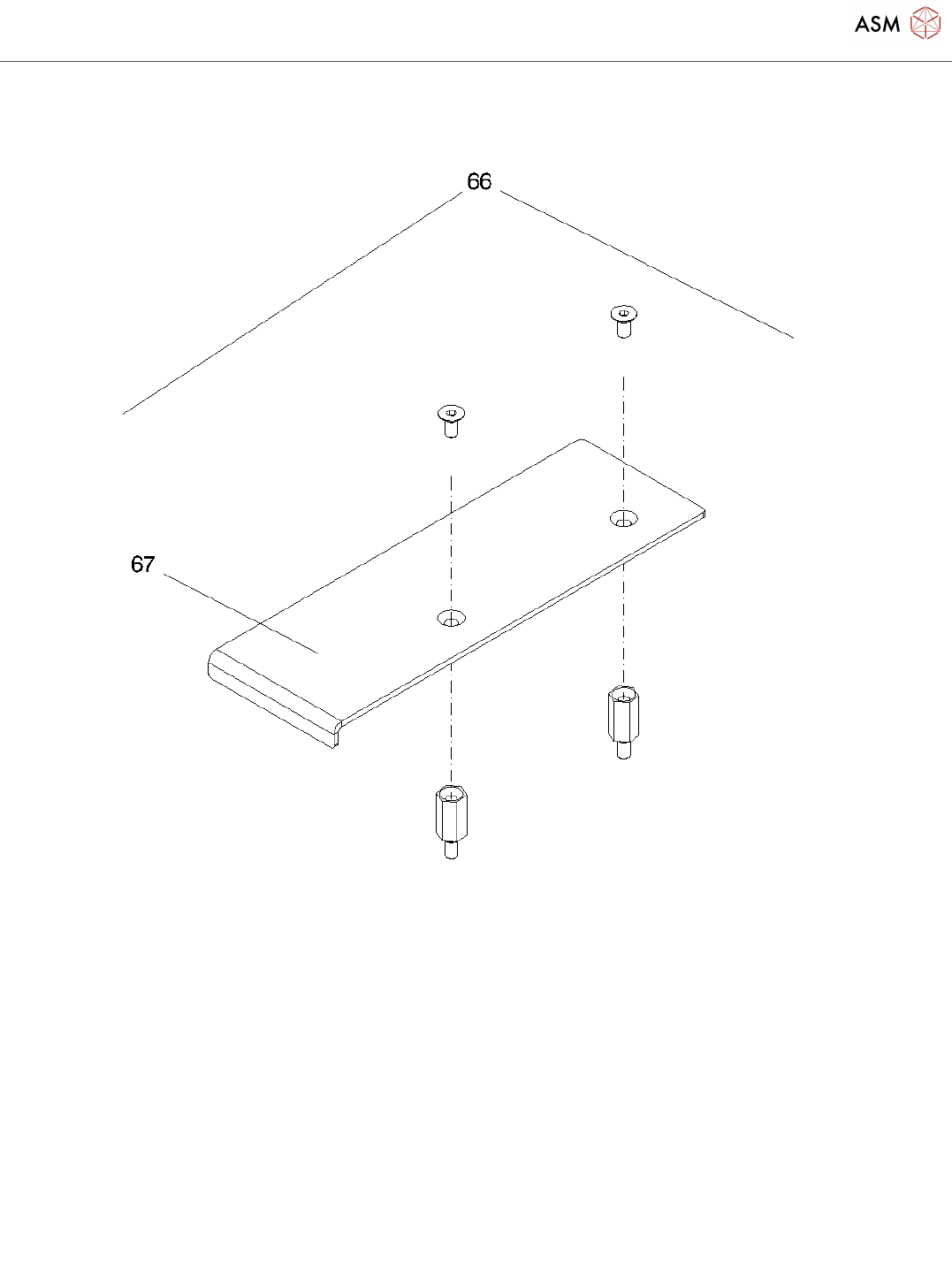

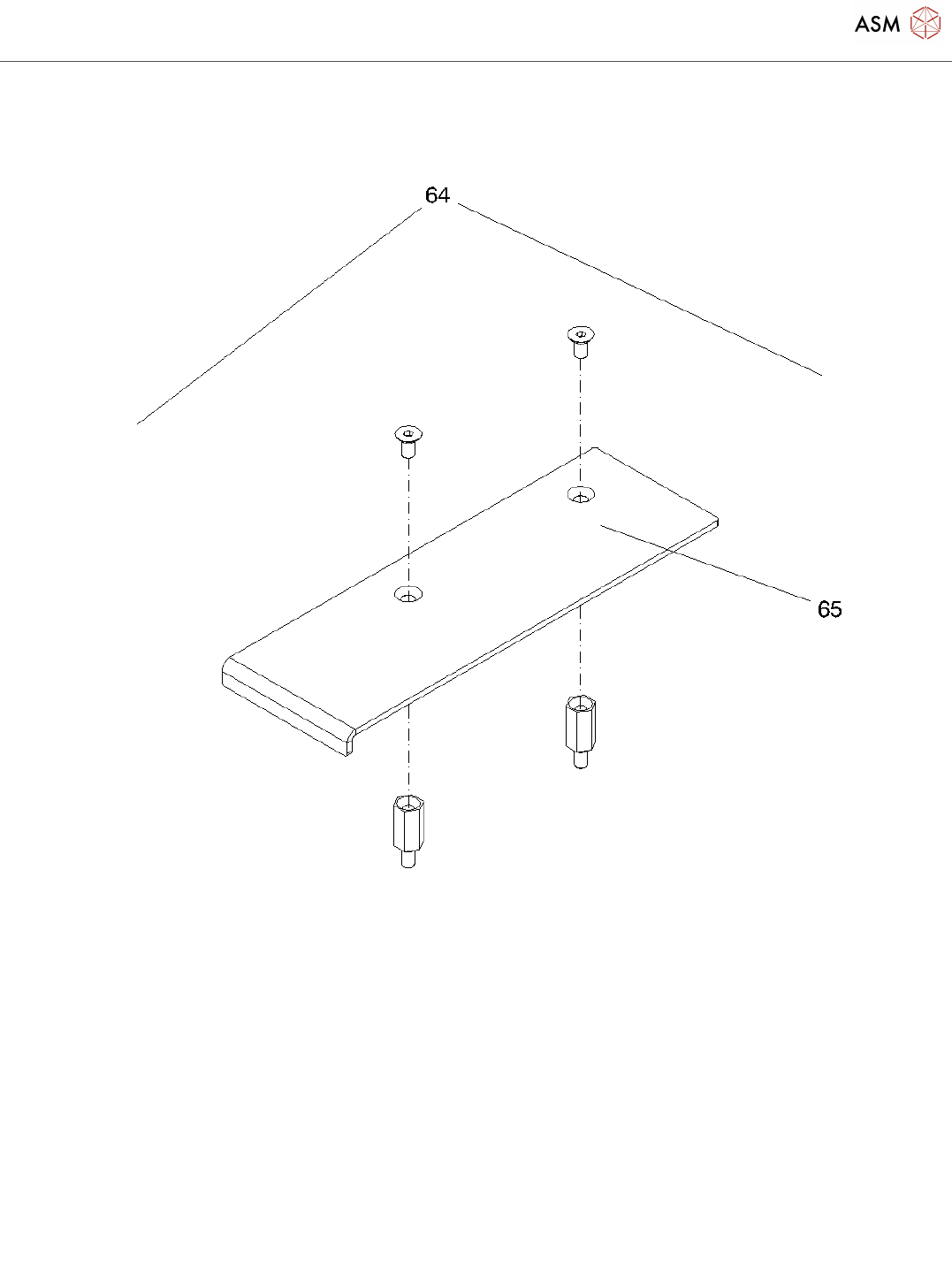

03098995-01 CONFIG MACHINE COVER
X4S(I),X3S
1 03096818-01 COVER, CONVEYOR, ASSY X4 S
2 03096832-01 COVER, CONVEYOR CPL.
3 03096830-02 COVER, CONVEYOR
4 03098394-01 SAFETY SHEET M. CONV. TOP INS.
CPL. SX4A
5 03097917-01 SHEET METAL, HAND GUARD SX4A
6 03085465-01 WARNING LABEL CONTACT
BRACKET
7 03045201-01 DIN EN ISO 7380-M4 X 8-A2-70
8 03099777S05 X-SERIES S MTC PARTS FOR
HOUSING CONFIG
RETROFIT KIT
9 03099516-01 GUIDE RAIL SX4AV MTC
10 03078365-02 GUIDE RAIL HORIZONTAL LEFT
11 03099515-02 STIFFENER RAIL-BUMPER 2/4 SX4AV
MTC
12 03099559-01 HOLDER HOOD RAIL LOC 2/4 SX4AV
MTC
13 03098912-02 HINGE BOTTOM PART CPL.
14 03090520-01 BUSH BEARING GFM-0608-05
15 03093119-02 HOLDER HINGE SX4A
16 03098934-01 SLIDER ASSY SX4A
17 03098942-01 HINGE TOP ASSY
18 03090520-01 BUSH BEARING GFM-0608-05
19 03065055-03 GUIDE RAIL HORIZONTAL SPARE PART
20 03099694-01 HANDLE SX4 COMPL.
21 03099641-01 GRIFF SX4A
22 03045194-01 DIN EN ISO 7380-M3 X 6-A2-70 STANDARD PARTS
23 03079867-02 BUFFER, COVER-GUIDE WEAR PART
24 03096674-01 SCREW, THREADED WASHER CPL.
25 03096671-01 THREADED WASHER M3
26 03096670-01 SCREW NA
27 03072728-01 BUFFER WITH PIN, TYP-NR. 1284 STANDARD PARTS
28 03067568-02 BUFFER, COVER-GUIDE SPARE PART
29 03072700-01 CLAMPING PART
03097628-01 PARTS SET SECURITY SWITCH
