RL1 31 ERROR CODE LIST 2.2 Ov erv iew o f Err or Mess age s DA8EEC- 91-230- A0 2.2- 1 2.2. Ov er vie w of Error Mess ages DA8EEC -91-230-A0 2.2. 1 Error Message Displa y S creen W hen an error has occur red on t he RL131…
RL131
ERROR CODE LIST
2.1 Self-diagnosis
DA8EEC-91-220-A0
2.1-2
RL131
ERROR CODE LIST
2.2 Overview of Error Messages
DA8EEC-91-230-A0
2.2-1
2.2. Overview of Error Messages
DA8EEC-91-230-A0

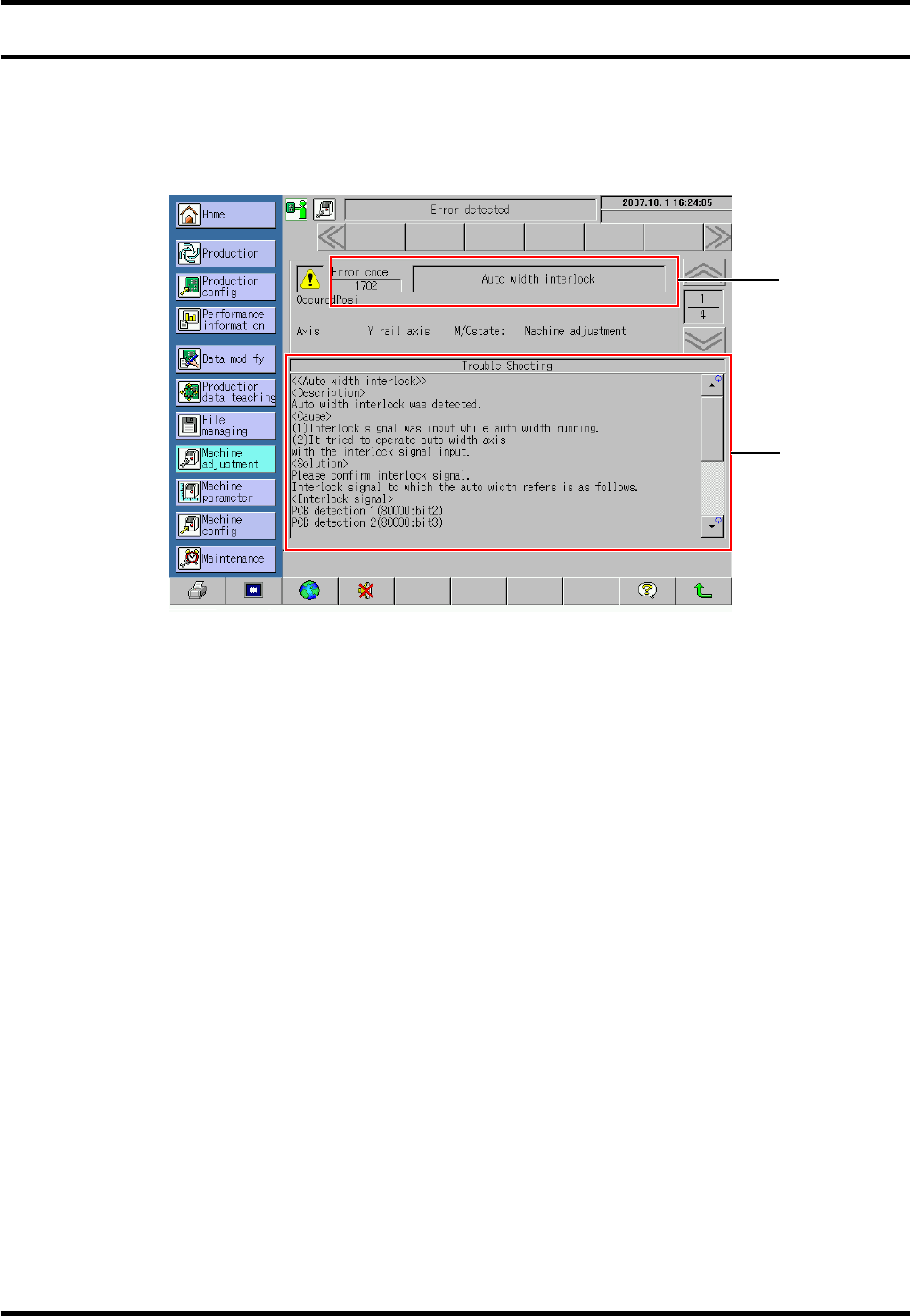

2.2.1 Error Message Display Screen
When an error has occurred on the RL131, messages for the error are displayed on the screen as shown in
the below example.
1.
1. Error message area
An error code and a message for the error occurred appear in this area.
2. Troubleshooting area
Description, possible causes and solution to the error occurred are displayed in this area.
=HINT=
The same contents are also included in this manual. Use them when dealing with the errors occurred.
1
2
RL131
ERROR CODE LIST
2.2 Overview of Error Messages
DA8EEC-91-230-A0
2.2-2
2.2.2 How This Manual Is Organized
This manual consists of the list of error codes and descriptions of errors:
List of error codes
Systematically arranged list of error codes
Description of error
Provides detailed information such as solution to the error occurred.

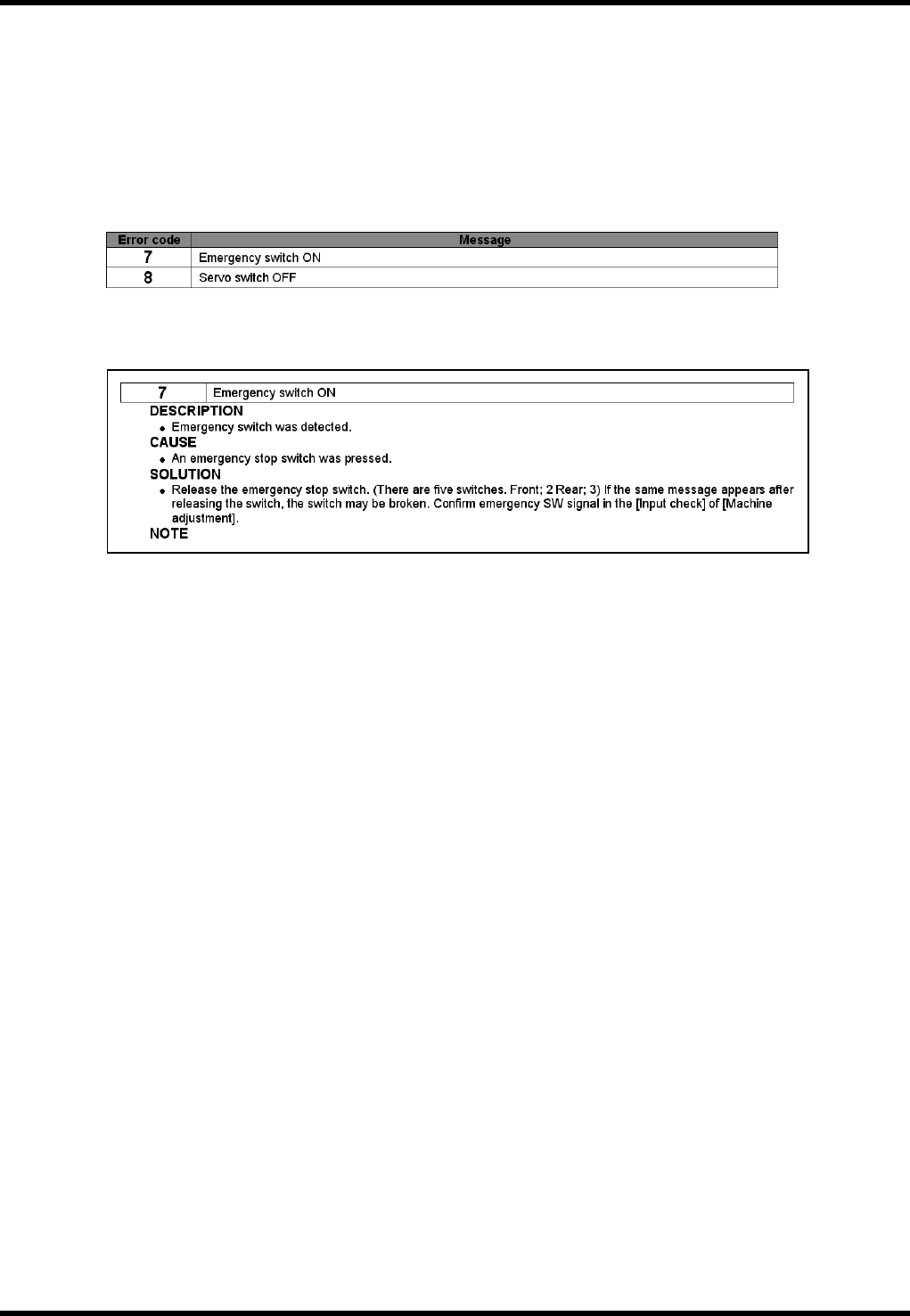

Example
List of error codes
Description of error
