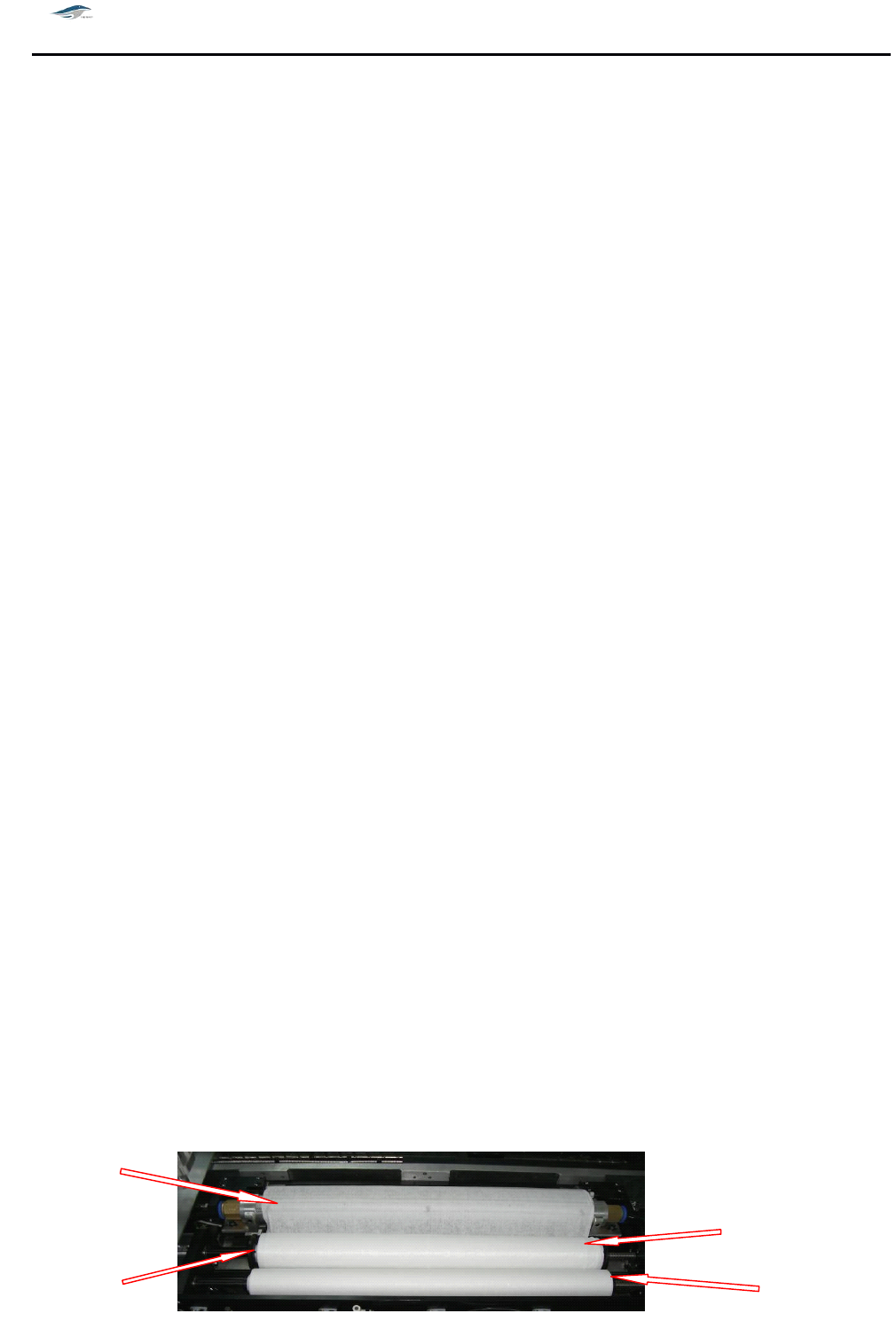

滚筒连接处
Roll c onnection area
用过卷纸
干净卷纸
New p aper r oll
用过卷纸
Used p aper r oll
alcohol in the tank during automatic cleaning. When the liquid level is lower than
the switch, the system will sound a warning and display the reason. At this time,
we should fill industrial alcohol in the tank, in the way as follows:
a)
关掉机器左侧下部的气源开关；
b)
打开机器后部罩盖，并打开酒精箱盖；
c)
注入清洗液（工业用酒精） ；
d)
酒精箱被充满后重新把盖子盖好，关闭后罩盖；
e)
重新打开气源。
a)
Switch off the air supply
at
the lower left of the machine.
b)
Open the lid
at
the back of the machine and then open the cover of the alcohol
tank.
c)
Fill in the cleaning solution ( industrial alcohol);
d)
When the alcohol tank is full, re-cover
it
and put the lid back.
e)
Turn the air supply on again.
注意： 选用清洗液应注意其有关安全方面的信息以及是否适用于所选择锡膏。
Notes: Pay attention to the safety information concerned and see whether
it
is applicable
to the chosen tin paste when choosing the cleaning solution.
5)
清洗用擦拭卷纸用完后应及时更换，更换方法如下：
5) The wiping roll paper should be replaced in time after used up as follows:
a)
将清洗装置移动到起点位置；
b)
打开机器后盖，将已用过的脏卷纸从滚筒上取下；
c)
再将干净的清洗卷纸装到卷纸滚筒上；
d)
本机使用清洗卷纸的牌号为 DEK265/445/45 。
a)
Move the cleaning device to the starting position.
b)
Open the back lid of the machine and take off the used roll paper.
c)
Load the new paper on the roll.
d)
The roll paper used by the machine is DEK265/445/45 。
上真空吸管
