- 33 -

同步带松紧调节螺钉

Adjusting s crew for the tension of

synchronous belts

阻挡螺钉 Barrier screw

工作台板面

Board of the workbench

图 3-5 工作台驱动部分

Figure 3-5 Workbench Drive

小心：

Caution:

不要使用有机溶液：氨水、苏打水或苯清洁传感器。

Do not use organic solution like ammonia, soda water or benzene to cleanse the sensor.

工作台升降：

Workbench

Lifting



打开机器下部气动组件柜门及柜箱；



Open the cabinet door of pneumatically elements below the machine;



清洁机器下部工作台升降丝杆和直线导轨；



Cleanse the elevating screw and linear rail on the workbench below the machine;



用 NSK 丝杆、导轨专用润滑油润滑升降丝杆和导轨；



Lubricate the elevating screw and guide rail with NSK special lubricant for screws

and guide rails;



关闭气动组件柜门；



Close the cabinet door of the pneumatically elements;



定期检查工作台顶板阻挡螺钉磨损情况，保证工作台上升接触到阻挡螺钉时，工作

台板面到运输导轨上平面的高度为 110 ± 0.02mm 。



Periodically check the abrasion pattern of the barrier screw on the top board of

the workbench and when the workbench lift to the barrier screw, the height

between board of the workbench and the surface of the transportation guide rail

is 110 ± 0.02mm 。

德森精密机械设备有限公司

Shenzhen

DeSen

Precision

Machine

Co.,

Ltd

.

- 34 -

运输导轨上平面 The surface of the

transportation guid e rail

图 3-6 工作台顶板机构

Figure 3-6 Workbench

Top

Board

3.3.4

气动控制系统

3.3.4

Pneumatic

Control

System



在机器开始工作前打开机器前下部气动组件柜门；



Open the cabinet door of the pneumatically elements

at

the lower front of the

machine before

it

begins to work;



检查空气过滤器是否正常工作（拧下水隔下端的螺帽，检查是否有水滴落）；



Check if the air filter can work normally (Screw off the nut cap and see if there is

water dropping down);



检查各气动组件及管路有无漏气现象；



Check if there is air leakage in the pneumatically elements and pipelines;



按照气路原理图检查并调整压力表上的压力，使压力符合要求。



Check and adjust the pressure displayed on the pressure gauge according to the

illustrative pneumatic chart and make the pressure measure up to the standard.



气路总压力： 6Kgf/cm

2



Total

air course pressure: 6Kgf/cm

2



网框夹紧压力： 5 Kgf/cm

2



Screen frame clamping pressure: 5 Kgf/cm

2



真空吸压力： 4 Kgf/cm

2



Vacuum suction pressure: 4 Kgf/cm

2

德森精密机械设备有限公司

Shenzhen

DeSen

Precision

Machine

Co.,

Ltd

.

- 35 -

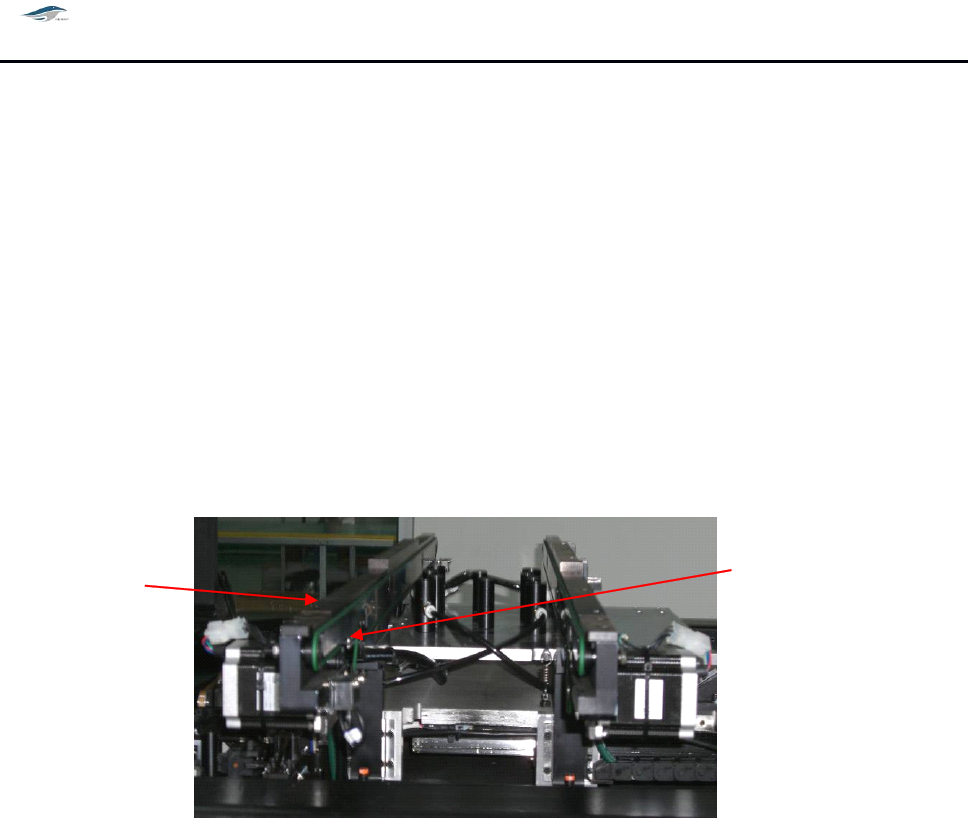

运输带松紧调节

Tension Adjustment of Conveyor

Belt

运输导轨

Transportation

Guide Rail

图 3-7 气动组件图 Figure 3-7 P

P

neumatic

Components

3.3.5

传动部分：

3.3.5

Transmission

Part

调整运输传送带的松紧

Adjusting

the

Tension

of

the

Belt

图 3-8 运输皮带张紧

Figure 3-8 T ension of Conveyor Belt



检查两运输导轨上的皮带；



Check the belts on both of the rails;



松开两导轨右端外侧的两个皮带张紧轮调节螺钉；



Loosen the screws on both of the backstands outside on the right of the rails;



向内或向外移动两个张紧轮位置；



Move the backstands inwards or outwards;



用手试压传送带，感觉松紧适宜即可；



Press the belts with hand and

it

will be OK if

it

feels not so tight and not so loose;



拧紧张紧轮调节螺钉。



Tighten the screw of the backstands.

注意：

调整时不能使运输传送带伸长。
