Communication and Control Reading the Board IDs out of the EEPROM Board IDs Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 144 Subsystem control center ► In the Subsystem control center window, search for the subsyste…
Communication and Control
Board IDs Reading the Board IDs out of the EEPROM
143 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Assembly ID 01 is digital pressure control valve
Assembly ID 02 is analog pressure control valve
Device number pressure control valve digital C&P20A
Reading and Writing the Bo ard IDs wi th CAN Commands
4.6.2.2 Reading and Writing the Board IDs with CAN Commands
► Switch off the machine.
► Connect the service laptop to the machine CAN bus at PA1 and/or PA2.
Make sure that the cable is connected at channel 1 for PA1 and at channel 2 for PA2 of the Kvaser
card.
► Switch on the machine
► Start the Caccia software and check the machine configuration in Caccia.
► Doubleclick on the Open Subsystem Control Center.
► Select Get Versions.
All available subsystems will be shown with their firmware versions and their CAN IDs.
NOTICE
The digital pressure control valve (C&P20A) and the analog pressure control valve (Twin head)
do not have a board ID or it is currently 00.
NOTICE
Both pressure control valves will be recognized via a device number. This assembly ID is at
memory cell 14 in the EEPROM.
Change Properties Change Machine
Configuration
Open Subsystem Control
Center
Communication and Control
Reading the Board IDs out of the EEPROM Board IDs
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 144
Subsystem control center

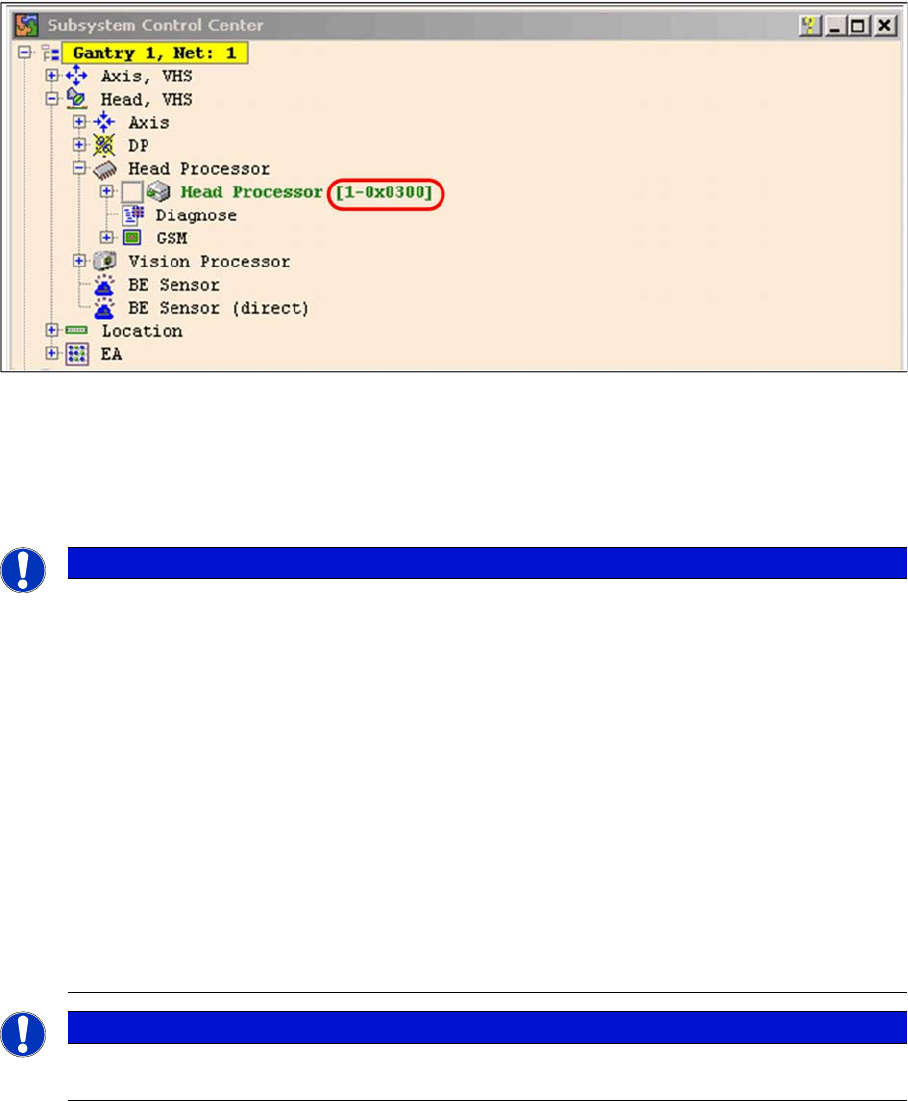

► In the Subsystem control center window, search for the subsystem (TQM module), which you
want to access, in order to then use the correct CAN ID in the network window.
► This means, to check the head interface, head adapter and intermediate distributor use the CAN ID
300 for gantry 1 or 308 for gantry 2 and so on.
► Perform a BIOS download to the TQM module, so that you are sure that only the BIOS is running.
► Open the network 1 for PA 1 and network 2 to for PA 2.
► With the correct CAN ID and the BIOS commands, you can now write the correct board ID in the
EEPROM.
NOTICE
Always use the IDs which are shown in the subsystem control window, when you click on
GET VERSION or ACTIVATE IDs .
e.g. Head Processor
Gantry 1 --> 300
Gantry 2 --> 308
Gantry 3 --> 310
Gantry 4 --> 318.
Exception: If you don‘t received a message from a subsystem, so you can try to work with
"Standard ID‘s" e.g.Head processor:
Gantry 1 --> 304
Gantry 2 --> 30c
Gantry 3 --> 314
Gantry 4 --> 31c,
required when two board IDs are missing.
NOTICE
To write the board IDs with CAN commands, make sure that just the BIOS is running on the
TQM module.
Communication and Control
Board IDs Reading the Board IDs out of the EEPROM
145 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Read the board type ID Head interface

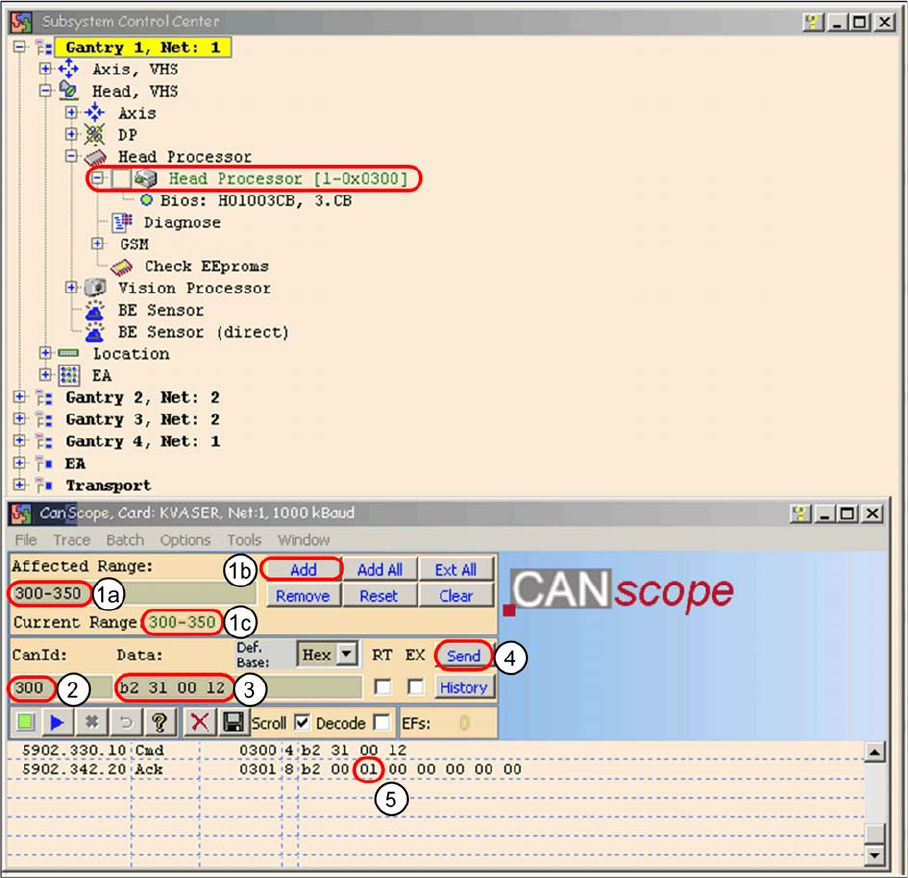

► (1) Restrict the address range for the CAN ID. Specify the smallest possible range at
Affected Range , This reduces the number of CAN telegrams shown in the network window.
► Confirm with Add
► The CAN ID range will now be shown at Current Range .
► (2) At CanID enter the relevant ID.
► (3) At Data enter the CAN command.
Example B2 31 00 12
b2 --> read EEPROM
31 --> read out from head interface
12 --> Storage location in EEPROM memory in hex
► (4) Select Send.
► (5) Command will be shown in the network window and an answer will be sent (acknowledge).
Ack B2 00 01 00 00 00 00 00 --> Storage location 12 is occupied with the value 01 = board ID
head interface.
► Write the correct board ID with the command B3 31 00 12 01
B3 --> write to EEPROM
31 --> head interface
