Energy and Compressed Air Supply Power Supply for Box PC Unit Power supply Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 160 DC/DC Converter in Main Power Supply 5.2.4.6 DC/DC Converter in Main Power Supply The two D…
Energy and Compressed Air Supply
Power supply Power supply
159 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Overview transformer 2

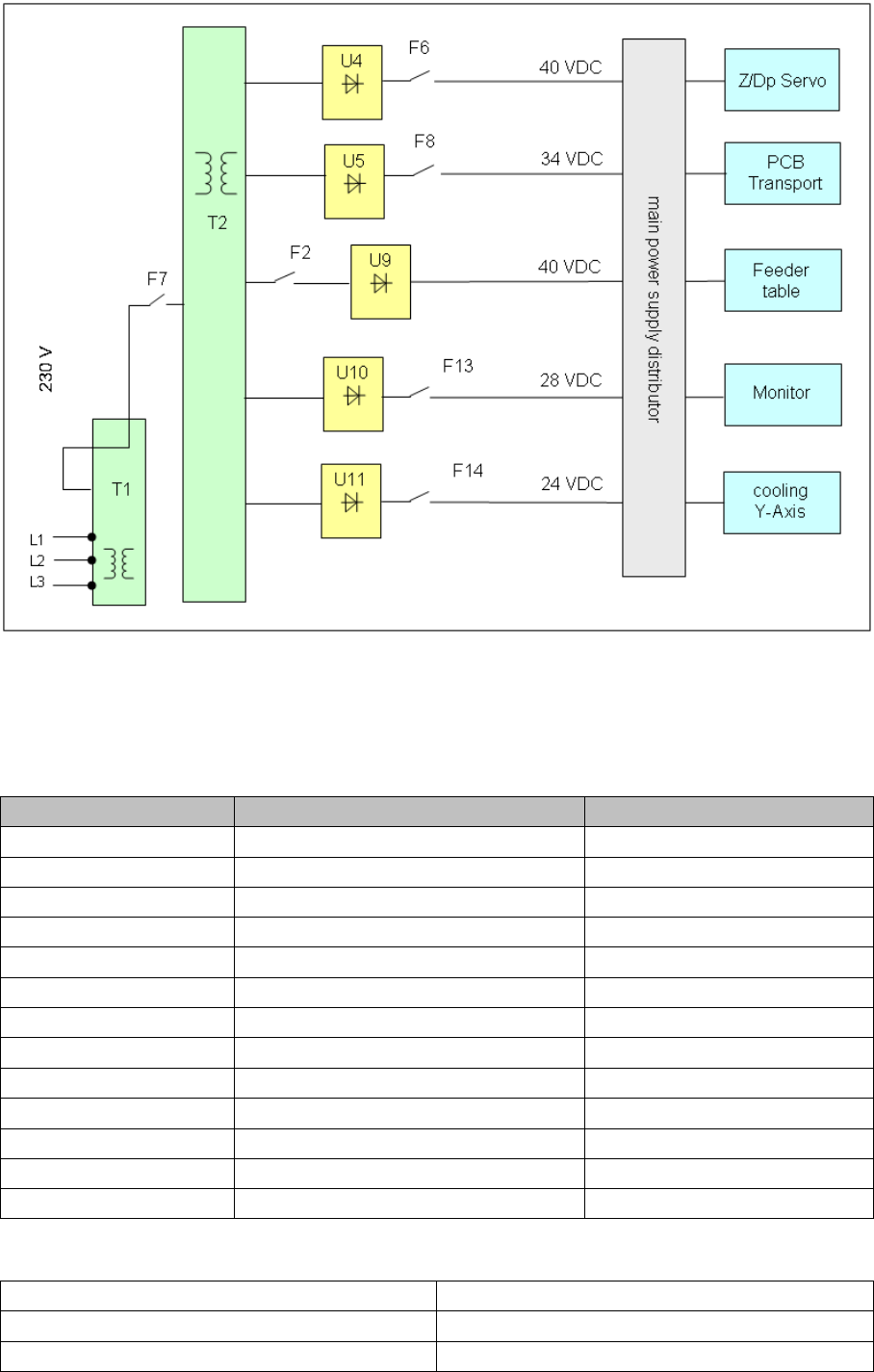

Voltages in the Power Supply U nit After Switc hing On
5.2.4.5 Voltages in the Power Supply Unit After Switching On
When the main switch is switched on, the following voltages are generated and may or may not be
switched (enabled, not enabled) through to the modules:
Voltages for the service socket
Voltages Module State
250 VDC X/Y servo unit not enabled
150 VDC servo unit not enabled
34 VDC PCB handling system not enabled
24 VDC tape cutter not enabled
34 VDC SZ1 main power inrush current enabled
52 VDC DC/DC converter main power supply enabled
48 VDC Illumination for all cameras enabled
52 VDC Supply to power fail board enabled
40 VDC Z/DP axes enabled
40 VDC Changeover table enabled
28 VDC monitor enabled
24 VDC fan enabled
230 or 115 or 240 VAC Service socket Independent of the main switch
230 VAC (Europe) Input 3 x 400 VAC
115 VAC (U. S. A.) Input 3 x 204 VAC
130 VAC (other) Input 3 x 230 VAC
Energy and Compressed Air Supply
Power Supply for Box PC Unit Power supply
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 160
DC/DC Converter in Main Power Supply
5.2.4.6 DC/DC Converter in Main Power Supply

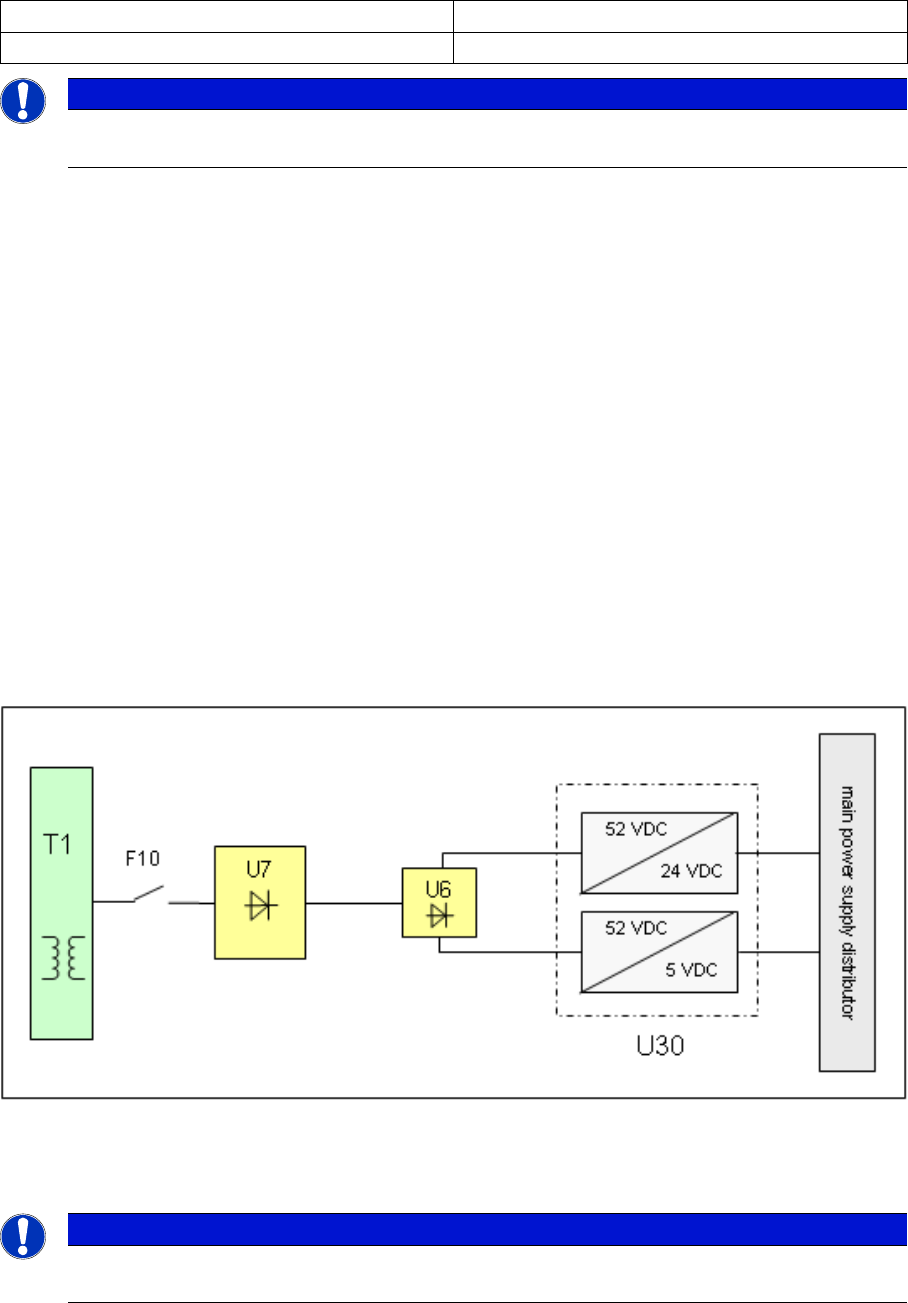

The two DC/DC converters U20 and U30 generate the +24 VDC and +5 VDC voltages, which are used
throughout the electrical system. These are located in the main power supply module.
DC/DC converter U20:
1. +24 VDC converted from 52 VDC is used for the following modules:
▪ Servo enable
▪ SSK relay K6
▪ Inrush current limiter servo
▪ General use of 24V supply throughout the machine
2. +24 VDC converted from 52 VDC used for the following modules:
▪ Fan for axis units
▪ PCB conveyor control board
DC/DC converter U30:
5 VDC voltage for the entire machine
DC/DC converter main power supply
Power Supply fo r Box PC Unit
5.2.5 Power Supply for Box PC Unit
220 VAC (other) Input 3 x 380 VAC
240 VAC (other) Input 3 x 415 VAC
NOTICE
The service socket can only be used if the placement system is connected to the main power
supply with a 5-conductor cable (L1, L2, L3, N, PE).
NOTICE

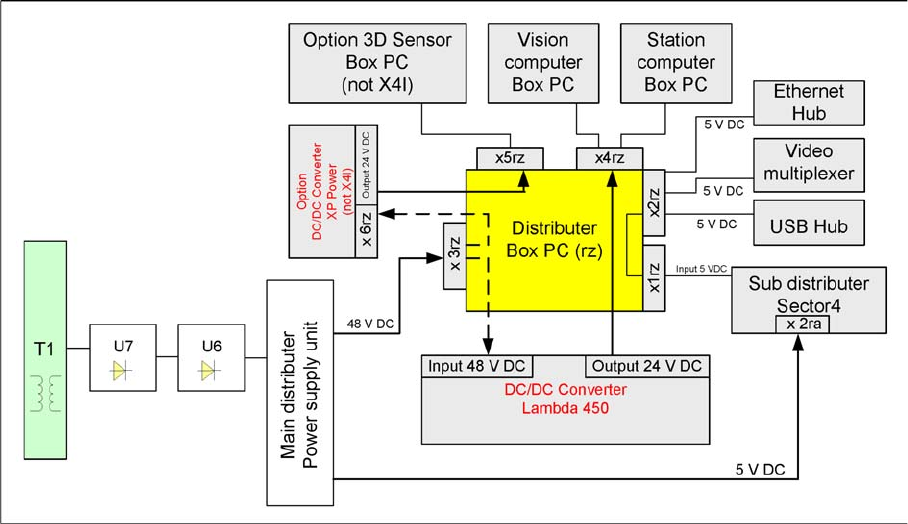

In machines with a box PC, the power is supplied directly by the main power supply unit, via a
DC/DC converter.
Energy and Compressed Air Supply
Power supply Power Supply for Axis Unit
161 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Power Supply for Axis Unit
5.2.6 Power Supply for Axis Unit
After switching on the main switch, the axis unit is supplied with power from the main power supply via
X13 with 52 VDC and the following voltages are generated:
The voltage supply +/-15 V and 5 V for the electrical connections in the axis unit is generated by the DC/
DC converters U20 and U30. This DC/DC converter generates the 5V and +/- 15V needed for the servo
board and the axis controller The +/-15 V is also needed at the placement heads and for the anti-crash
board (for machines up to axis card type A363). The voltage travels to the main distributor X4qa (sector
2) and then to terminal block X1qa and is distributed from there.
