C&P20A Parts Overview with Function Description Overview Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 220 Holding Circuit Holding Circuit Venturi block ▪ The venturi block consists of 2 0 small venturi nozzles i…
C&P20A
Overview Parts Overview with Function Description
219 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
C&P20A Head – E/D Transformer (Collector Ring)
C&P20A Head – E/D Transformer (Collector Ring)
Energy t ransmiss ion
Energy transmission
Comparison - E/D transformer
▪ The new E/D transformer consists of a stationary and
a rotating part.
The three sliding contacts (5) transmit the direct
current voltage (24V/4A).
▪ Communication, in other words the transmission of
CAN Bus signals, is contactless.
▪ Connector (1) (connection to intermediate distributor)
▪ The centering pin (2) fixes the stationary part (4) in
place.
▪ The rotating part (3) is fixed with five screws to the
star carrier. These can be loosened via the service
opening (6).
E/D transformer – energy transmission
▪ Two transmission leads are needed to transmit the
energy supply:
P24V (1) and GND (2).
▪ Another lead (sliding contact) connects the rotating
part and the housing ground (ESD protection (3)).
C&P20A
Parts Overview with Function Description Overview
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 220
Holding Circuit
Holding Circuit
Venturi block
▪ The venturi block consists of 20 small venturi nozzles
is located behind the silencer.
▪ Each venturi nozzle supplies one segment with
vacuum in the hold circuit.
▪ If a segment is in the pickup/placement circuit, the
holding circuit vacuum is increased (for pickup) or
eliminated via air blast (for placement).

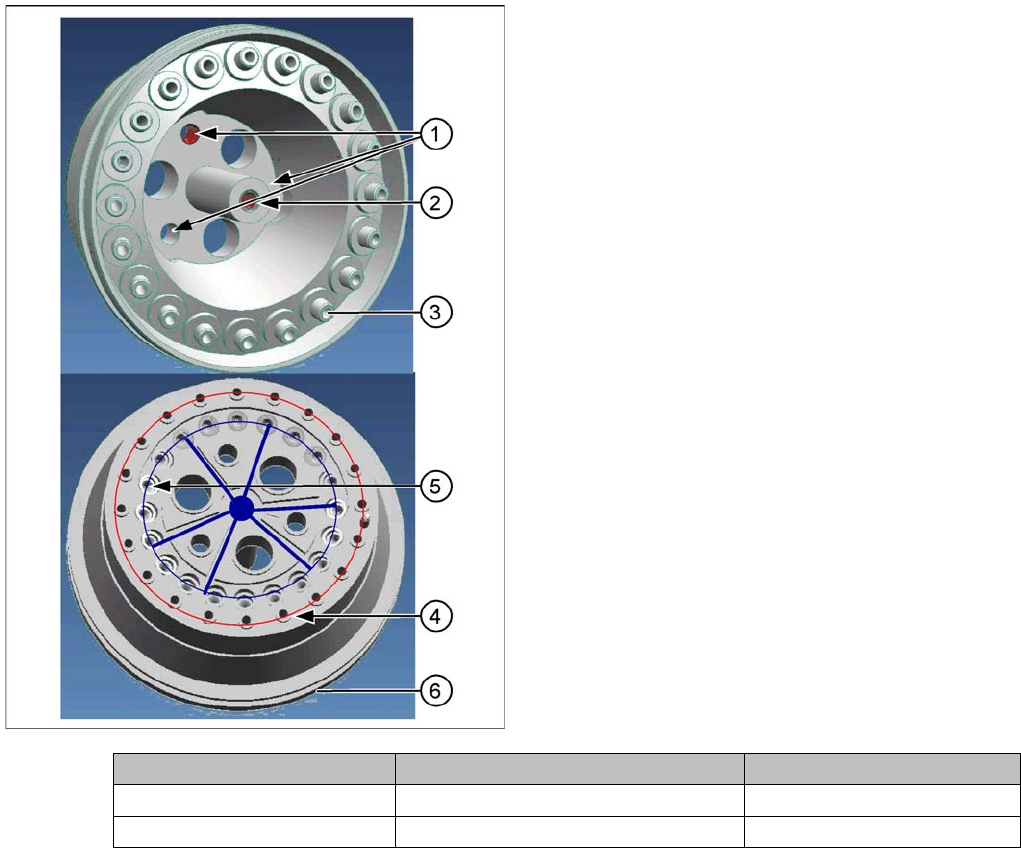

Legend
1. Fixture on star frame
2. Silencer fixtures
3. Venturi nozzle - discharged air to the silencer
4. Venturi nozzle - vacuum outlet to the segments
5. Compressed air inlet to the venturi nozzle -
The venturi nozzle inlets have seals.
6. O-ring between venturi block and silencer
Position Designation Item No.
1 Venturi block 03005122-0X
2 O-Ring (6) 03011347-0X
C&P20A
Overview Parts Overview with Function Description
221 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
DP drive
7.2.3.6 DP drive
DP Drive - F unction
DP Drive - Function
Measurement System with Hall Sensors – Function:
▪ The sensor detects the movement of ferromagnetic material (toothed wheel) through changes to the
magnetic flow.
▪ If one element is opposite a ferromagnetic tooth and another opposite a gap, this causes a one-sided
increase in induction.
▪ The difference arising between the two elements alters the polarity once the toothed wheel moves.
▪ This change is evaluated, digitized and used to address or give feedback in closed-loop control.
DP axis
The DP axis is responsible for turning the component into
the correct placement position within a set time. Vacuum
and air blast to the nozzle are provided via the hollow
shaft of the DP axis.
The complete DP drive can be replaced during service
work.

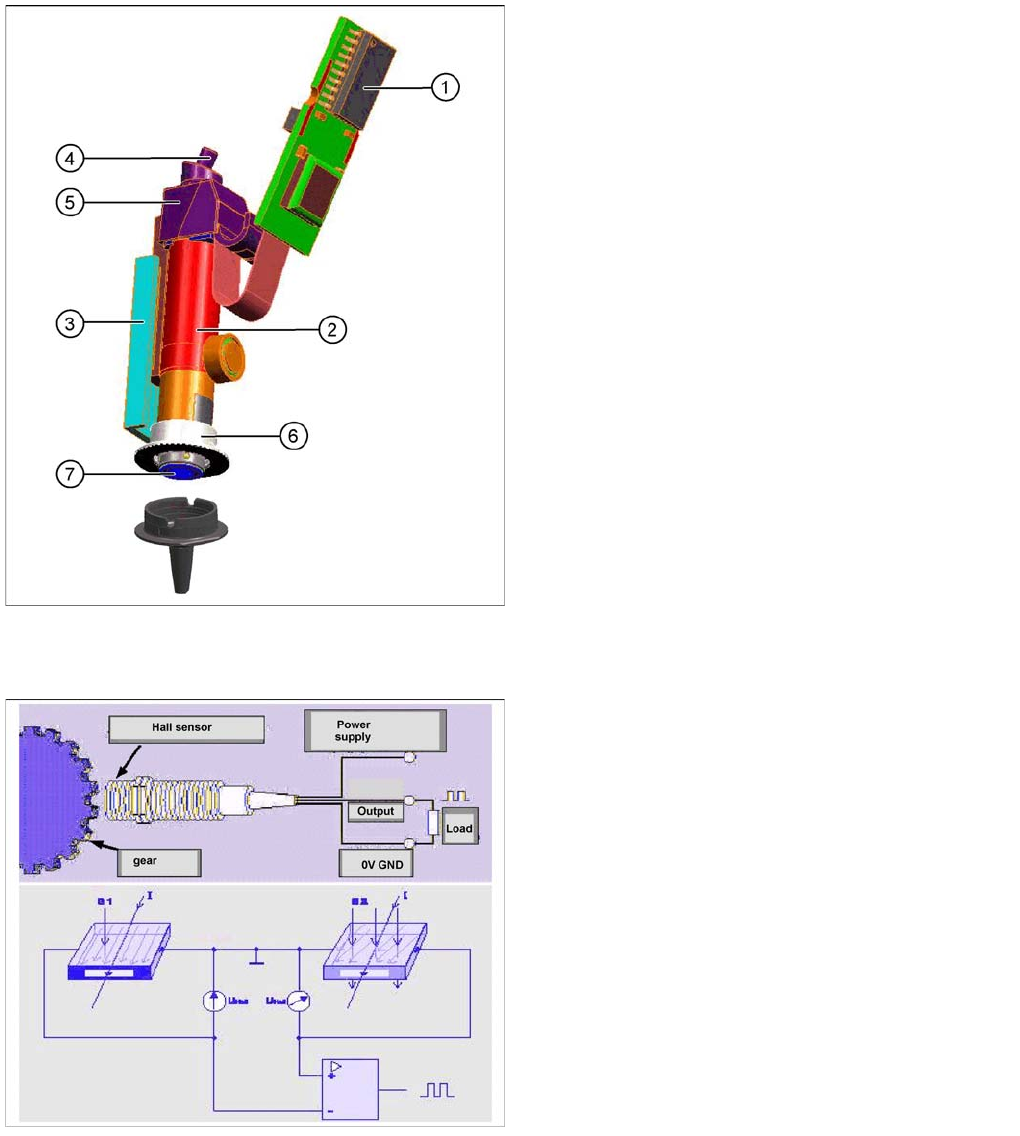

Legend
1. Control board for DP motor
2. Motor
3. Linear guide rails
4. Vacuum connection
5. Measuring system: resolution 72digits/°
6. Dead indexing plate
7. Filter disk
▪ The DP drives are controlled by the DP master, in
accordance with the counter pulse and set value
(pickup angle, placement angle and correction angle
after Vision).
▪ The DC motor is monitored by a measurement
system attached to the motor axis.
