Component Camera (Type 23 digital)
▪ The component camera is fixed to the C&P20A head
with 4 screws and can be replaced during service
work.
▪ Five levels are available for illuminating the
components.
▪ Visual field: 8.2 x 8.2 mm
▪ Resolution: 14.1 µm/pixels
▪ Component spectrum 01005-2220 max. 6 x 6 mm,
Bare Dies, Flip Chip
Legend
1. Lens system
2. Fixture to head housing
3. Camera amplifier
Nozzle Changer (optional)
▪ The nozzle changer has 6 magazines, each with 12
nozzle garages for individual configuration.
▪ A maximum of 2 nozzle changers can be installed per
C&P20A head.
(X4I: max. 1 nozzle changer, only 4 magazines at
locations 2/4)
▪ If the nozzle changer is backfitted, the height of the
nozzle changer needs to be checked with a caliper.
▪ Each magazine is recognized via a micro switch and
indicated by a green LED.
Legend
1. Remove magazine
2. Bracket to hold nozzle when placed down
CAUTION
► Please refer to and observe the instructions in the service guide for all maintenance and
service work on the C&P20A heads.
C&P20A
Overview Compressed Air Supply to the C&P20A
225 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Compressed A ir Supply to the C&P20A
7.2.5 Compressed Air Supply to the C&P20A
C&P20A compressed air distributor
Legend
1. Rear view of the pneumatic distributor
Input:
- 7 fold pneumatic hose (PK 6)
- 2 fold pneumatic hose
- Optional vacuum pump (PK 10)
2. Front view of the pneumatic distributorOutput:C&P20
head
3. Pressure control valve
4. Return cylinder
5. Holding circuit
C&P20A
Compressed Air Supply to the C&P20A Overview
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 226
Overview of A ir Blast Supply
7.2.5.1 Overview of Air Blast Supply

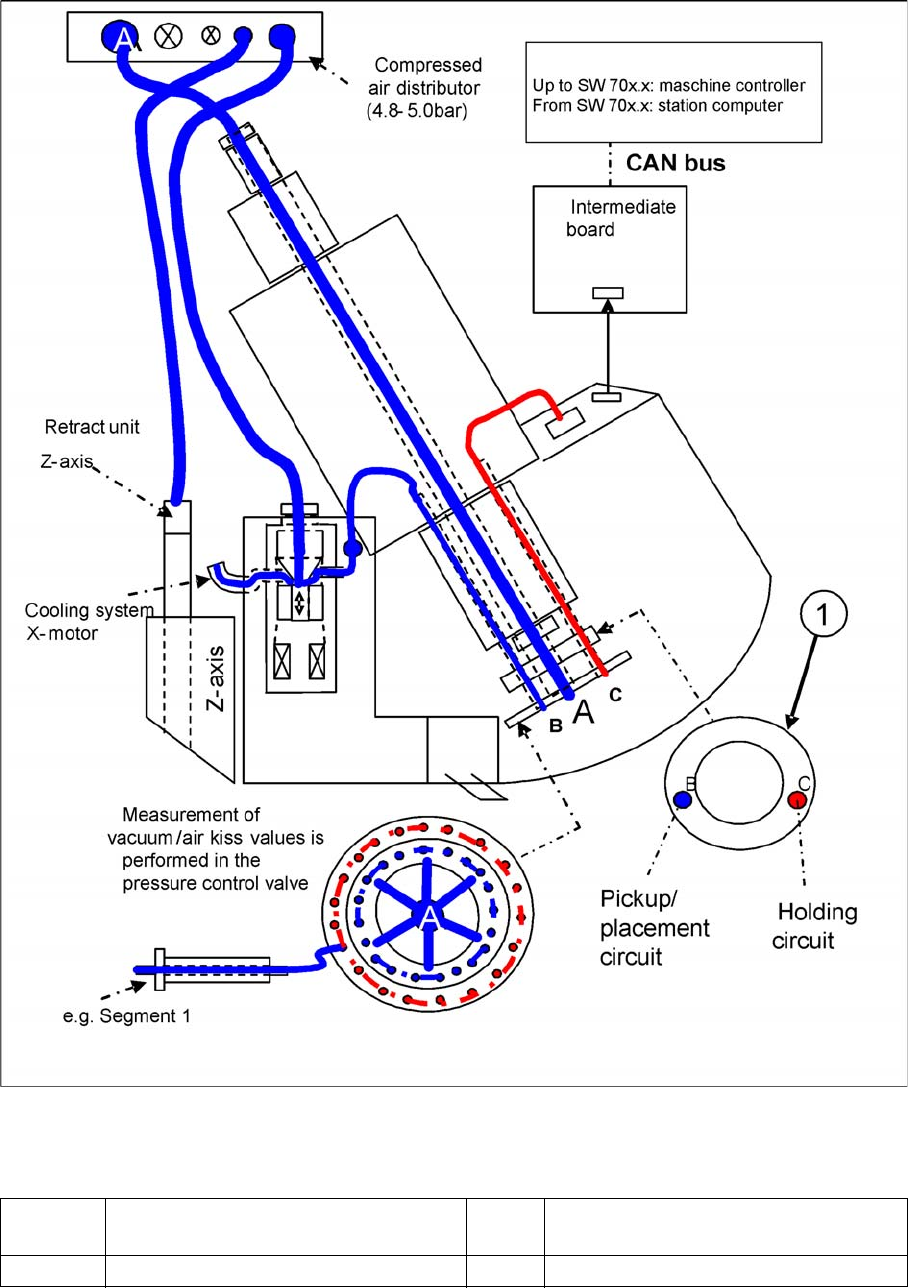

General overview of the air blast function
Legend
RED Vacuum 1 Smoothed distributor disc [03008286-
0X]
BLUE Compressed air (air blast)
