Operational Safety Warning Labels Warning Label W205 on the Tape Cutter 27 Student Guide SIPLACE X-Serie and X4I SW70x (AL2) Warning la bel W205 on the cross b ar below th e tape cutter 2.2.3.4 Warning label W205 on the …
Operational Safety
Warning Label W205 on the Tape Cutter Warning Labels
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 26
Warning Label W205 on th e Waste S lide (X- Series)
2.2.3.3 Warning Label W205 on the Waste Slide (X-Series)

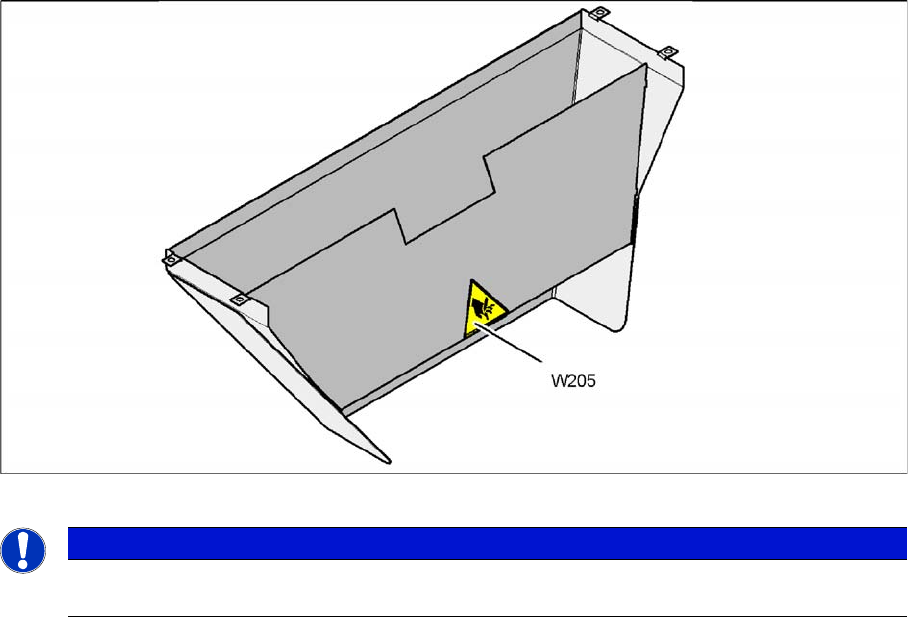

Warning label W205 on the waste slide
NOTICE
The position of the waste slide is shown in "2.2.3.4 Warning label W205 on the cross bar below
the tape cutter" [ ➙ 27].
Operational Safety
Warning Labels Warning Label W205 on the Tape Cutter
27 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Warning la bel W205 on the cross b ar below th e tape cutter
2.2.3.4 Warning label W205 on the cross bar below the tape cutter

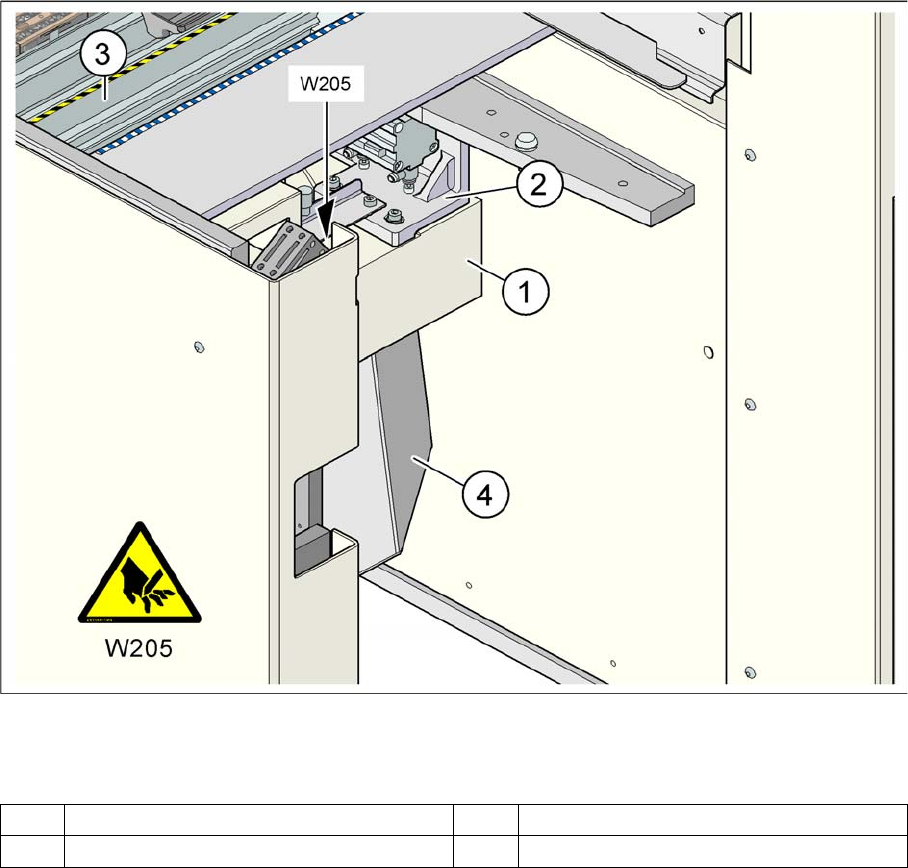

Warning label W205 on the cross bar below the tape cutter
Legend
W205, article no. 03009344-01 on the cross bars (quantity per machine: 4)
1 Cross bar 3 Empty tape duct
2 Tape cutter 4 Waste slide
Operational Safety
Warning strips on the empty tape duct Warning Labels
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 28
Warning strips on the empty tape duct
2.2.4 Warning strips on the empty tape duct
Warning strips on the empty tape duct
Warning label W206 and W1 on the power supp ly unit
2.2.5 Warning label W206 and W1 on the power supply unit
WARNING
Never reach into the opening in the empty tape duct.
NOTICE
The position of the empty tape duct is shown in "2.2.3.4 Warning label W205 on the cross bar
below the tape cutter" [ ➙ 27].
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off. Disconnect
the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
Item no. 03009345-01 (quantity per machine: 2) and W1
