Collect, Pick and Place Head (CPP) Nozzle Types Nozzle Station X4I for CPP Head 315 Student Guide SIPLACE X-Serie and X4I SW70x (AL2) ▪ Take off for 28xx nozzles Reject bins Componen ts and n ozzles can be re jec ted int…
Collect, Pick and Place Head (CPP)
Structure of 20xx Nozzle Magazines Nozzle Magazines
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 314
– 10xx magazine (C&P20A): Switch 2 (middle) activated
– 20xx magazine (CPP): Switch 1 and 3 activated
– 28xx magazine (CPP): Switch 1, 2 and 3 activated
Nozzle Magazines
8.7 Nozzle Magazines
Structure of 20xx Nozzle Magazines
8.7.1 Structure of 20xx Nozzle Magazines
Structure of 28xx Nozzle Magazines
8.7.2 Structure of 28xx Nozzle Magazines
Nozzle Statio ns
8.8 Nozzle Stations
Universal Nozzle Station for SX and X Series (X2, X3, X4 )
8.8.1 Universal Nozzle Station for SX and X Series (X2, X3, X4)
Nozzle station
The C&P20A nozzle station has been extended to include nozzle types for the CPP head:
▪ Reject station for C&P20A and CPP nozzles
▪ Take off for 20xx nozzles
▪ 12 garages per magazine
▪ Antirotation guard for nozzles
▪ Special nozzles up to a max. length of 16.5 mm
▪ Two fiducials per magazine

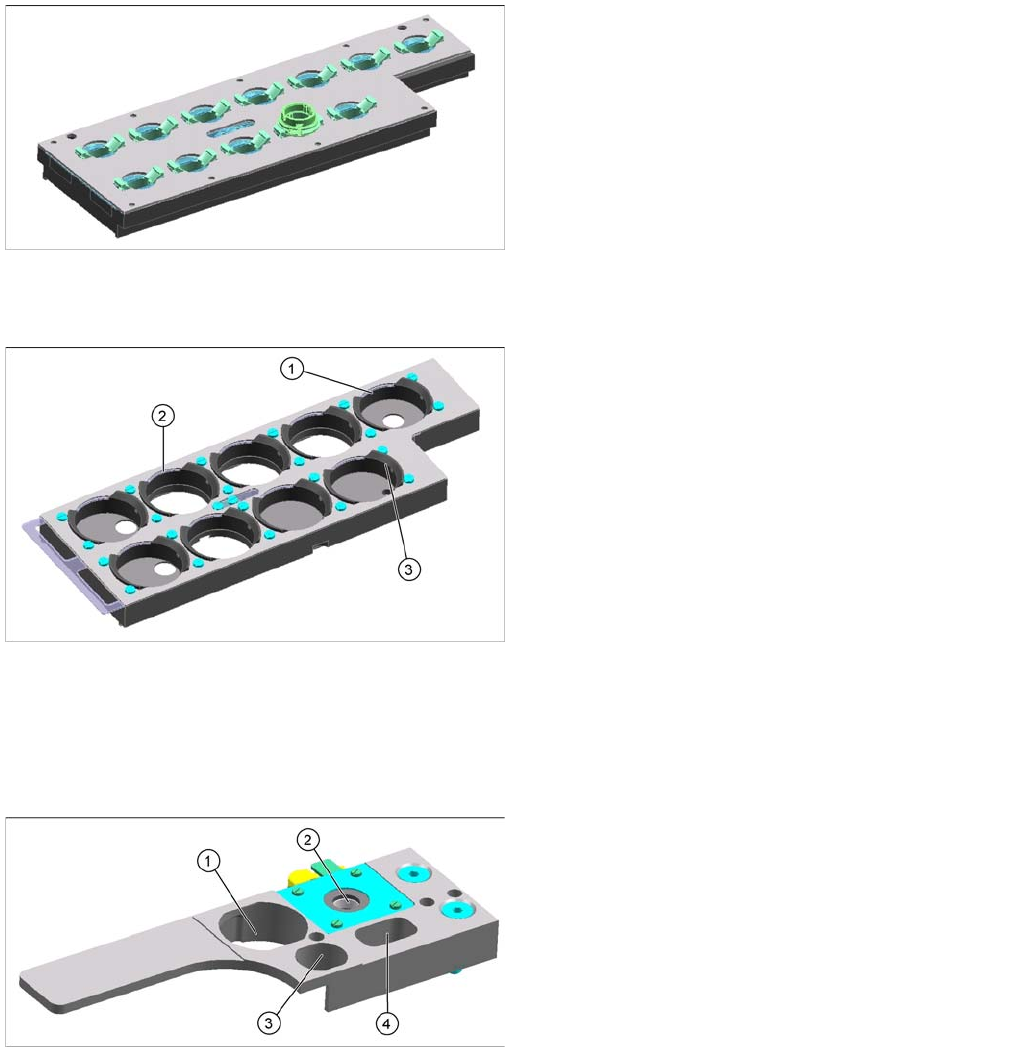

Legend
1. Five garages for nozzles with a length of up to
12.5 mm (garages 1, 5, 6, 8, 9)
2. Four garages for special nozzles with a length of up
to 16.5 mm (garages 2, 3, 4, 7)
3. Level surface – this is used by special nozzles for
orientation purposes, when they are nonsymmetrical.
The standard 28xx nozzles are symmetrical.
▪ Antirotation guard for nozzles
▪ Two fiducials per magazine
Legend
1. Take off for 28xx nozzles
2. Reject station for C&P20A and CPP nozzles
3. Take off for 20xx nozzles
4. Take off for 10xx nozzles
Collect, Pick and Place Head (CPP)
Nozzle Types Nozzle Station X4I for CPP Head
315 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
▪ Take off for 28xx nozzles
Reject bins
Components and nozzles can be rejected into the following reject bin:
▪ Reject channel for component size: Up to 6x6 mm
▪ Reject bin in the nozzle station:
– All nozzle types (10xx, 20xx and 28xx nozzles)
– Component size: 6x6 to 27x27 mm
▪ Reject bin together with stationary camera
– Component size: Larger than 27x27 mm
Nozzle Statio n X4I for CPP Hea d
8.8.2 Nozzle Station X4I for CPP Head
Nozzle Types
8.9 Nozzle Types
The wide component spectrum available for the CPP heads means that two different nozzle series are
needed: 20xx and 28xx.
Legend
1. Take off for 20xx nozzles
2. Take off for 28xx nozzles
3. Reject station for CPP nozzles
Nozzle type Component types Comments
2003 0402
2004 0603, 0805, 1206
2005 01005
2006 0201
2007 0402, 0603
2014 0603, 0805, 1206
2020 PLCC Height: Smaller than 0.75 mm
2021 PLCC Height: Smaller than 4.75 mm
2032 Mini melf, diodes
2033 1206, tantal
2034 Maxi melf, diodes
2035 Tantal C, SO
2036 Mini melf, diodes
2037 SO
2038 Al. Kond.
2039 Al. Kond.
2057 Calibration nozzle
2817 SOX Larger than 0.75 mm, smaller than 4.5 mm
2820 PLCC
2821 PLCC Larger than 4.25 mm, smaller than 8.25 mm
