Operational Safety Warning Labels Warning Label W211 on the CEKON Plug 33 Student Guide SIPLACE X-Serie and X4I SW70x (AL2) Warning label W209 on the emerge ncy stop buttons W209, article n o. 03009349-01 Warning Label W…
Operational Safety
Warning label W209 on the emergency stop buttons Warning Labels
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 32
Warning label W208 "laser class 2" on the PCB conveyor
W208, article no. 03009347-01
Warning label W209 on the emergency stop buttons
2.2.9 Warning label W209 on the emergency stop buttons
For Australia, Canada, Mexico and USA, warning label W209 is
affixed to the extension kit instead of the yellow ring on the
emergency stop buttons.
Item no. 03009349-01 (quantity per machine: 2)
Operational Safety
Warning Labels Warning Label W211 on the CEKON Plug
33 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Warning label W209 on the emergency stop buttons
W209, article no. 03009349-01

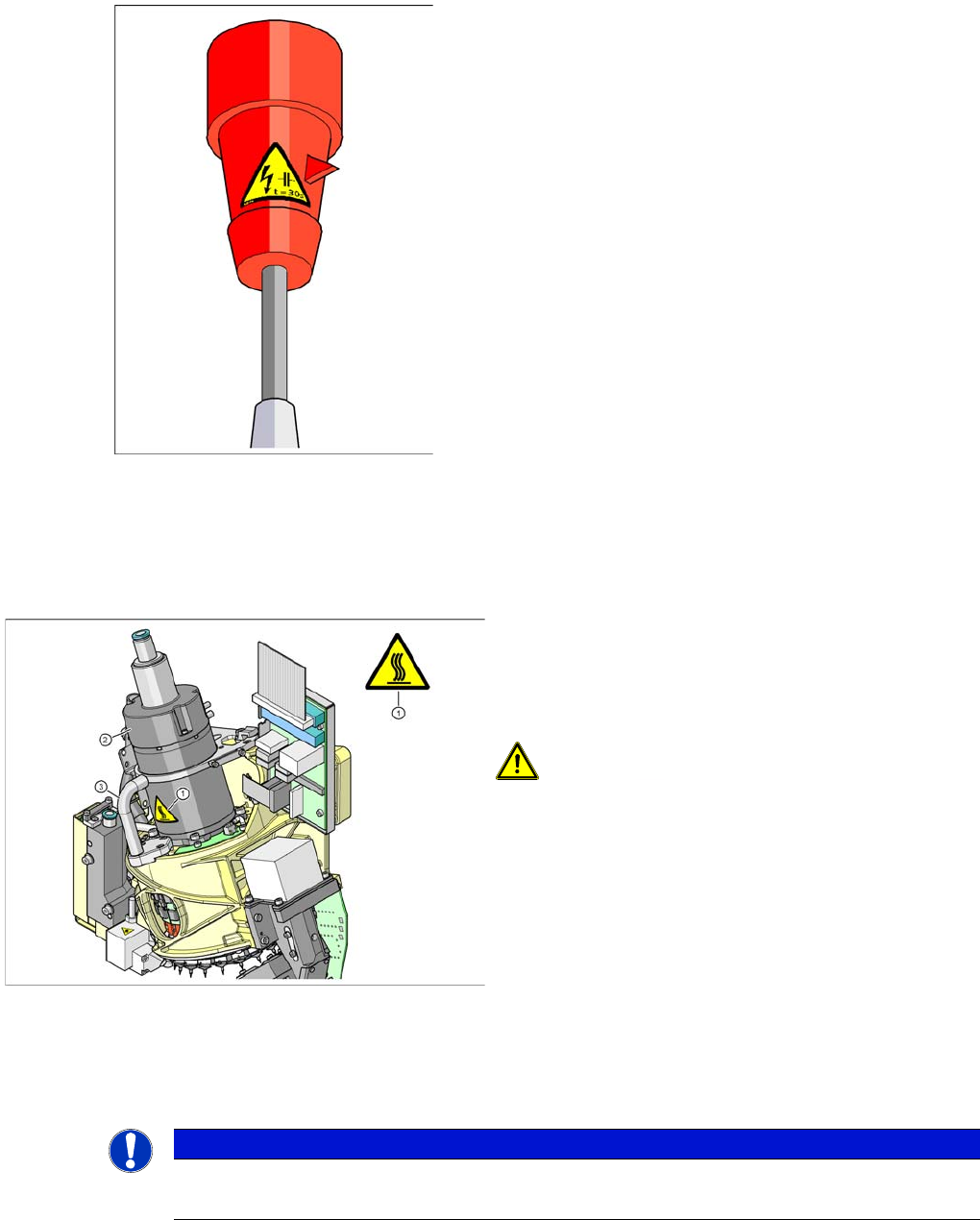

Warning Label W211 on the CEKON Plug
2.2.10 Warning Label W211 on the CEKON Plug
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains
to allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious
injury. Avoid contact with power plug and/or wire ends for 30 seconds
(quantity per machine: 1)
Operational Safety
Safety Instructions for C&P20A Head Safety Instructions for Operating the Machine
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 34
Safety Instruc tions for Ope rating the Mac hine
2.3 Safety Instructions for Operating the Machine
Safety Instruc tions for C&P20A Head
2.3.1 Safety Instructions for C&P20A Head
Safety Instr uctions for th e Twin Head
2.3.2 Safety Instructions for the Twin Head
Item no. 03009351-01
High temperatures on C&P20A head during continuous
operation
Temperature warning label for C&P20A head
1. Temperature information label [03031926-01]
2. Star motor housing
3. Handle
CAUTION! HIGH TEMPERATURES
The star motor housing and the handle on the placement
head can develop high surface temperatures during
continuous operation or when the ambient temperature
exceeds 22° C. Take care when touching parts.
NOTICE
Twin Head
Twin Heads are not used on X4I machines.
